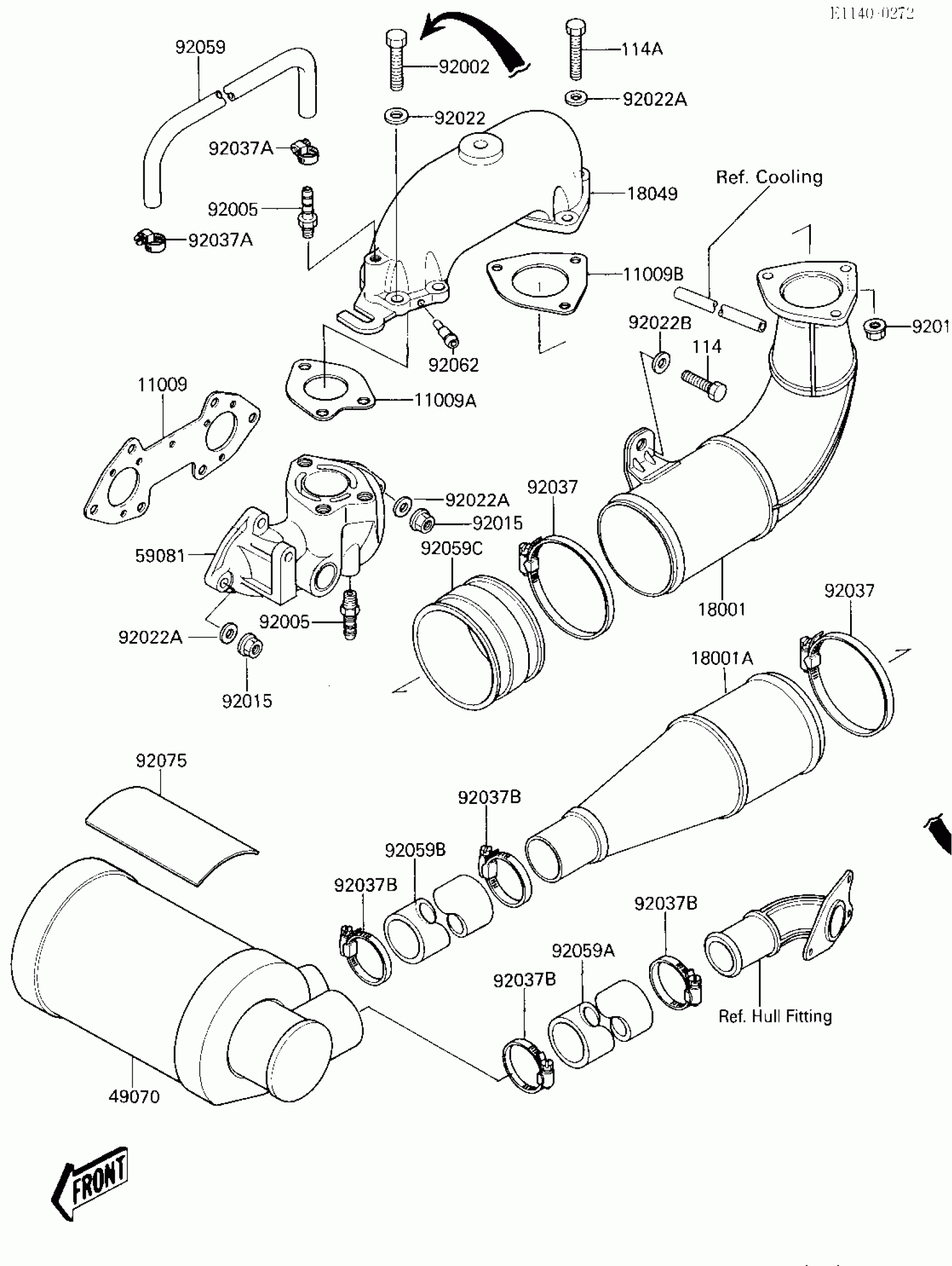

Kawasaki X2 MUFFLER (JF650-A1) Diagram
#
Description
Price
11009
GASKET,EXHAUST MANIFOLD
11009-3722
Unavailable
11009A
GASKET,EXHAUST PIPE
11060-3725
$25.06
11009B
GASKET,MUFFLER
11009-3724
Unavailable
18001
MUFFLER,TUNED
18001-3715
$324.00
18001A
MUFFLER,BODY
18001-3716
$157.38
18049
PIPE-EXHAUST
18049-3710
$217.04
49070
MUFFLER-COMP
49070-3711
$119.60
59081
MANIFOLD-EXHAUST
59081-3705
Unavailable
92002
BOLT
92002-3746
$6.72
92005
FITTING,HOSE
92005-3001
$10.88
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92022
WASHER,10.2X20X1.5
92022-3742
$4.18
92022A
WASHER,8.2X18X1.5
92022-1964
$4.18
92022B
WASHER,8.4X23X2.5
92022-3744
$4.18
92037
CLAMP,MAX120.7MM
92037-3733
$13.94
92037A
CLAMP
92037-504
$13.67
92037B
CLAMP
92037-509
$5.58
92059
TUBE,9X190
92059-3021
Unavailable
92059A
TUBE
92059-3754
$28.78
92059B
TUBE
92059-3762
$20.16
92059C
TUBE,MUFFLER CONNECTING
92059-3767
$54.26
92062
NOZZLE
92062-3705
$8.44
92075
DAMPER,MUFFLER
92075-522
Unavailable
114
BOLT-SMALL
114R0825
$2.66
114A
BOLT-SMALL,8X35
114R0835
$4.32
