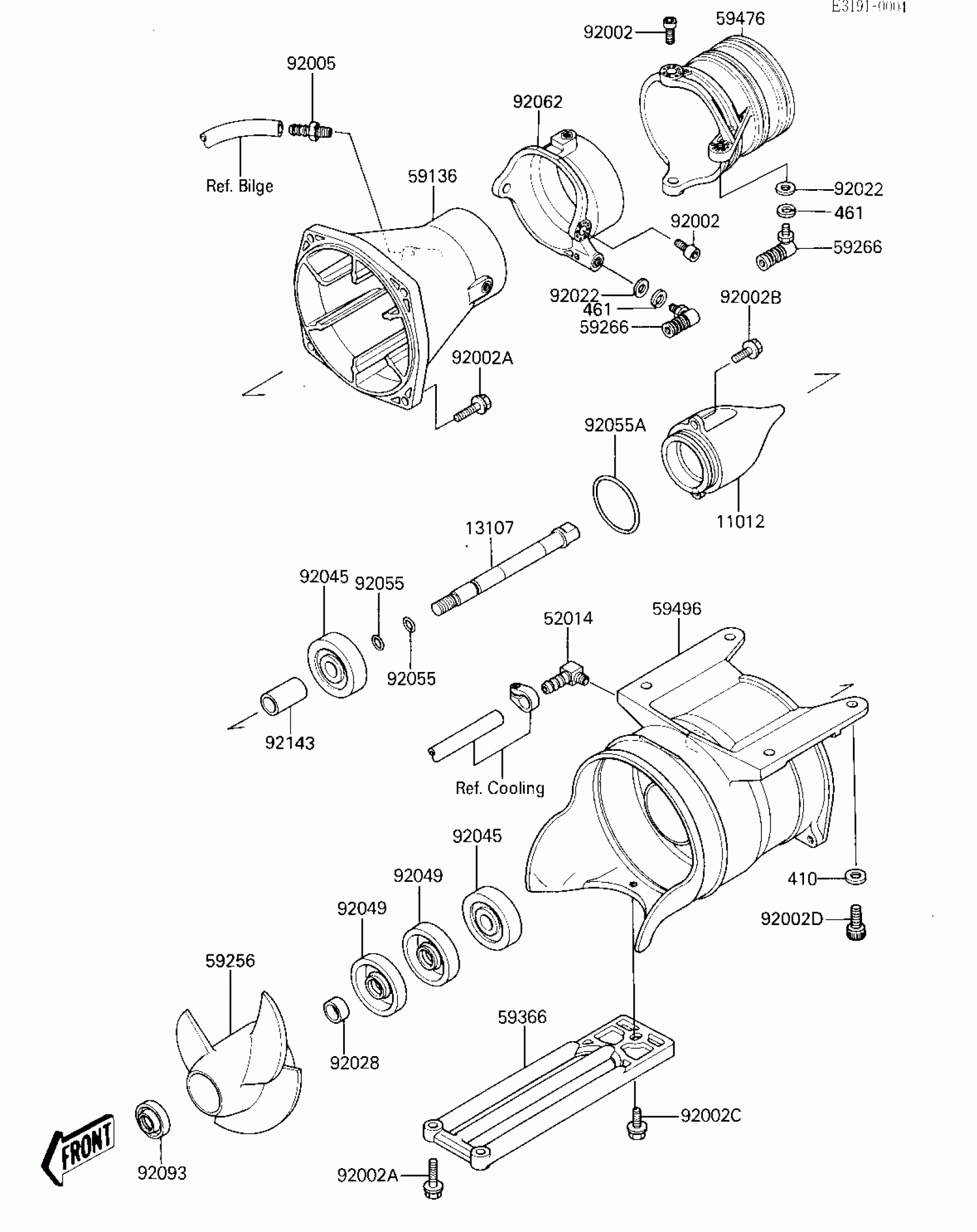

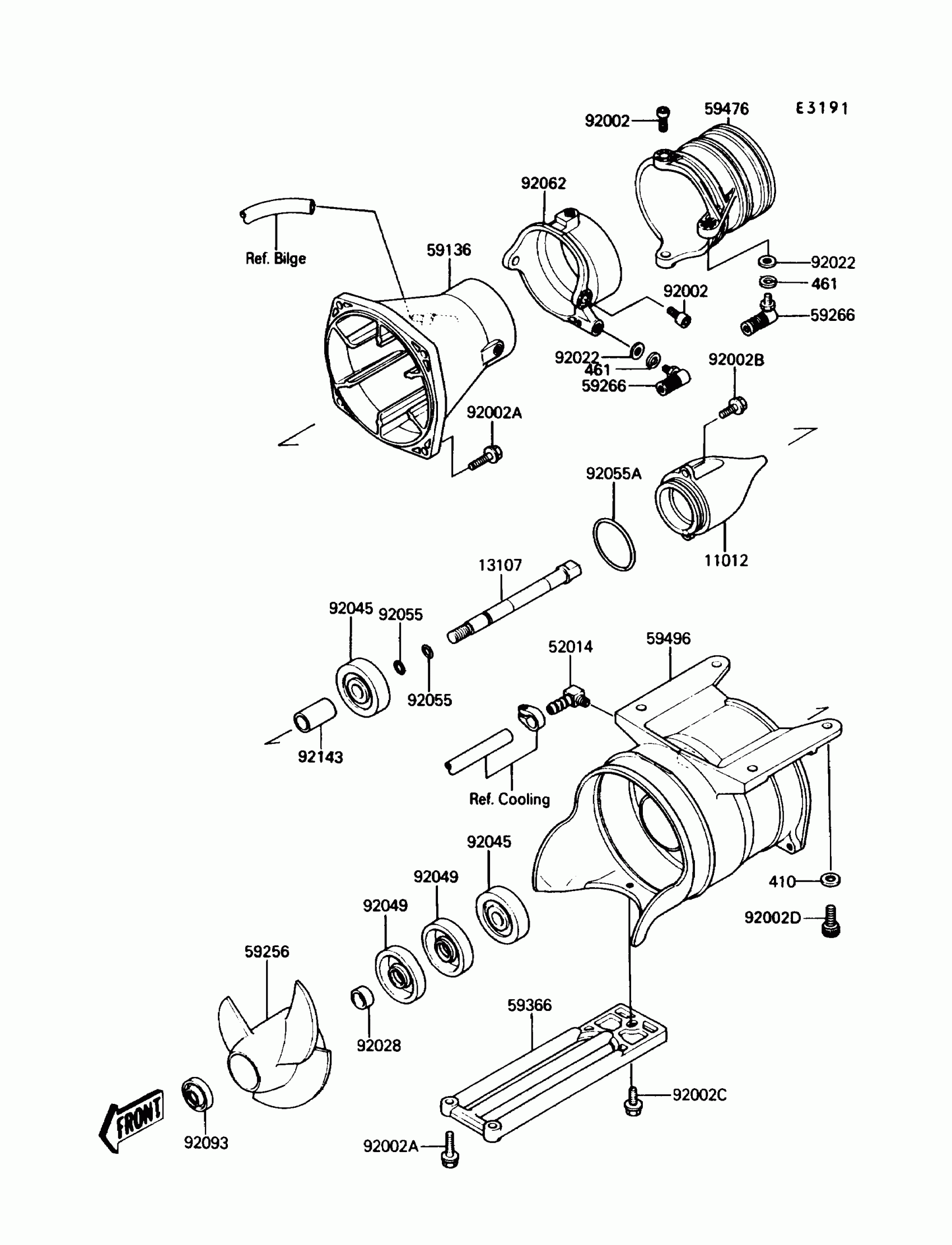

Kawasaki X2 JET PUMP Diagram

#

Description
Price

11012

CAP,JET PUMP

11012-3712

$58.91

13107

SHAFT,JET PUMP

13107-3721

$77.79

52014

ELBOW

52014-3002

$34.82

59136

NOZZLE-PUMP

59136-3712

$165.27

59256

IMPELLER

59256-3705

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3702

$47.27

59476

NOZZLE-STRG

59476-3701

$75.02

59496

VANE-GUIDE

59496-3701

Unavailable

92002

BOLT,SOCKET,6X11

92001-3701

$14.67

92002A

BOLT,6X25

92002-3714

$5.00

92002B

BOLT,6X16

92002-3728

$4.69

92002C

BOLT,6X12

92002-3763

$4.69

92002D

UNAVAILABLE IN PRICE BOOK

42002-3771

Unavailable

92005

FITTING,HOSE

92005-3001

$10.88

92022

WASHER

92022-567

$2.67

92028

BUSHING,17X25X15

92028-3717

$34.49

92045

BEARING-BALL,#63032RD

92045-3706

$39.98

92049

SEAL-OIL,TCV-25476

92049-3711

$8.12

92055

RING-O,13X1.9

92055-1021

$7.62

92055A

RING-O

92055-3706

$4.45

92062

NOZZLE

92062-3706

Unavailable

92093

SEAL

92093-3702

Unavailable

92143

COLLAR,17.4X25.4X53

92143-3708

$24.05

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

461

WASHER-SPRING,6MM

461S0600

$1.07
