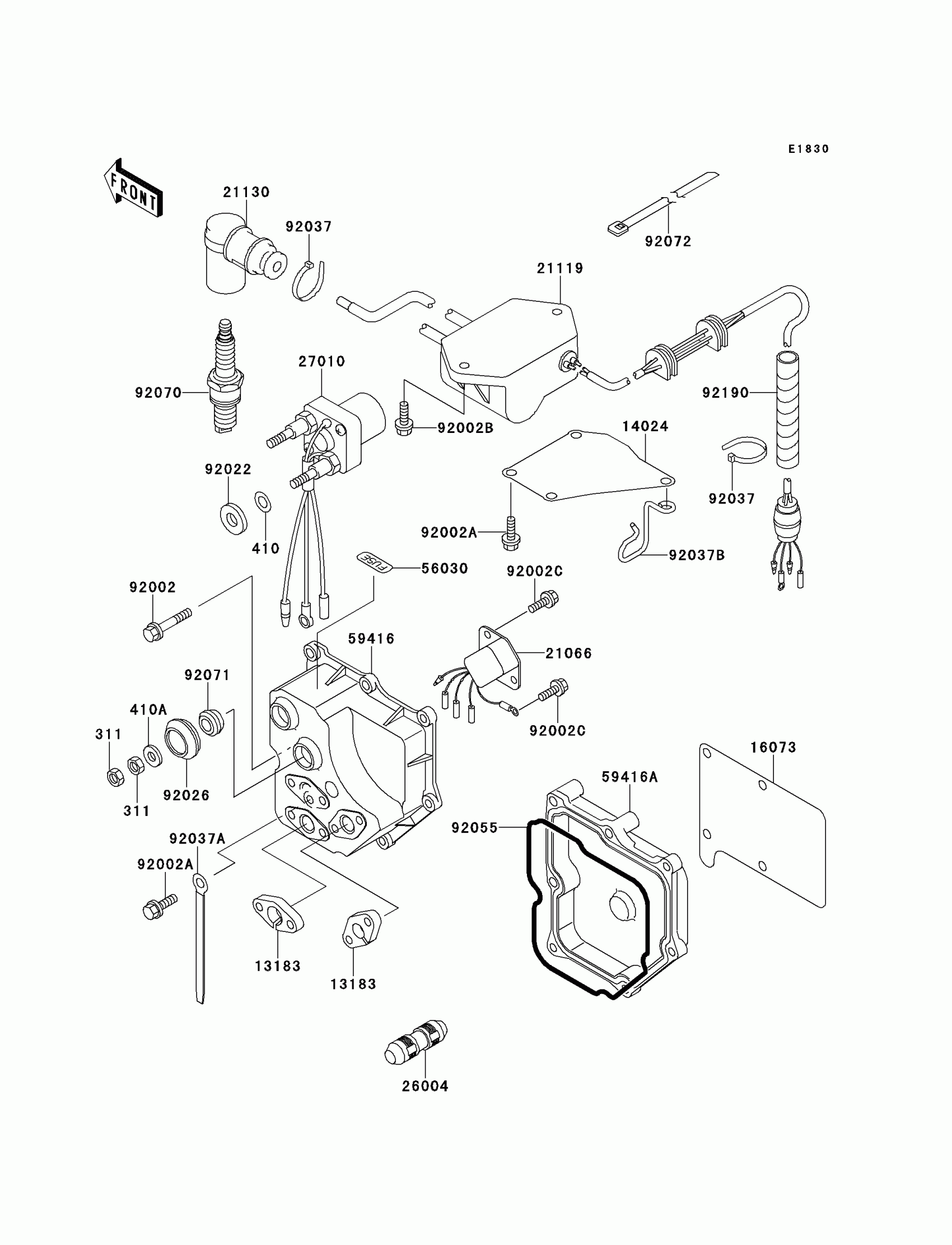

Kawasaki X2 Ignition System Diagram

#

Description
Price

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

13183

PLATE

13183-3712

Unavailable

14024

COVER,VOLTAGE REGULATOR

14024-3799

Unavailable

16073

INSULATOR

16073-3703

Unavailable

21066

REGULATOR-VOLTAGE

21066-3708

Unavailable

21119

IGNITER

21119-3725

Unavailable

21130

CAP-SPARK PLUG

21130-3706

$52.27

26004

FUSE-ASSY

26004-3711

$55.72

27010

SWITCH,STARTER RELAY

27010-3724

$115.46

56030

LABEL,FUSE

56030-3792

$5.60

59416

CASE-ELECTRIC

59416-3721

Unavailable

59416A

CASE-ELECTRIC

59416-3722

Unavailable

92002

BOLT,6X40

92002-3716

$5.52

92002A

BOLT,6X16

92002-3728

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92002C

BOLT,6X12

92002-3763

$4.69

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,L=100

92037-3736

$5.52

92037B

CLAMP

92037-3739

Unavailable

92055

"O" RING,MAGNETO BASE

92055-1006

Unavailable

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

Unavailable

92071

GROMMET

92071-3004

$3.99

92072

BAND,L=188

92072-1239

$1.73

92190

TUBE,12X15X90

92190-3805

Unavailable
