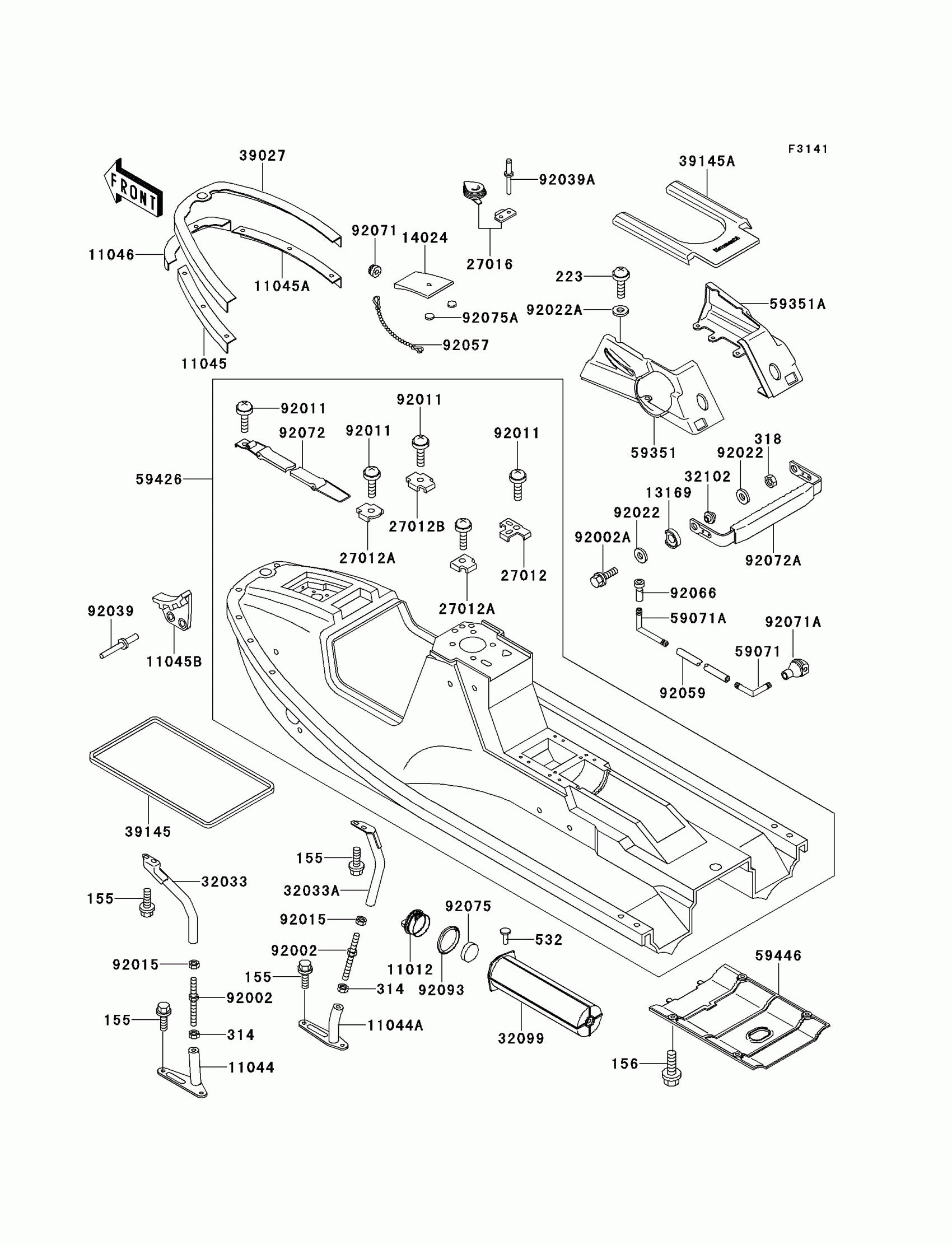

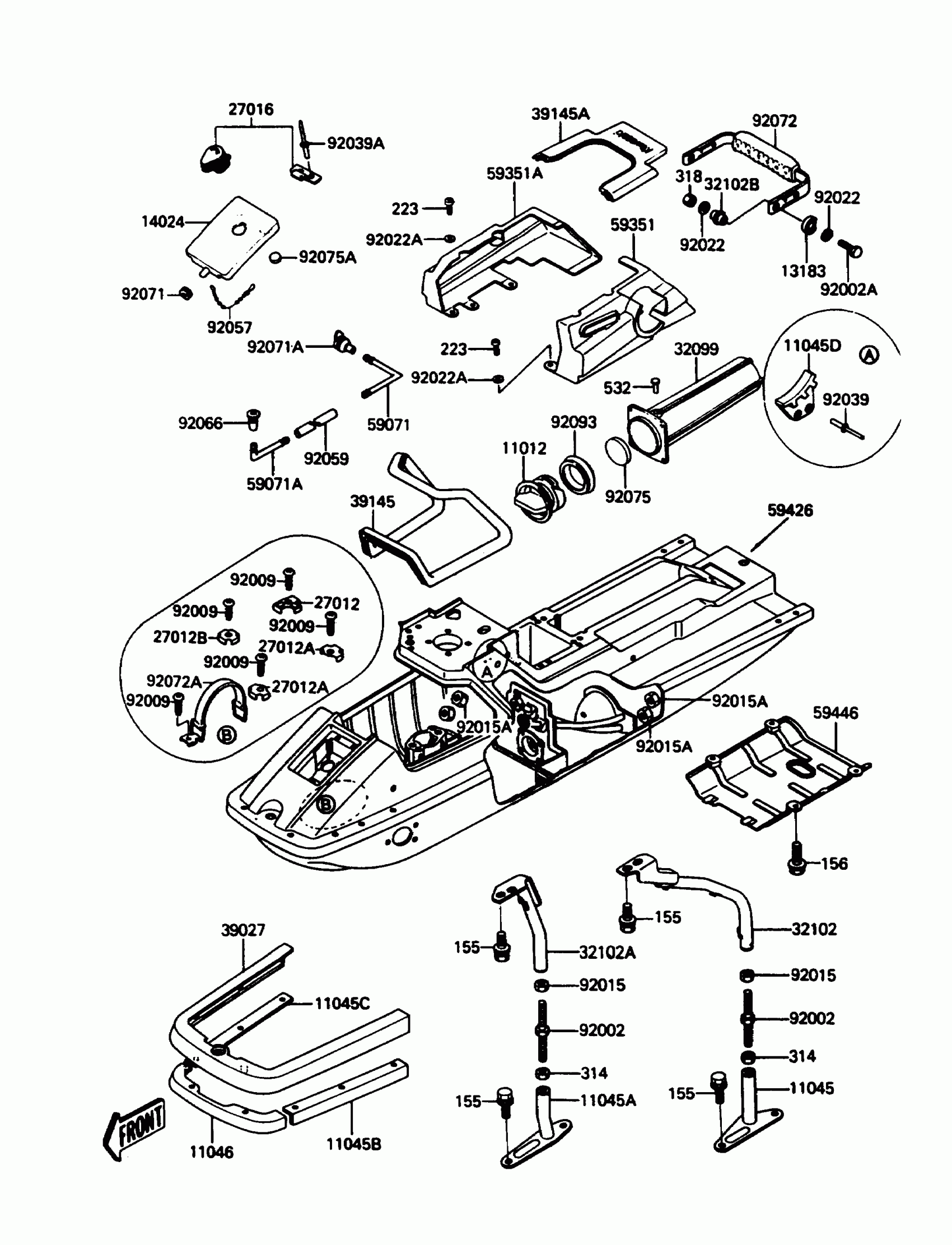

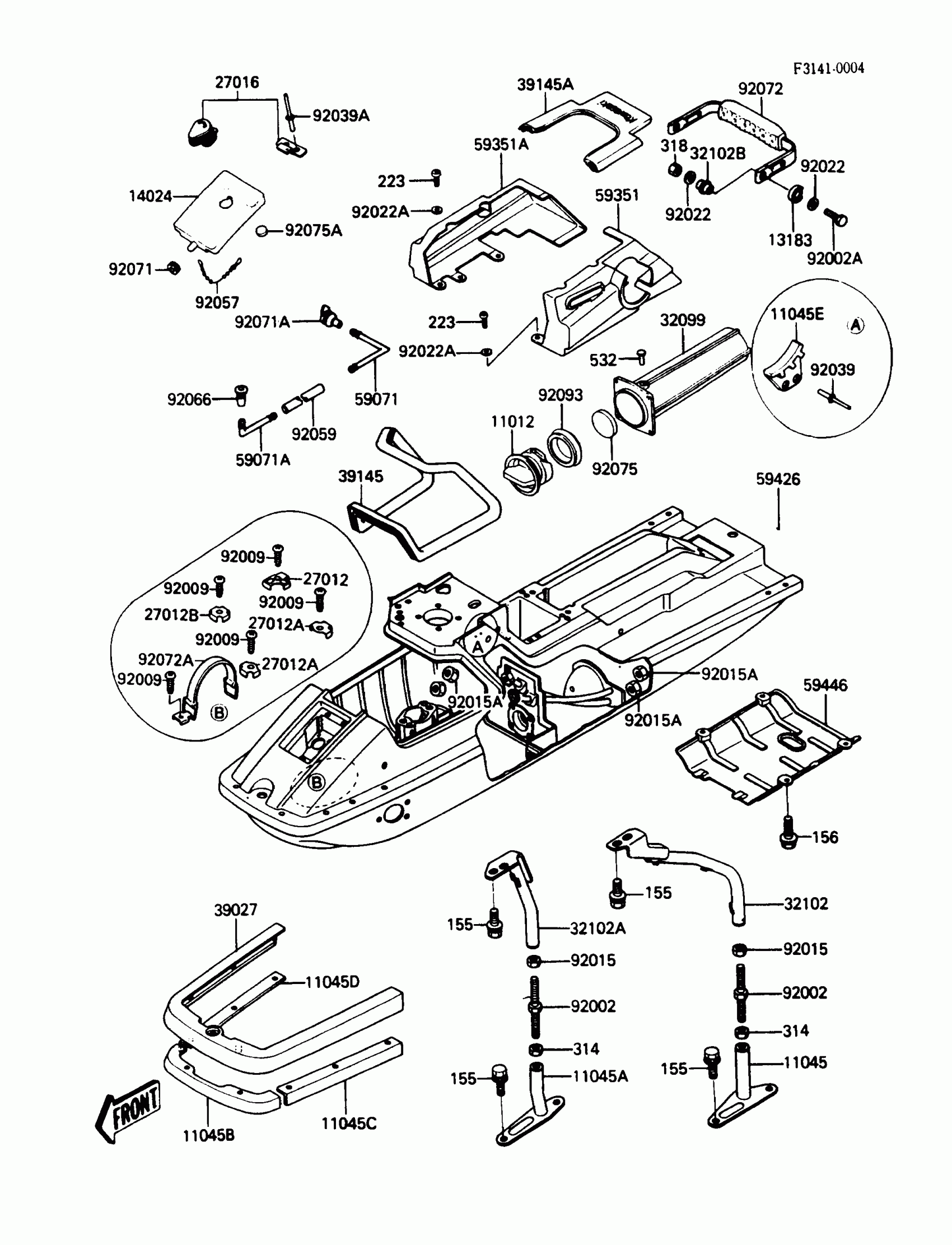

Kawasaki X2 Hull Diagram

#

Description
Price

11012

CAP

11012-3708

$9.10

11044

BRACKET,DECK,LH

11044-3710

Unavailable

11044A

BRACKET,DECK,RH

11044-3711

Unavailable

11045

BRACKET,BUMPER,LH

11045-3711

Unavailable

11045A

BRACKET,BUMPER,RH

11045-3712

Unavailable

11045B

BRACKET

11045-3755

Unavailable

11046

BRACKET,BUMPER,CNT

11046-3818

Unavailable

13169

PLATE

13169-3714

Unavailable

14024

COVER,TANK CAP,JET WHITE

14024-3731-8C

$23.12

27012

HOOK

27012-3705

Unavailable

27012A

HOOK

27012-501

Unavailable

27012B

HOOK

27012-502

Unavailable

27016

LOCK-ASSY,TANK CAP COVER

27016-3705

Unavailable

32033

PIPE,DECK,LH

32033-3718

$148.59

32033A

PIPE,DECK,RH

32033-3719

Unavailable

32099

CASE,FIRE EXT.

32099-3705

Unavailable

32102

PIPE

32102-3704

Unavailable

39027

BUMPER-FRONT

39027-3728

Unavailable

39145

TRIM-SEAL

39145-3726

$110.83

39145A

TRIM-SEAL,DECK

39145-3740

Unavailable

59071

JOINT

59071-3706

$9.32

59071A

JOINT

59071-3733

Unavailable

59351

DECK,LH,JET WHITE

59351-3708-8C

Unavailable

59351A

DECK,RH,JET WHITE

59351-3709-8C

Unavailable

59426

HULL-COMP,J.WHITE

59426-3816-8C

$1,490.76

59446

COVER-JET PUMP

59446-3703

Unavailable

92002

BOLT,10MM

92002-3731

Unavailable

92002A

BOLT,8X30

92002-3742

Unavailable

92011

SCREW,TAPPING

92011-561

Unavailable

92015

NUT,10MM

92015-3737

$6.58

92022

WASHER,8.5X19X1.2

92022-3730

$4.31

92022A

WASHER

92022-567

$2.67

92039

RIVET

92039-3002

$5.82

92039A

RIVET

92039-3714

$0.95

92057

CHAIN,COVER,L=250

92057-3701

Unavailable

92059

TUBE,5.8X10.8X220

92059-3765

$9.11

92066

PLUG

92066-3706

$5.14

92071

GROMMET

92071-3733

$4.14

92071A

GROMMET

92071-3736

Unavailable

92072

BAND,L=318

92072-3723

Unavailable

155

BOLT-WSP-SMALL,8X16

155R0816

$5.35

156

BOLT-WP,6X22

156R0622

$4.09

223

SCREW-PAN-WS-CROS,6X20

223R0620

$3.35

314

NUT-HEX-FINE,10MM

314R1000

$2.02

318

NUT-HEX-SMALL

318R0800

$4.18

532

RIVET-FLAT

532R0508

$1.78

92072A

BAND,TANDEM,J.S.VIOLET

92072-3777-RE

Unavailable

92075

DAMPER

92075-3719

$9.40

92075A

DAMPER

92075-3760

Unavailable

92093

SEAL,OSR70X82X7.5

92093-3704

$15.74
