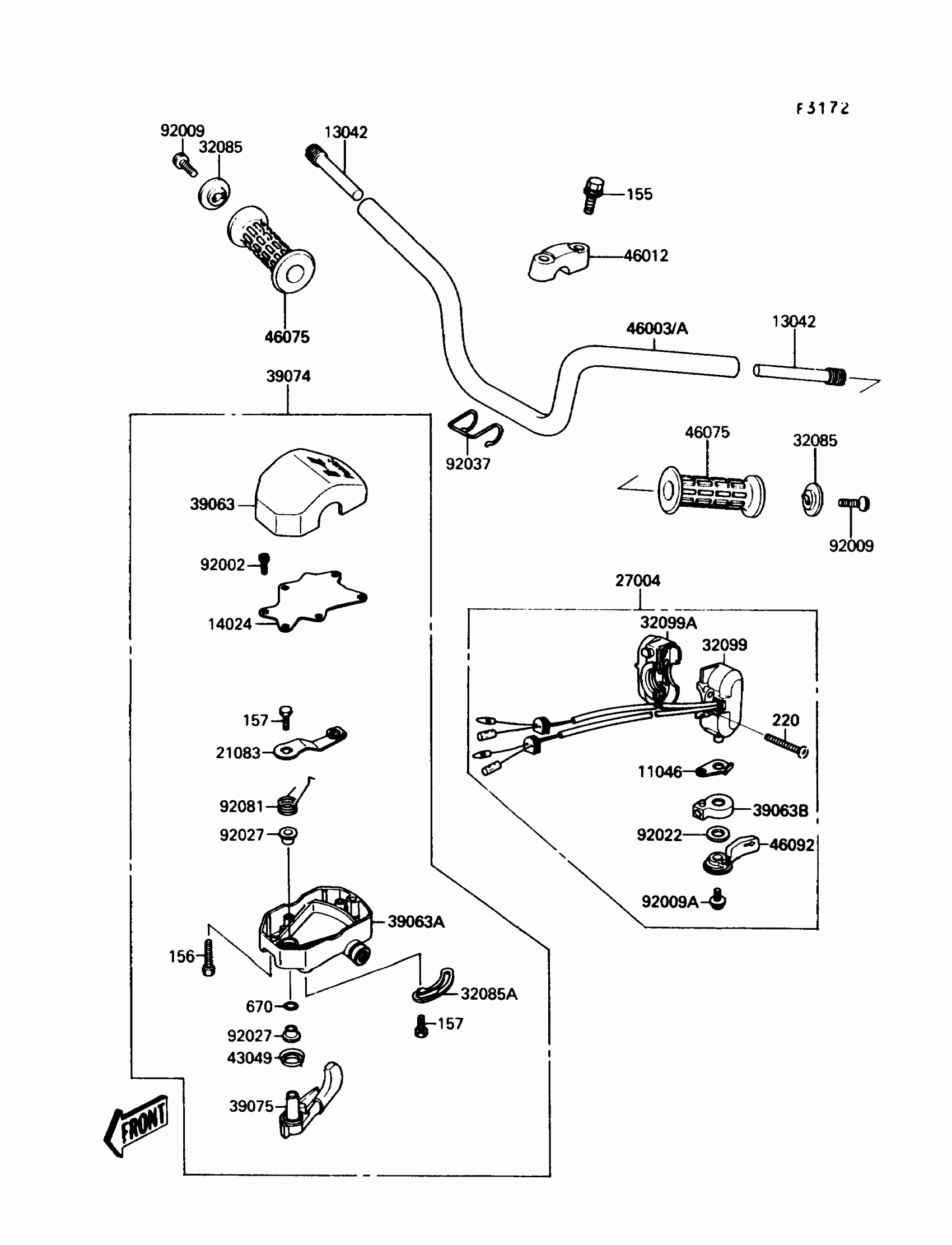

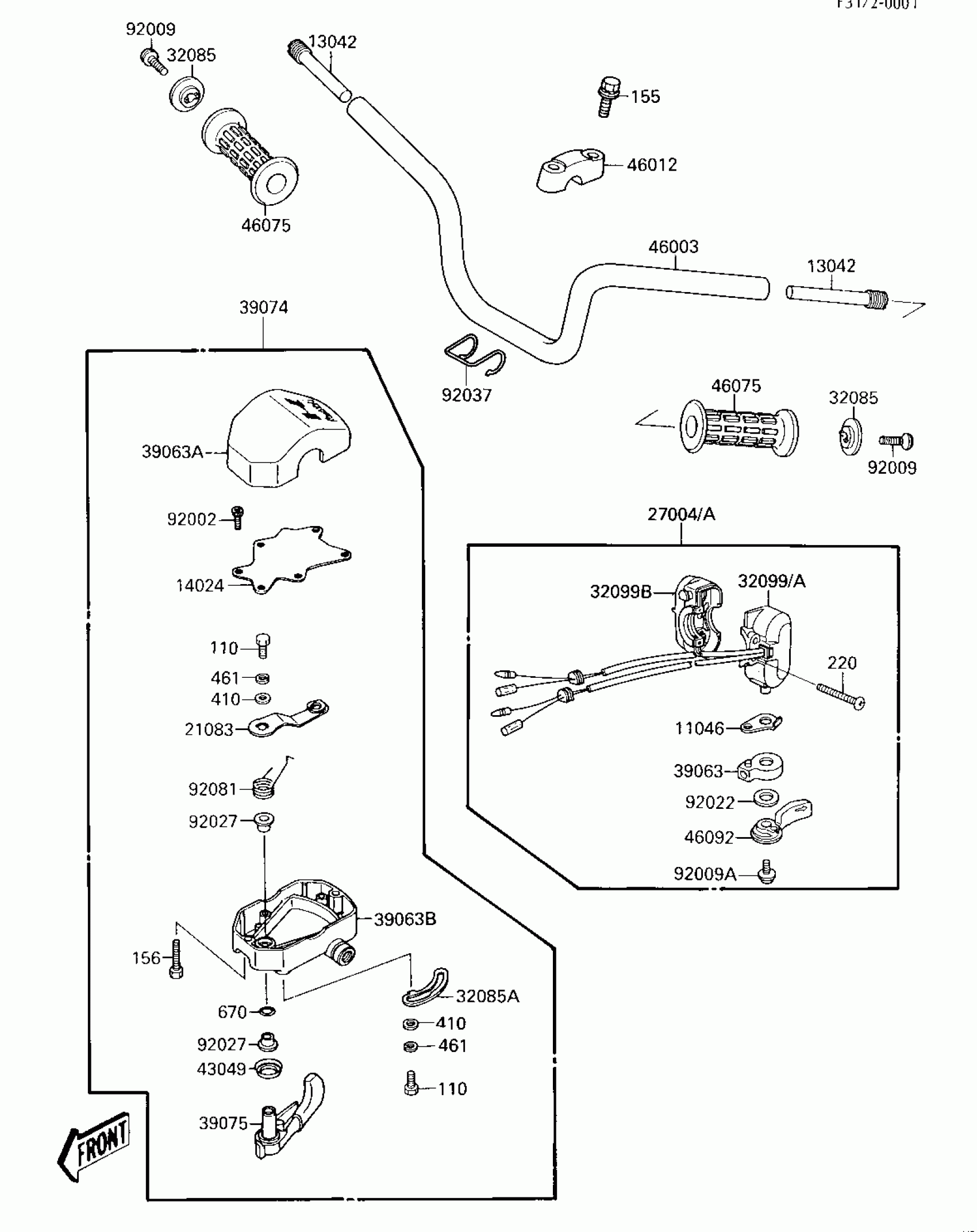

Kawasaki X2 Handlebar Diagram
#
Description
Price
155
BOLT-WSP-SMALL,8X35
155R0835
$8.19
156
BOLT-WP,5X25
156R0525
$5.22
157
BOLT-WSP,5X12
157R0512
$2.78
220
SCREW-PAN-CROS,5X30
220R0530
$4.87
670
O RING,8MM
670B1508
$1.29
11046
BRACKET
11046-3707
Unavailable
13042
WEIGHT,HANDLE
13042-3701
Unavailable
14024
COVER,THROTTLE LEVER
14024-3701
Unavailable
21083
ARM,THROTTLE LEVER
21083-3701
$15.65
27004
SWITCH-ASSY
27004-3710
$421.21
32085
STOPPER
32085-3705
$4.83
32085A
STOPPER
32085-3709
Unavailable
32099
CASE,RR,SWITCH
32099-3720
$270.18
32099A
CASE,FR,SWITCH
32099-3721
$68.26
39063
HOUSING-CONTROL,UPP
39063-3703
Unavailable
39063A
HOUSING-CONTROL,LWR
39063-3707
Unavailable
39063B
HOUSING-CONTROL,START
39063-3712
$11.42
39074
LEVER-ASSY-THROTTLE
39074-3711
$226.26
39075
LEVER-THROTTLE
39075-3704
Unavailable
43049
PACKING,THROTTLE LEVER
43049-3701
$7.69
46003A
HANDLE
46003-3712
$191.03
46012
HOLDER-HANDLE,UPP
46012-3713
$16.69
46075
GRIP,HANDLEBAR
46075-3713
Unavailable
46092
LEVER-GRIP,STARTER
46092-1116
$11.62
92002
BOLT,SOCKET,3X10
92002-3751
$5.46
92009
SCREW,6X16
92009-3703
$4.31
92009A
SCREW,5X10
92009-3713
Unavailable
92022
WASHER,WAVE
92022-3735
Unavailable
92027
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
92037
CLAMP,CABLE
92037-3734
Unavailable
92081
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
