1987 Kawasaki X2 Handle Pole Diagram

← All diagrams

Find the part on the Handle Pole diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

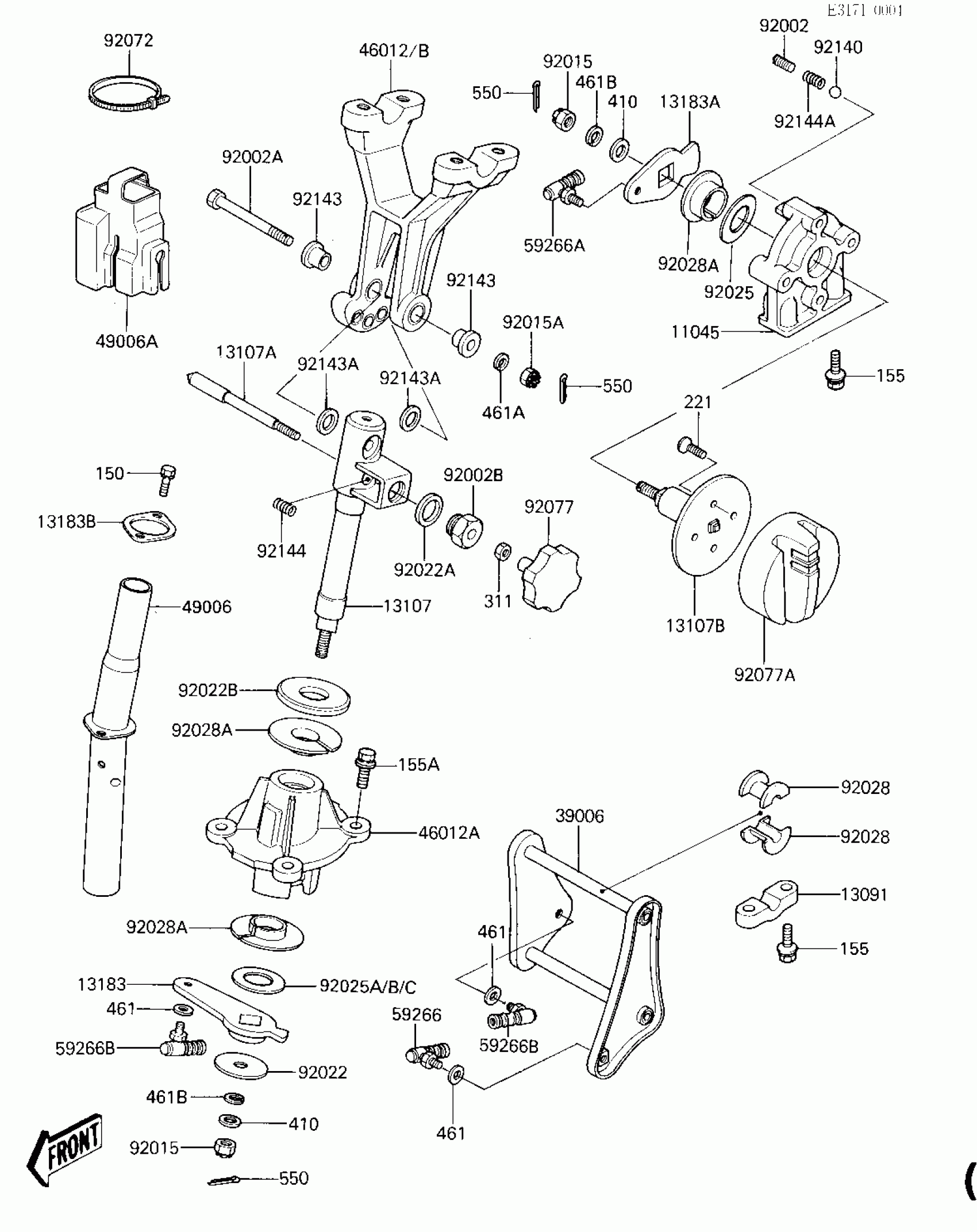

1987 Kawasaki X2 Handle Pole Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET

11044-3709

1
Out of stock

13091

HOLDER,STEERING ARM

13091-3708

1
Out of stock

13107

SHAFT,STEERING

13107-5002

1
Out of stock

13107A

SHAFT,STEERING ADJUST

13107-3706

1
Out of stock

13107B

SHAFT

13107-3707

1
Out of stock

13183

PLATE,STEERING

13169-3710

1
Out of stock

13183A

PLATE

13169-3711

1
Out of stock

13183B

PLATE,T=2MM

13169-3712

1
Out of stock

39006

ARM-STRG

39006-3701

1
Out of stock

46012

1

$246.79

In stock

46012A

HOLDER-HANDLE

46012-3703

1

$124.50

In stock

46012B

1

$197.74

In stock

49006

BOOT,CABLE&HARNESS

49006-3705

1
Out of stock

49006A

BOOT,HANDLE HOLDER

49006-3707

1
Out of stock

59266

JOINT-BALL

59266-3707

1

$60.75

In stock

59266A

JOINT-BALL

59266-3704

1

$44.96

In stock

59266B

JOINT-BALL

59266-3705

1

$50.02

In stock

92002

SCREW-SET,8X16

92002-3723

1
Out of stock

92002A

BOLT,8X73.5

92002-3733

1
Out of stock

92002B

BOLT,16X10

92002-3734

1
Out of stock

92015

NUT,CASTLE,10MM

92015-3718

1
Out of stock

92015A

NUT,CASTLE,8MM

92015-3719

1
Out of stock

92022

WASHER,10.5X40X4

92022-3724

1
Out of stock

92022A

WASHER,16.5X26X4

92022-3727

1
Out of stock

92022B

WASHER

92022-571

1
Out of stock

92025

SHIM,T=2.0MM

92025-3023

1
Out of stock

92025A

SHIM,21X40X0.3

92025-3712

—
Out of stock

92025B

SHIM,21X40X0.5

92025-3713

—
Out of stock

92025C

SHIM,21X40X1.0

92025-3714

—
Out of stock

92028

BUSHING

92028-3715

1
Out of stock

92028A

BUSHING

92028-3722

1
Out of stock

92072

BAND,L=292.1

92072-3509

1
Out of stock

92077

KNOB

92077-3713

1
Out of stock

92077A

KNOB

92077-3706

1

$37.05

In stock

92140

BALL,6.35MM

92140-3703

1
Out of stock

92143

COLLAR,L=18

92143-3701

1
Out of stock

92143A

COLLAR,14.2X20X3.8

92143-3703

1
Out of stock

92144

SPRING

92081-3707

1

$1.92

In stock

92144A

SPRING

92144-3708

1
Out of stock

150

BOLT-WS,5X20

150R0520

1

$2.71

In stock

155

1

$5.21

In stock

155A

1

$8.03

In stock

221

1

$1.58

In stock

311

NUT-HEX,6MM

311R0600

1

$0.75

In stock

410

W-PLAIN-S,10MM

410S1000

1
Out of stock

461

1

$0.97

In stock

461A

1

$0.66

In stock

461B

1

$0.97

In stock

550

PIN-COTTER

550S2020

1

$2.25

In stock
