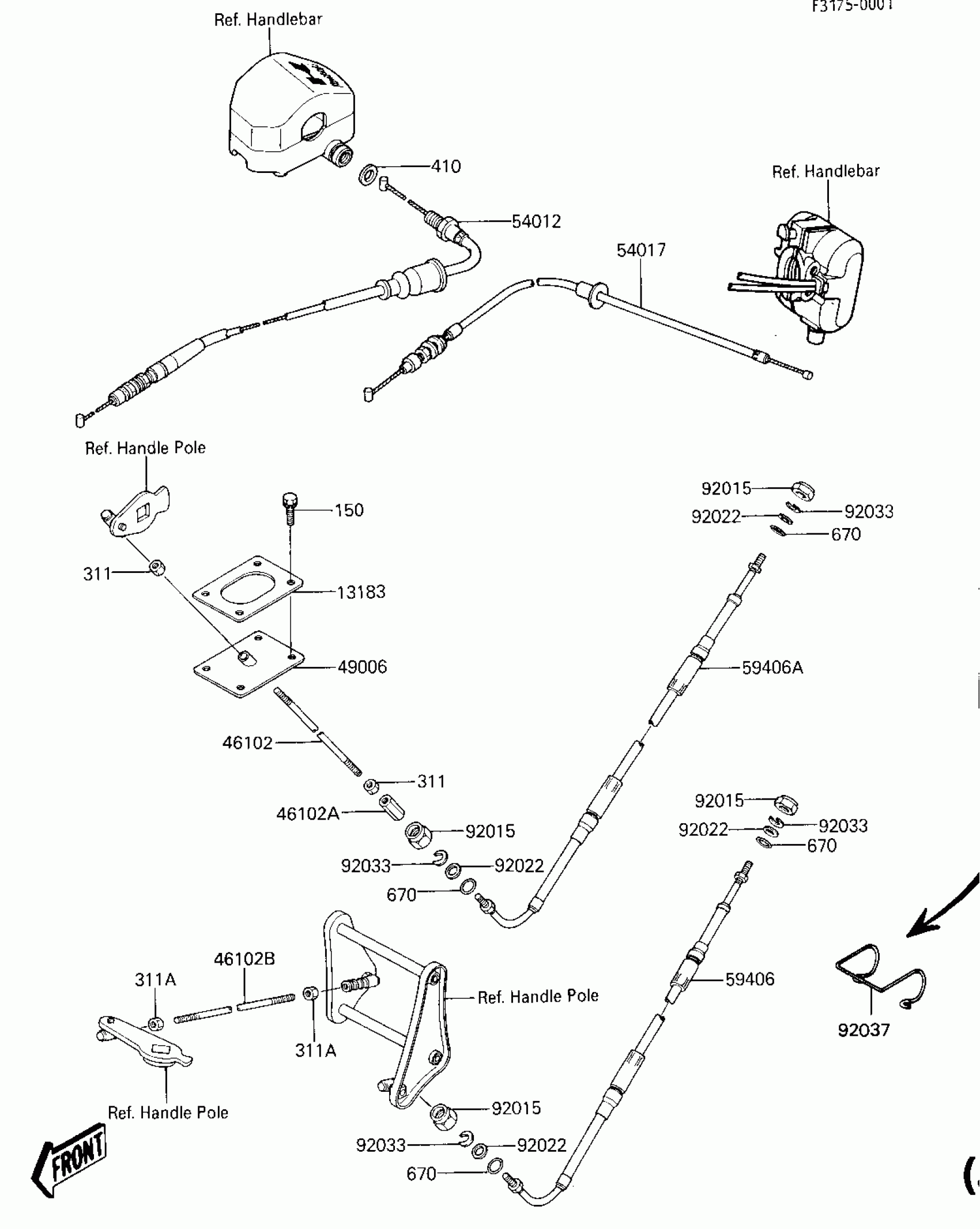

Kawasaki X2 CABLES (JF650-A1) Diagram

Description

Price

13183

PLATE

13169-3713

Unavailable

46102

ROD,STEERING,5X130

46102-3702

$6.05

46102A

ROD,NUT,5MM

46102-3703

$7.10

46102B

ROD,STEERING,6X190

46102-3704

Unavailable

49006

BOOT

49006-3706

Unavailable

54012

CABLE-THROTTLE

54012-3704

Unavailable

54017

CABLE-STARTER

54017-3702

Unavailable

59406

CABLE-STRG

59406-3723

Unavailable

59406A

CABLE-STRG,UP&DOWN

59406-3704

$210.67

92015

NUT,20MM

92015-526

$30.30

92022

WASHER

92022-535

$7.25

92033

RING-SNAP

92036-501

Unavailable

150

BOLT-WS,5X20

150R0520

$2.71

311

NUT-HEX,5MM

311R0500

Unavailable

311A

NUT-HEX,6MM

311R0600

$0.65

410

W-PLAIN-S,10MM

410S1000

Unavailable

670

O RING,11MM

670B2011

$0.98
