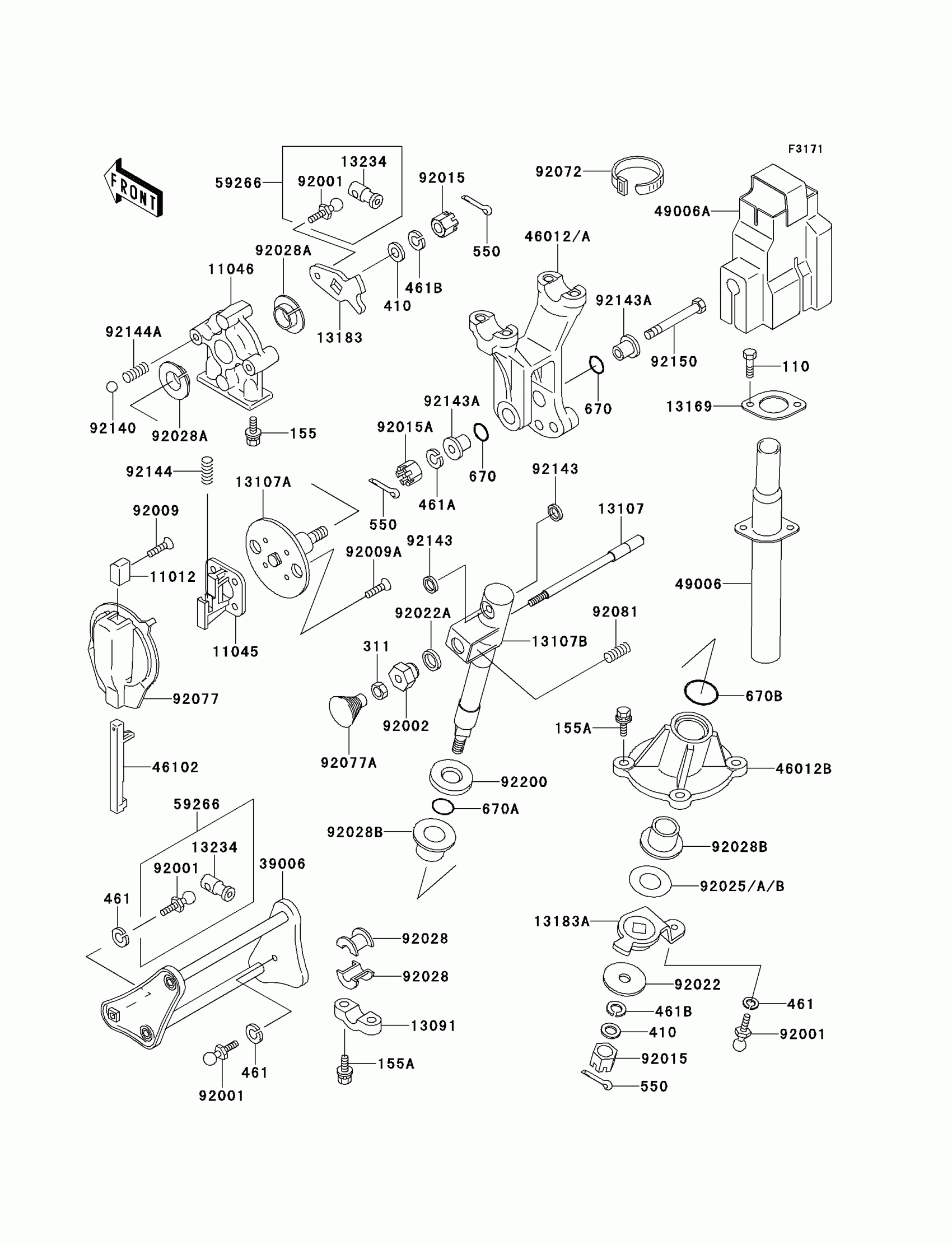

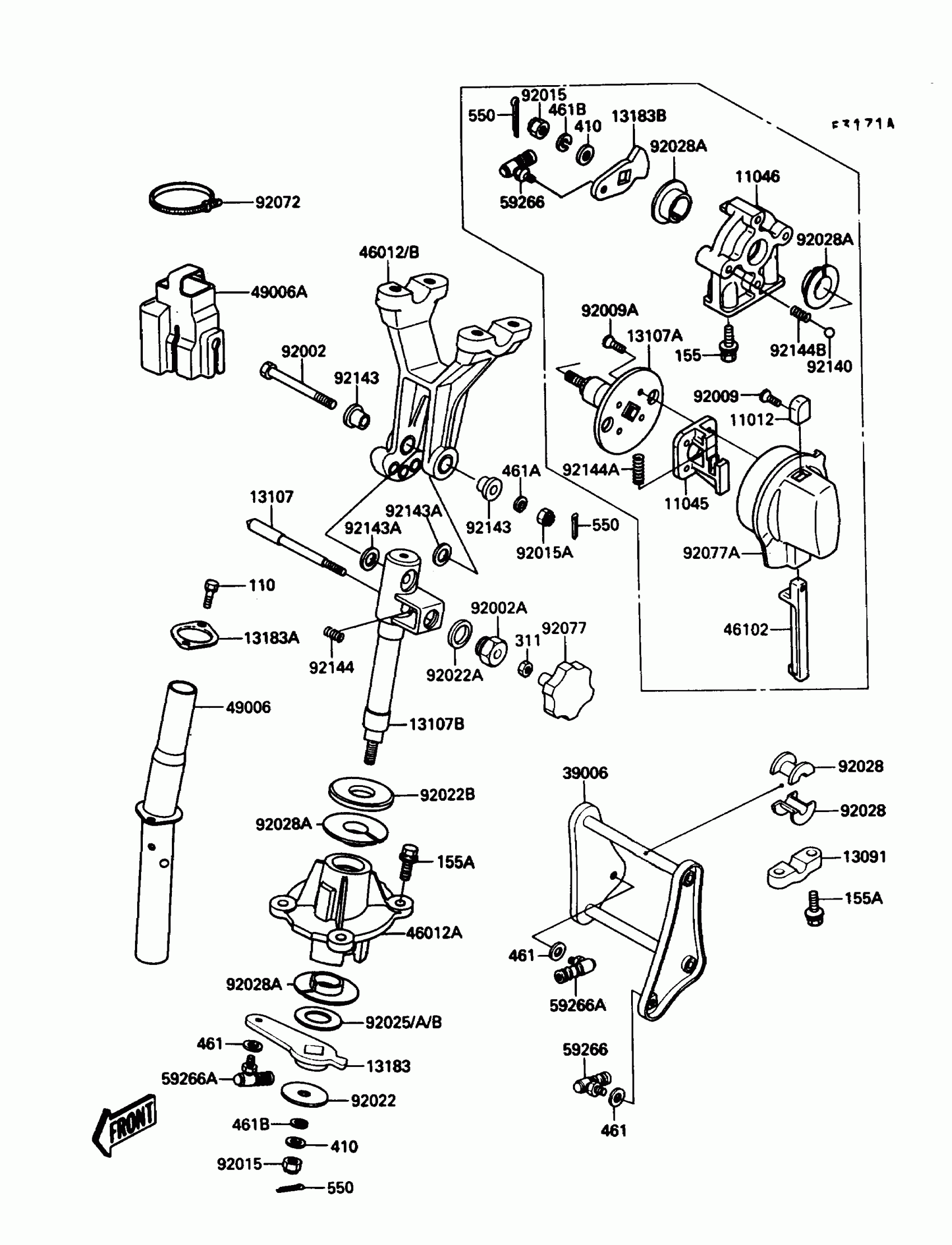

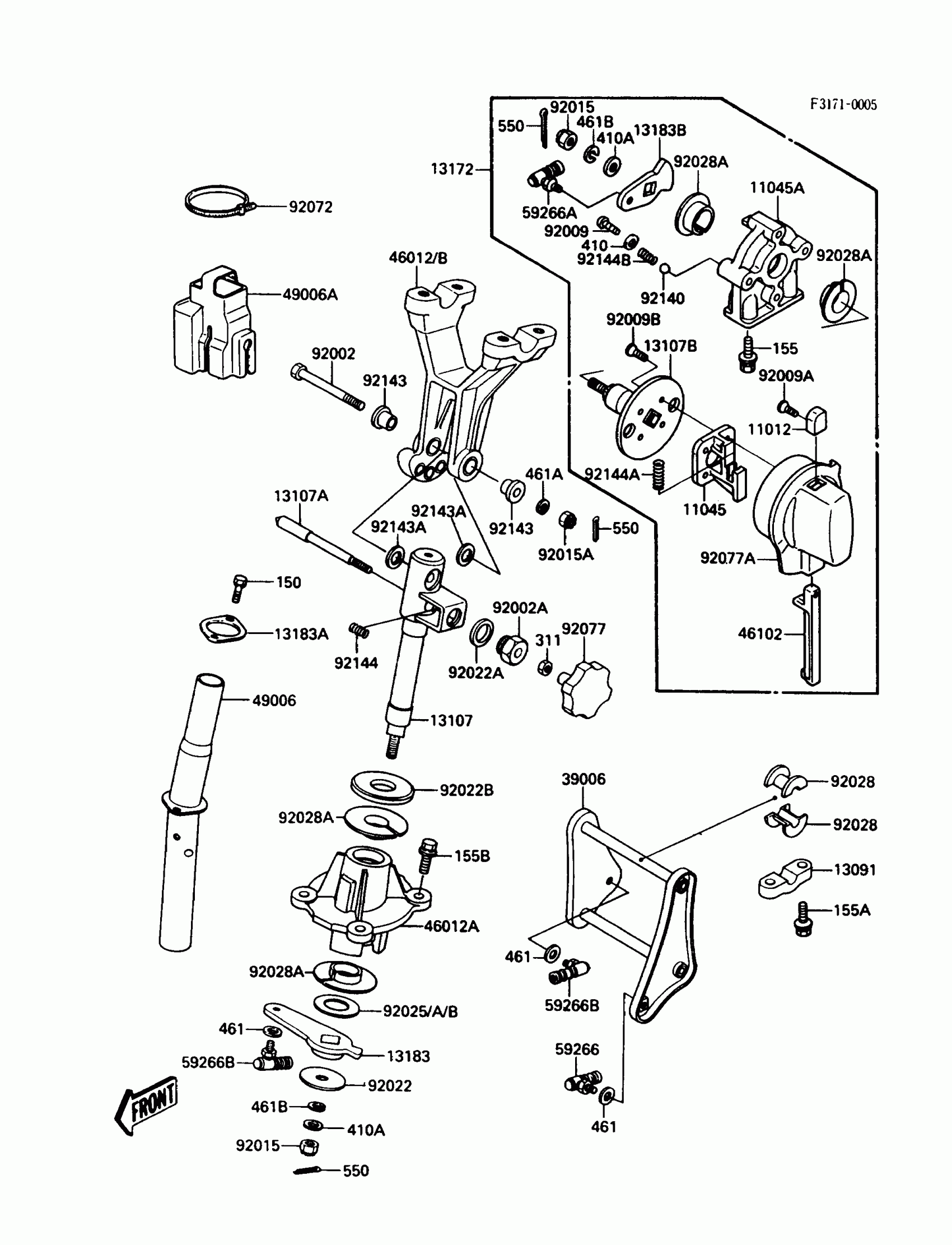

Kawasaki X2 Handle Pole Diagram

#

Description
Price

11012

CAP,TILT NOZZLE

11012-3716

Unavailable

11045

BRACKET,TILT KNOB

11045-3753

Unavailable

11046

BRACKET,TILT NOZZLE

11046-3848

Unavailable

13091

HOLDER,STEERING ARM

13091-3708

Unavailable

13107

SHAFT,STEERING ADJUST

13107-3706

Unavailable

13107A

SHAFT,TILT NOZZLE

13107-3711

Unavailable

13107B

SHAFT,STEERING

13107-3728

Unavailable

13169

PLATE,T=2MM

13169-3712

Unavailable

13183

PLATE

13183-3725

Unavailable

13183A

PLATE,STEERING

13183-3771

Unavailable

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

39006

ARM-STRG

39006-3702

$87.63

46012

HOLDER-HANDLE,H=75MM

46012-3714

Unavailable

46012A

HOLDER-HANDLE,H=115MM

46012-3715

$179.38

46012B

HOLDER-HANDLE,LWR

46012-3716

Unavailable

46102

ROD,TILT NOZZLE KNOB

46102-3708

Unavailable

49006

BOOT,CABLE&HARNESS

49006-3705

Unavailable

49006A

BOOT,HANDLE HOLDER

49006-3707

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,16X10

92002-3734

$26.49

92009

SCREW,3X8

92009-3731

Unavailable

92009A

SCREW,5X16

92009-3732

Unavailable

92015

NUT,CASTLE,10MM

92015-3718

Unavailable

92015A

NUT,CASTLE,8MM

92015-3813

$6.63

92022

WASHER,10.5X40X4

92022-3724

Unavailable

92022A

WASHER,16.5X26X4

92022-3727

Unavailable

92025

SHIM,21X40X0.3

92025-3712

Unavailable

92025A

SHIM,21X40X0.5

92025-3713

Unavailable

92025B

SHIM,21X40X1.0

92025-3714

Unavailable

92028

BUSHING

92028-3715

Unavailable

92028A

BUSHING

92028-3722

Unavailable

92028B

BUSHING

92028-3744

Unavailable

92072

BAND,L=292.1

92072-3509

Unavailable

92077

KNOB,TILT NOZZLE

92077-3722

$96.57

92077A

KNOB,STEERING ADJUST

92077-3723

Unavailable

92081

SPRING

92081-3707

$2.29

92140

BALL,6.35MM

92140-3703

Unavailable

92143

COLLAR,14.2X20X3.8

92143-3721

Unavailable

110

BOLT,5X16

110R0516

$2.83

155

BOLT-WSP-SMALL,8X25

155R0825

$5.77

155A

BOLT-WSP-SMALL,8X30

155R0830

$6.57

311

NUT-HEX,6MM

311R0600

$0.70

410

W-PLAIN-S,10MM

410S1000

$3.12

461

WASHER-SPRING,6MM

461S0600

$1.07

461A

WASHER SPRING 8MM

461S0800

$0.65

461B

WASHER-SPRING,10MM

461S1000

$1.03

550

PIN-COTTER

550S2020

$2.76

670

O RING,14MM

670B2014

$1.19

670A

O RING,20MM

670B2020

$1.22

670B

O RING,26MM

670B3026

$5.11

92143A

COLLAR,L=18

92143-3723

Unavailable

92144

SPRING

92144-3701

$4.95

92144A

SPRING

92144-3708

Unavailable

92150

BOLT,8X73.5

92150-3779

Unavailable

92200

WASHER

92200-3722

Unavailable
