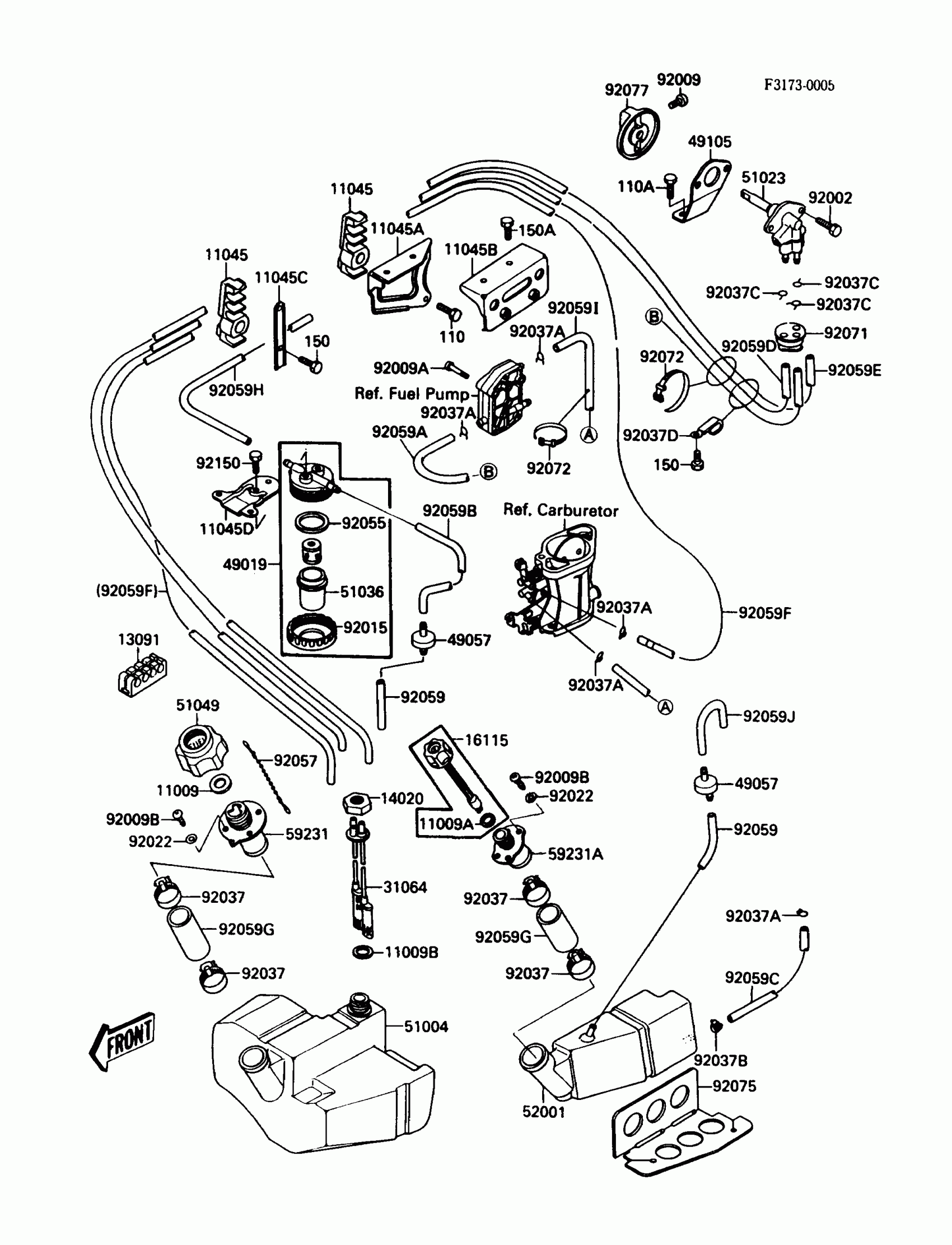

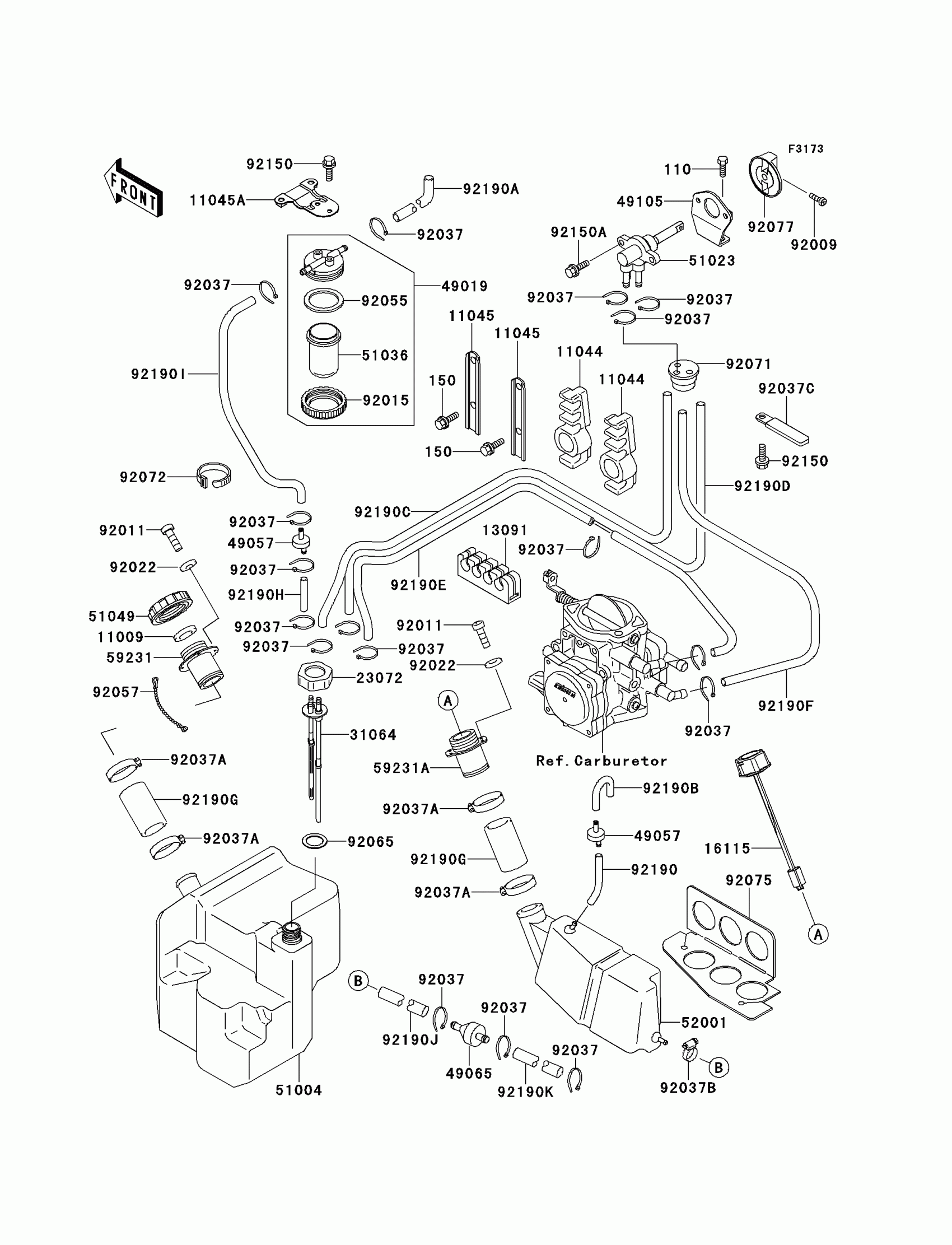

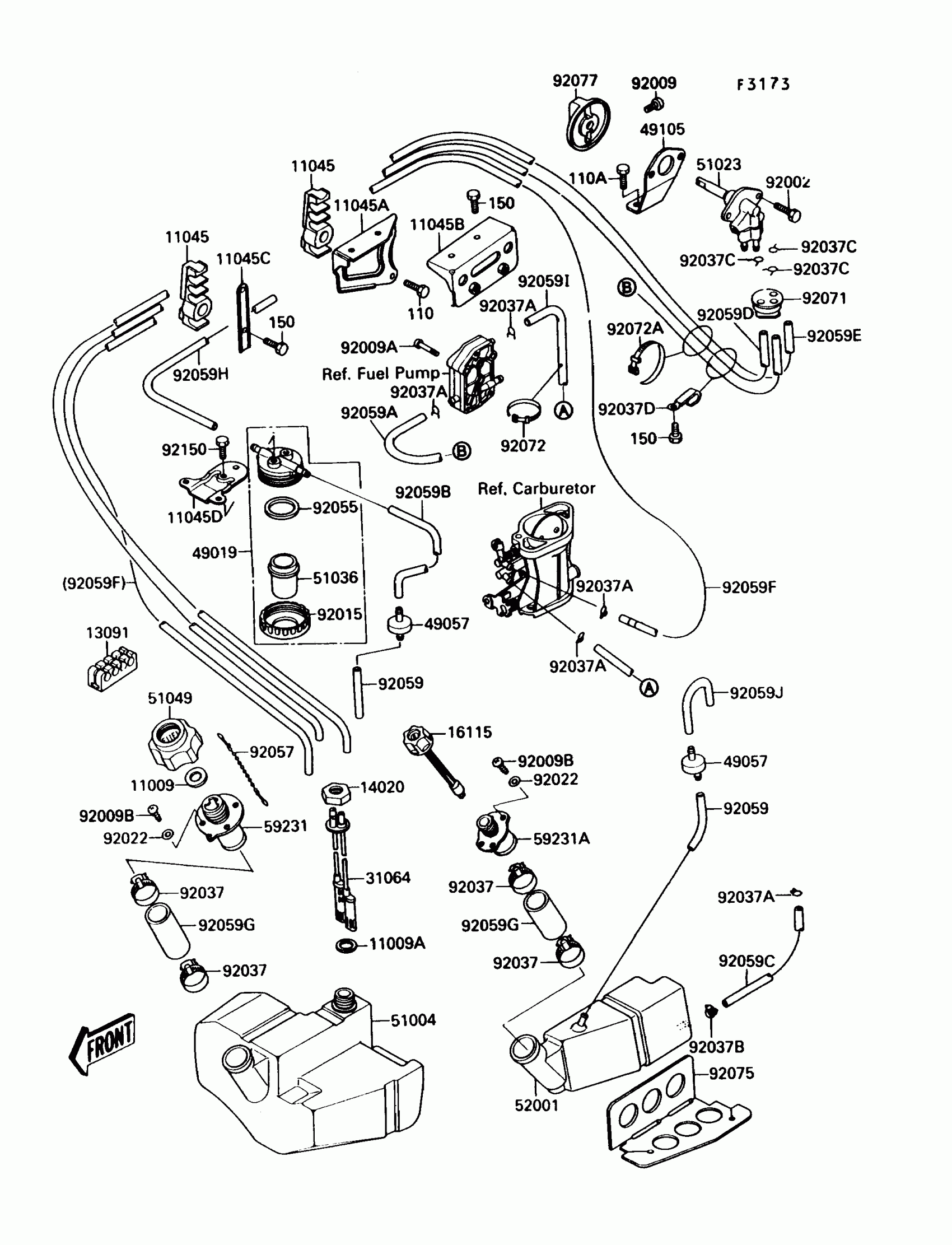

Kawasaki X2 Fuel Tank Diagram
#
11009
GASKET,TANK CAP
11009-3020
$13.51
11009A
GASKET
92065-504
$15.31
11045
BRACKET,FUEL PIPE
11044-3718
Unavailable
11045A
BRACKET,FUEL PUMP
11044-3719
Unavailable
11045B
BRACKET,FUEL PUMP
11045-3702
Unavailable
11045C
BRACKET
11045-3757
Unavailable
11045D
BRACKET
11045-3760
Unavailable
13091
HOLDER,FUEL PIPE
13091-3709
Unavailable
14020
RETAINER
23072-501
Unavailable
16115
CAP-OIL FILLER
16115-3705
$63.91
31064
PIPE-COMP,FUEL
31064-3707
$99.33
49019
FILTER-FUEL
49019-3706
Unavailable
49057
VALVE-RELIEF
49057-3001
$64.85
49105
BRACKET-TAP
49105-3704
Unavailable
51004
TANK-FUEL
51004-3704
$119.30
51023
TAP-ASSY,FUEL
51023-3703
$67.55
51036
CUP,FUEL FILTER
51036-3702
Unavailable
51049
CAP-TANK,FUEL
51049-3705
Unavailable
52001
TANK-OIL
52001-3704
$21.85
59231
FILLER,FUEL TANK
59231-3702
$19.45
59231A
FILLER,OIL TANK
59231-3703
$18.88
92002
BOLT,5X16
92002-3747
$4.45
92009
SCREW,4X8
92009-3729
$6.61
92009A
SCREW,6X40
92009-3735
$5.11
92009B
SCREW
92011-562
$1.65
92015
NUT,RING
92015-3013
Unavailable
92022
WASHER
92022-563
$1.13
92037
CLAMP
92037-3009
$3.70
92037A
CLAMP
92037-1173
$3.49
92037B
CLAMP
92037-3726
$3.98
92037C
CLAMP
92037-3727
$2.29
92037D
CLAMP,L=100
92037-3736
$5.52
92055
RING-O,FILTER CUP
92055-3006
$3.07
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92059
TUBE,5.8X12.2X55
92059-3026
Unavailable
92059A
TUBE,5.8X700
92059-3720
$35.73
92059B
TUBE,5.8X10.8X200
92059-3721
$9.11
92059C
TUBE,5.8X10.8X360
92059-3743
Unavailable
92059D
TUBE,"RES",5.8X1400
92059-3744
$35.73
92059E
TUBE,"ON",5.8X1400
92059-3745
$35.73
110
BOLT 6X12
110R0612
$1.75
110A
BOLT,6X16
110R0616
$3.13
150
BOLT-WS,6X12
150R0612
$3.35
92059F
TUBE
92059-3764
$18.44
92059G
TUBE,45X53X75
92059-3751
Unavailable
92059H
TUBE,5.8X10.8X1260
92059-3770
$35.73
92059I
TUBE,5.8X10.8X330
92059-3794
Unavailable
92059J
TUBE
92059-3802
Unavailable
92071
GROMMET
92071-3745
Unavailable
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92075
DAMPER
92075-3728
Unavailable
92077
KNOB,FUEL TAP
92077-3704
Unavailable
92150
BOLT,6X12
92150-3709
Unavailable
