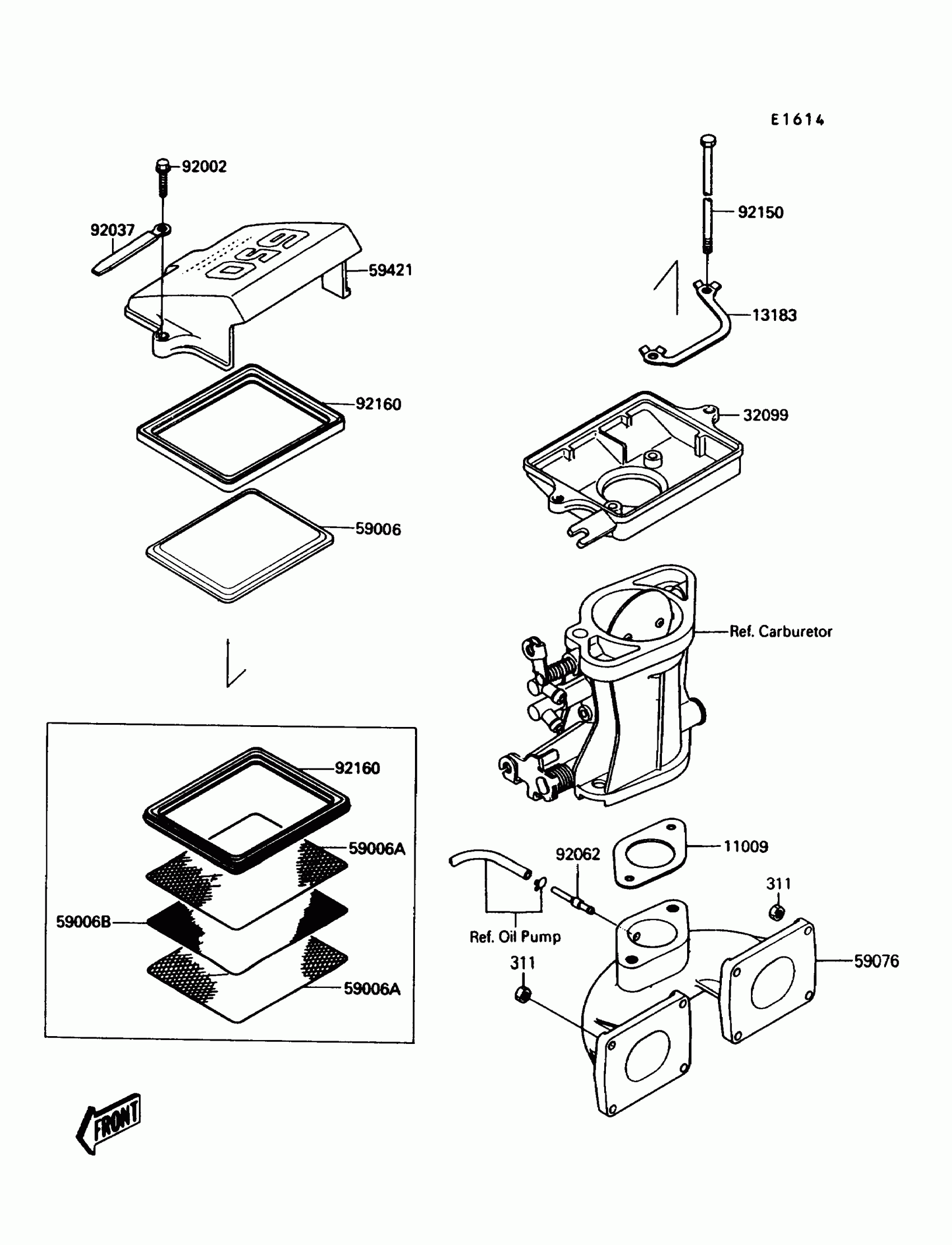

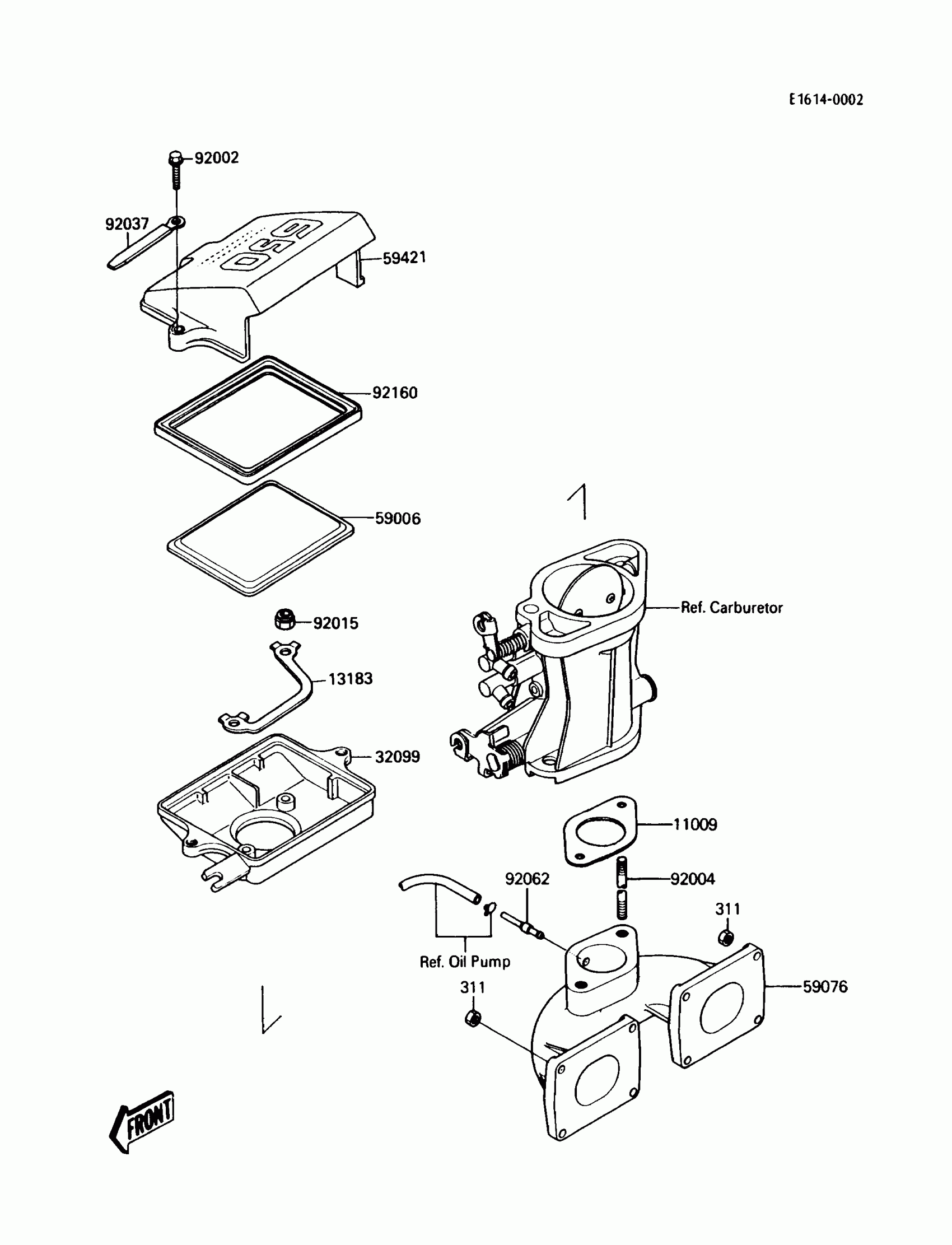

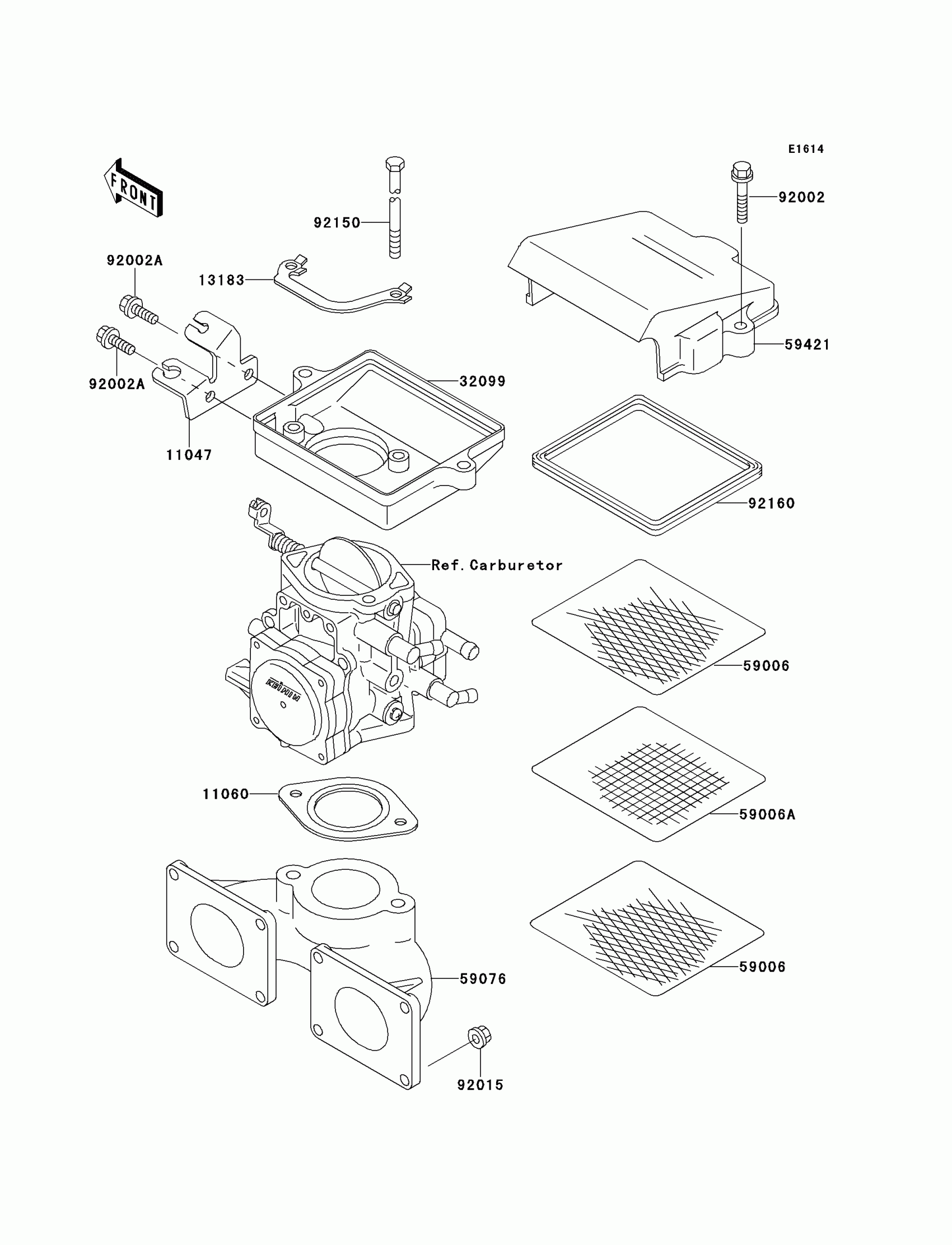

Kawasaki X2 Flame Arrester Diagram

Description

Price

311

NUT-HEX,6MM

311R0600

$0.70

11009

GASKET,CARBURETOR

11009-3747

Unavailable

13183

PLATE

13183-3726

$6.34

32099

CASE,ARRESTER

32099-3707

$66.72

59006A

ARRESTER-FLAME

59006-3707

$30.40

59006B

ARRESTER-FLAME

59006-3708

$15.04

59076

MANIFOLD-INTAKE

59076-3704

$176.10

59421

COVER-INTAKE

59421-3710

Unavailable

92002

BOLT,6X30

92002-3726

$4.69

92037

CLAMP,L=100

92037-3736

$5.52

92062

NOZZLE

92062-3703

$15.43

92150

BOLT,6X113

92150-3724

$11.81

92160

DAMPER

92160-3704

$18.76
