Description

Price

11012

CAP,ENGINE HOOD,JET WHITE

11012-3711-8C

$8.72

13183

PLATE

13183-3706

Unavailable

14024

COVER,ENGINE HOOD,JET WHITE

14024-3714-8U

Unavailable

14024A

COVER,ENGINE HOOD,FR

14024-3740

Unavailable

14024B

COVER,ENGINE HOOD,JET WHITE

14024-3730-8C

Unavailable

27012

HOOK,ENGINE HOOD LOCK

27012-3719

$34.15

27016

LOCK-ASSY,ENGINE HOOD

27016-3706

Unavailable

39066

HOOD-ASSY-ENGINE,J.WHITE

39066-3705-8C

$458.79

53009

HINGE,DECK

53009-3703

Unavailable

53009A

HINGE,ENGINE HOOD

53009-3704

Unavailable

92002

BOLT,8X25

92002-3774

$7.91

92009

UNAVAILABLE IN PRICE BOOK

92009-3733

Unavailable

92022

WASHER

92022-563

$1.13

92043

PIN,10X23

92043-3710

Unavailable

92043A

PIN,10X25

92043-3711

Unavailable

92057

CHAIN,COVER,L=250

92057-3701

Unavailable

92071

GROMMET

92071-3731

$7.57

92075

DAMPER,ENGINE HOOD CO

92075-3753

Unavailable

92075A

DAMPER

92075-3757

$6.52

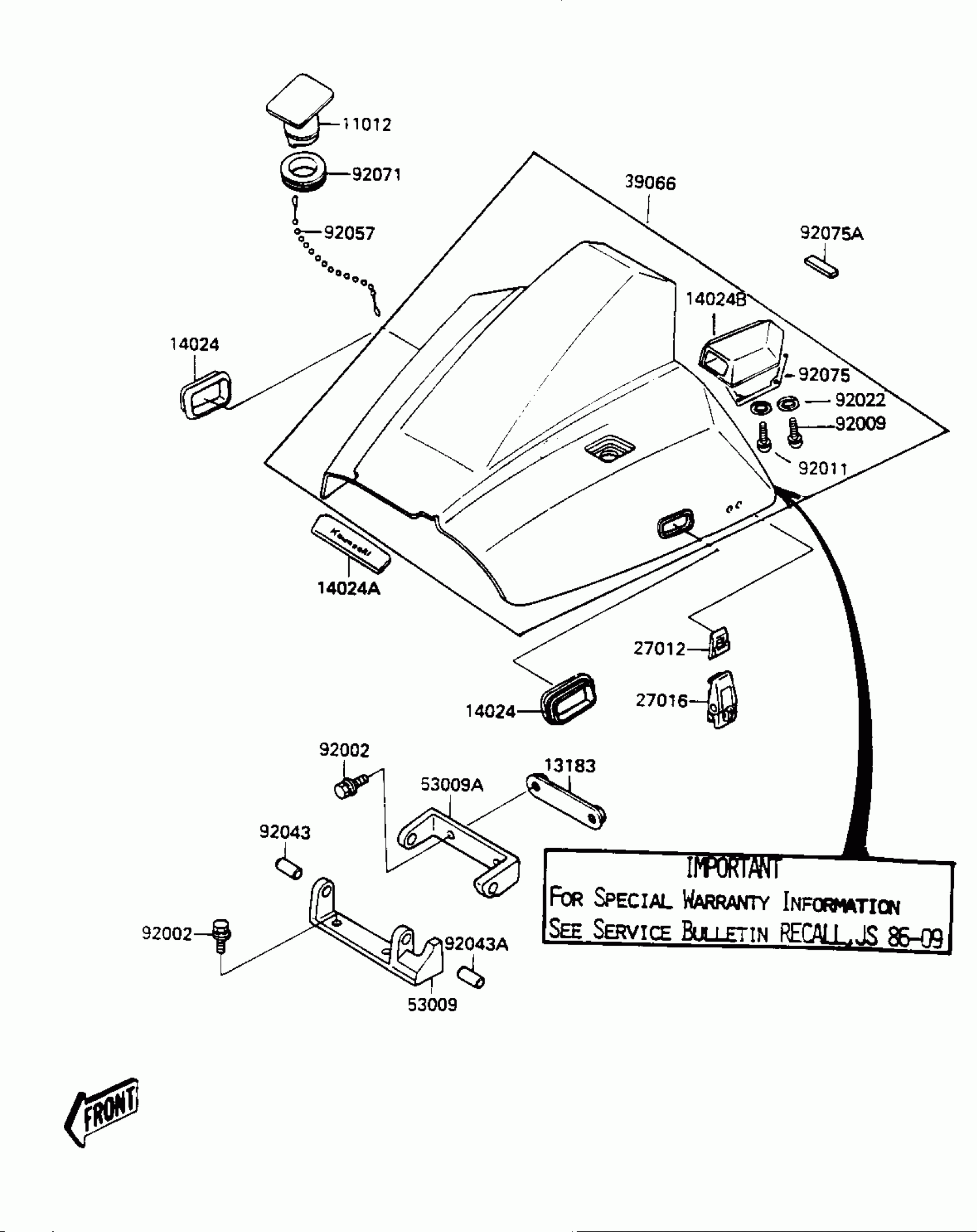

Kawasaki X2 ENGINE HOOD (JF650-A2) Diagram

CAP,ENGINE HOOD,JET WHITE

PLATE

COVER,ENGINE HOOD,JET WHITE

COVER,ENGINE HOOD,FR

COVER,ENGINE HOOD,JET WHITE

HOOK,ENGINE HOOD LOCK

LOCK-ASSY,ENGINE HOOD

HOOD-ASSY-ENGINE,J.WHITE

HINGE,DECK

HINGE,ENGINE HOOD

BOLT,8X25

UNAVAILABLE IN PRICE BOOK

WASHER

PIN,10X23

PIN,10X25

CHAIN,COVER,L=250

GROMMET

DAMPER,ENGINE HOOD CO

DAMPER
