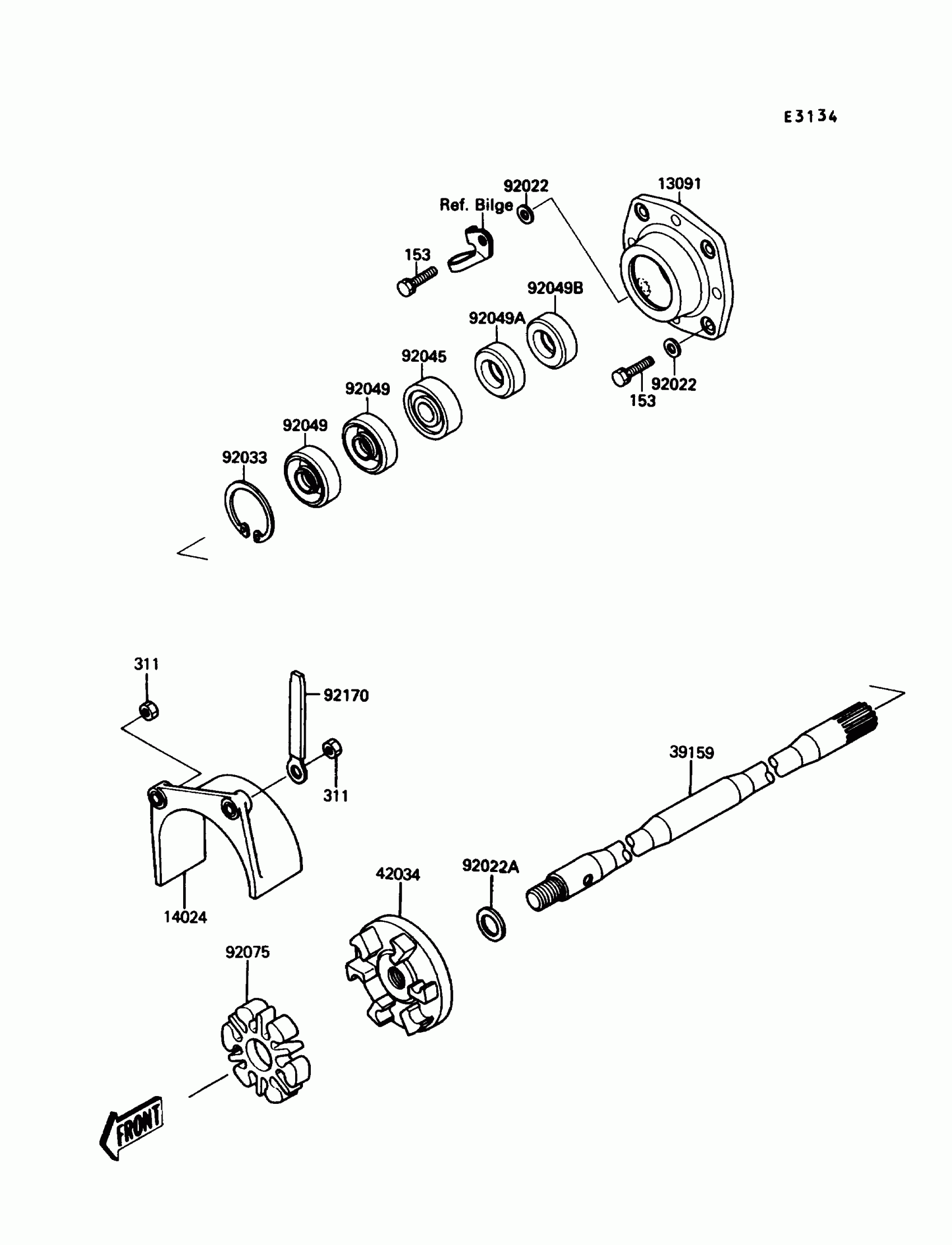

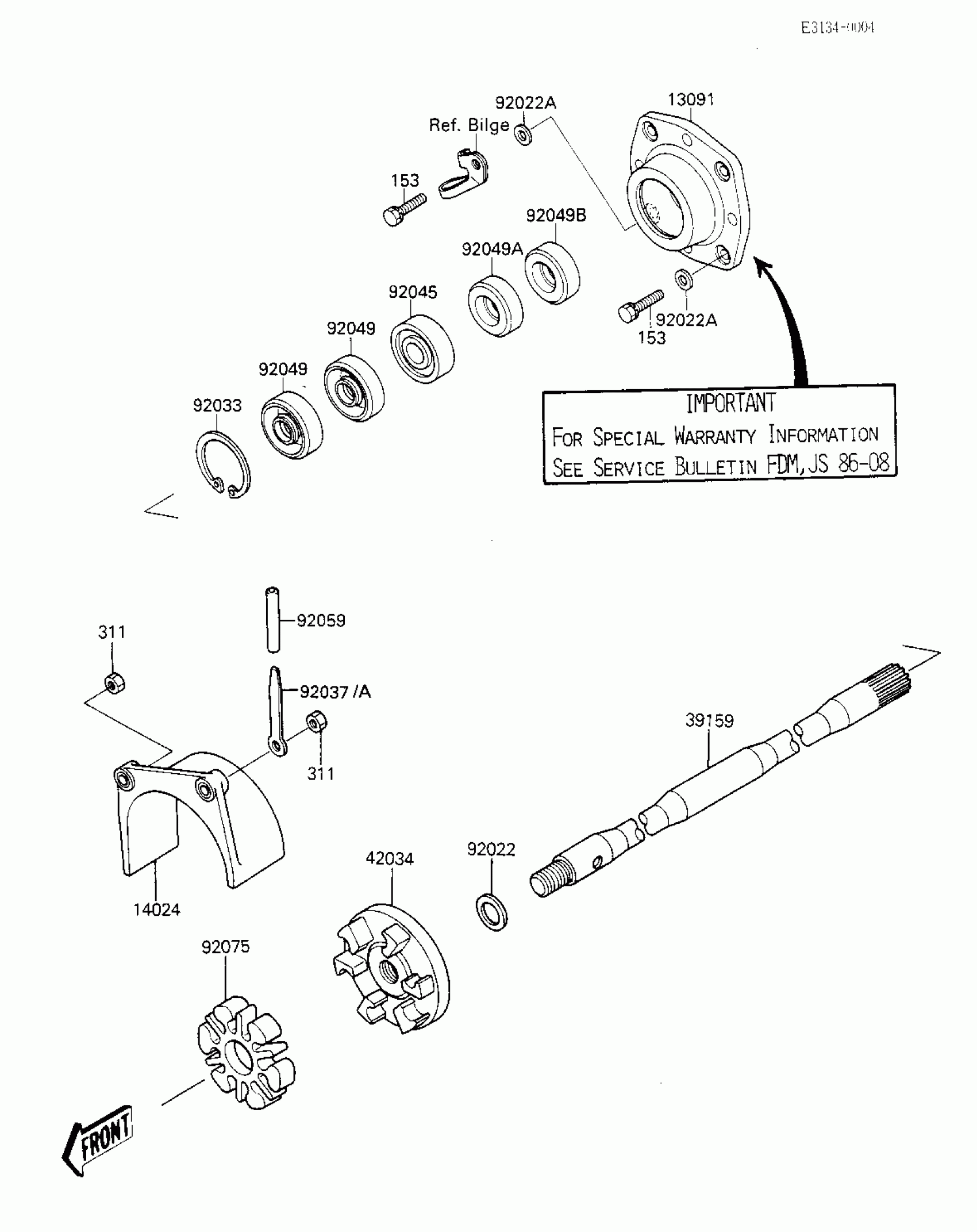

Kawasaki X2 Drive Shaft Diagram

Description

Price

153

BOLT-WS-SMALL,8X25

153R0825

$5.88

311

NUT-HEX,6MM

311R0600

$0.70

13091

HOLDER

13091-3730

Unavailable

14024

COVER,COUPLING

14024-3728

Unavailable

39159

SHAFT-DRIVE

39159-3702

$403.02

42034

COUPLING

42034-3705

Unavailable

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,18X26X2.0

92022-3728

Unavailable

92033

RING-SNAP,42MM

92033-3713

$17.74

92045

BEARING-BALL,60042RD

92045-3705

$31.76

92049

SEAL-OIL,S620426

92049-3707

$7.91

92049A

SEAL-OIL,SCY20368

92050-502

$27.73

92049B

SEAL-OIL,SC20367

92050-503

$24.91

92075

DAMPER,COUPLING

92075-520

$91.03

92170

CLAMP

92170-3705

$8.09
