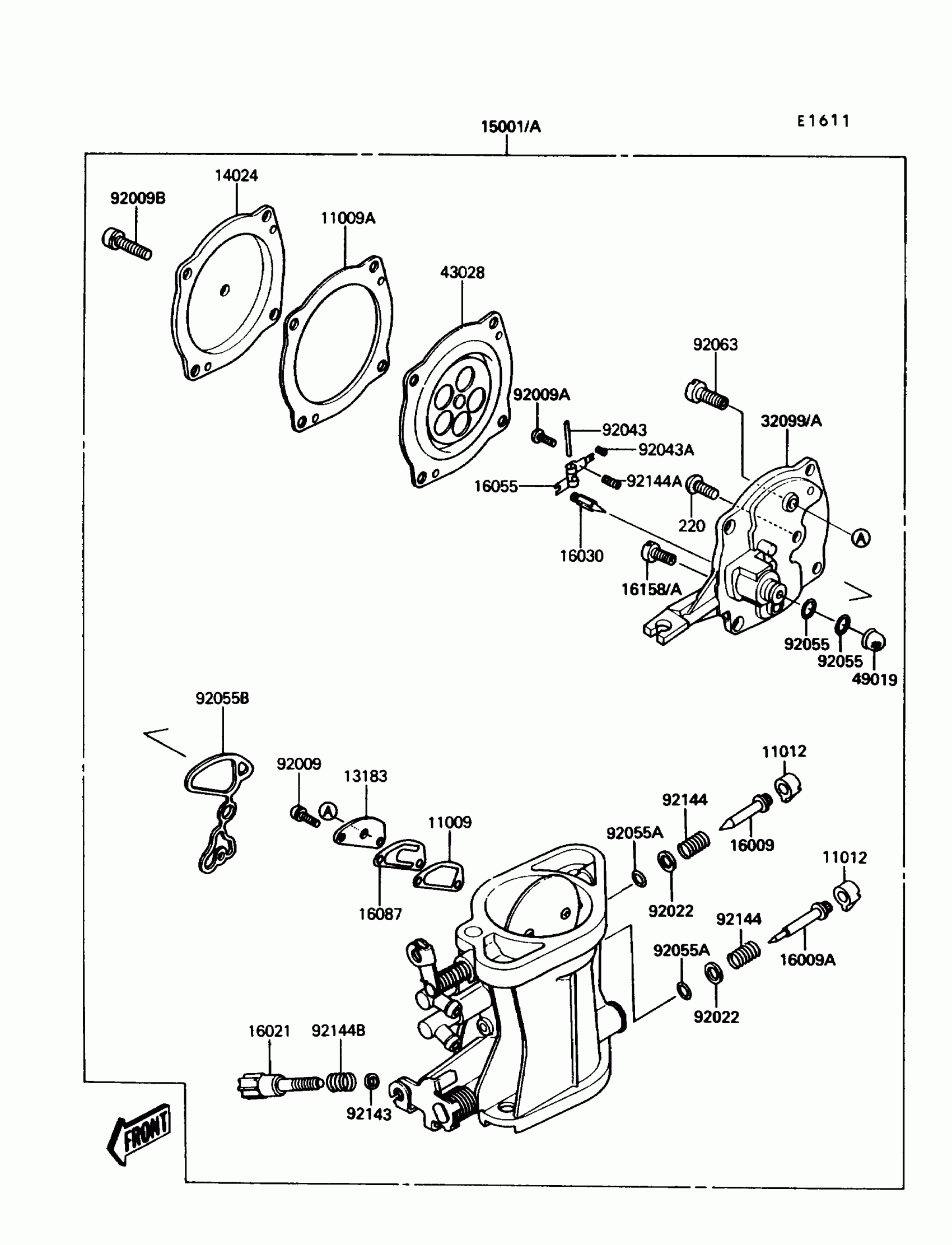

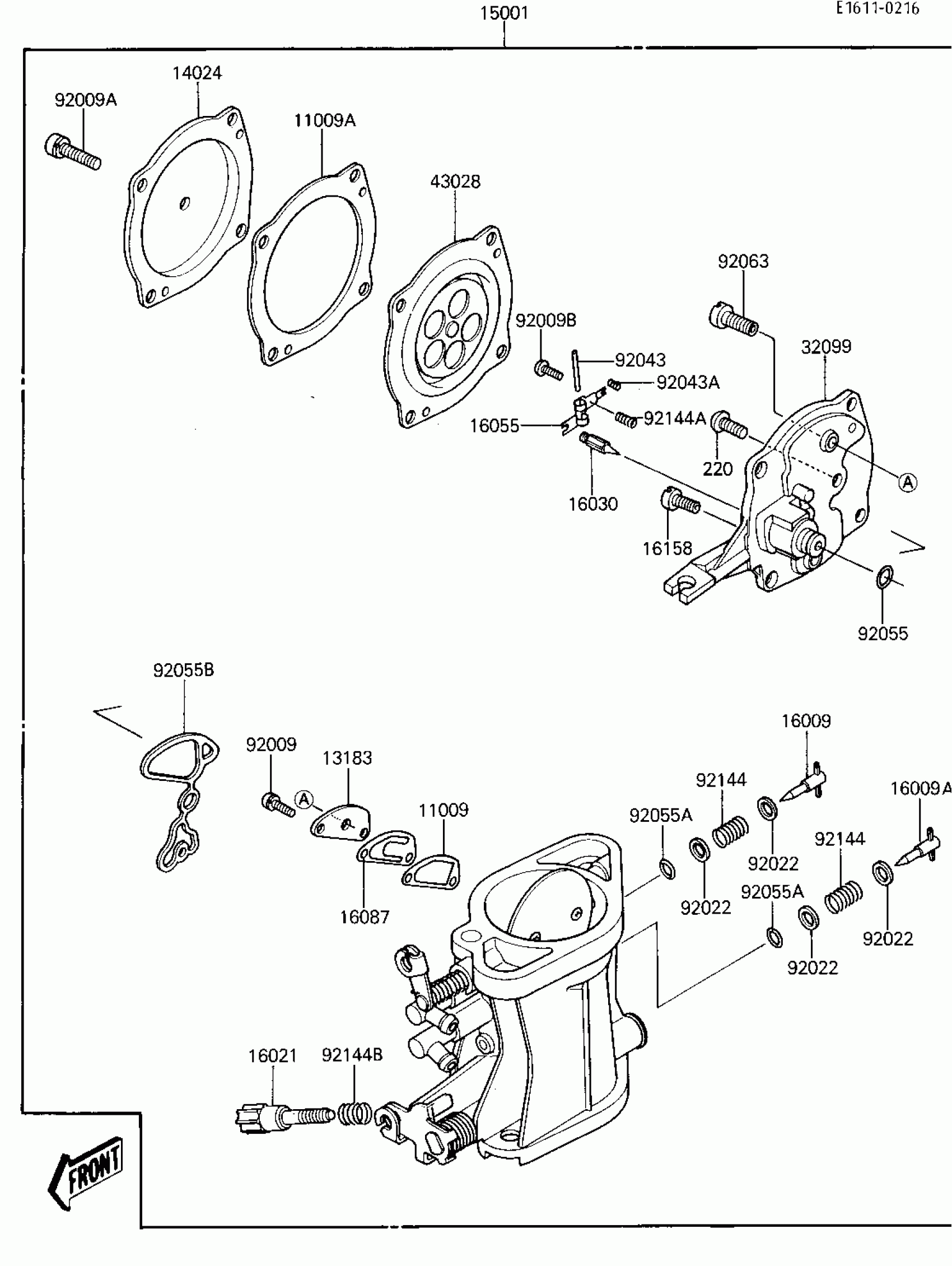

Kawasaki X2 CARBURETOR Diagram

#

Description
Price

11009

GASKET,CHOKE VALVE

11009-3729

Unavailable

11009A

GASKET,DIAPHRAGM

11009-3730

$15.34

13183

PLATE

13183-3707

Unavailable

14024

COVER,CARBURETOR

14024-3720

Unavailable

15001

CARBURETOR-ASSY

15001-3720

$643.65

16009

NEEDLE-JET,HIGH SPEED

16009-3701

$24.56

16009A

NEEDLE-JET,LOW SPEED

16009-3702

$37.17

16021

SCREW-THROTTLE STOP

16021-3702

$47.91

16030

VALVE-FLOAT

16030-3701

$50.52

16055

ARM-FLOAT

16055-3701

$47.66

16087

VALVE-CHECK

16087-3702

Unavailable

16158

JET-SLOW,#48

16158-3701

Unavailable

32099

CASE,CARBURETOR

32099-3712

$111.88

43028

DIAPHRAGM,CARBURETOR

43028-3704

$95.55

92009

SCREW-PAN-WS-CROS,3X6

223B0306

$4.06

92009A

SCREW,4X16

92009-3711

$7.24

92009B

SCREW,3X8

92009-3712

$2.38

92022

WASHER,ADJUST SCREW

92022-3734

$4.30

92043

PIN,FLOAT

92043-1209

$6.16

92043A

PIN,THROTTLE STOP SCREW

92043-3712

$4.85

92055

RING-O

92055-1223

$5.52

92055A

RING-O,ADJUST SCREW

92055-3713

$5.23

92055B

RING-O

92055-3714

Unavailable

92063

JET-MAIN,#125

92063-1069

$14.79

92144

SPRING,ADJUST SCREW

92144-3704

$6.89

92144A

SPRING,FLOAT VALVE

92144-3705

Unavailable

92144B

SPRING,THROTTLE STOP SCREW

92144-3706

$7.51

220

SCREW-PAN-CROS,4X8

220D0408

$0.68
