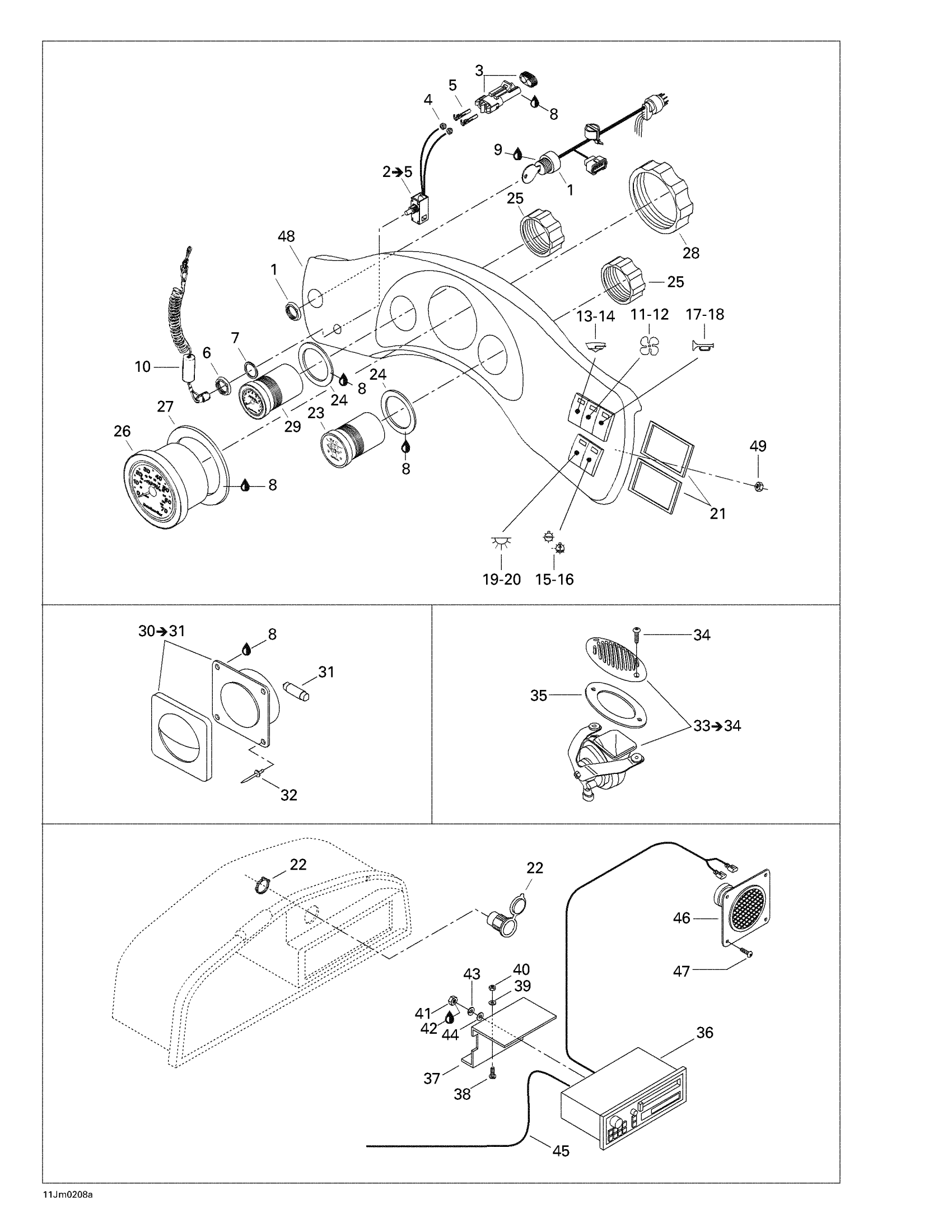

Sea-doo X-20, 5495, 2002 10- Electrical Accessories 1 Diagram
#
1
Instrumentation Harness | CHALLENGER 1800 (5774).
204470630
Unavailable
2
Safety Switch | Includes 17 - 20.
204470463
Unavailable
3
Male Connector, 2 Circuits
278000220
$15.49
4
Wire Seal
278000218
$4.39
5
Female Terminal
278000223
$3.19
6
Safety Switch Nut
278000099
Unavailable
7
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
9
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
10
Safety Lanyard
278001431
$47.49
11
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
12
Gasket
204470132
Unavailable
13
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
14
Gasket
204470132
Unavailable
15
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
16
Gasket
204470132
Unavailable
17
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
18
Gasket
204470132
Unavailable
19
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
20
Gasket
204470132
Unavailable
21
LOCKING PLATE - Call your local BRP dealership
204470343
Unavailable
22
DC Outlet
710001248
$37.99
23
Oil/Fuel Gauge
204470391
Unavailable
24
Gasket
204470308
Unavailable
25
Gauge Nut
204470146
Unavailable
26
Speedometer Gauge
204470374
Unavailable
27
Gasket
204470309
Unavailable
28
Gauge Nut
204470171
Unavailable
29
Tachometer Gauge
204470466
Unavailable
30
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
31
BULB - Call your local BRP dealership
204470081
Unavailable
32
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
33
HORN - Call your local BRP dealership
204470801
Unavailable
34
SCREW-RD.HD.PH. - Call your local BRP dealership
211000100
Unavailable
35
Horn Gasket
293250108
Unavailable
36
Radio-Compact Disk
204470659
Unavailable
37
Radio Support
204470599
Unavailable
38
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Hex. Nut M5
232051600
$1.15
42
Loctite 243, 10 ml
293800060
$21.49
43
Helical Lock Washer M5
234151601
$1.15
44
Flat Washer 5 mm, Stainless
234052600
$0.77
45
Antenna
204470380
Unavailable
46
Speaker
204470378
Unavailable
47
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
48
Facia
204470614
Unavailable
49
Hex. Elastic Nut M8
232581600
$1.48
