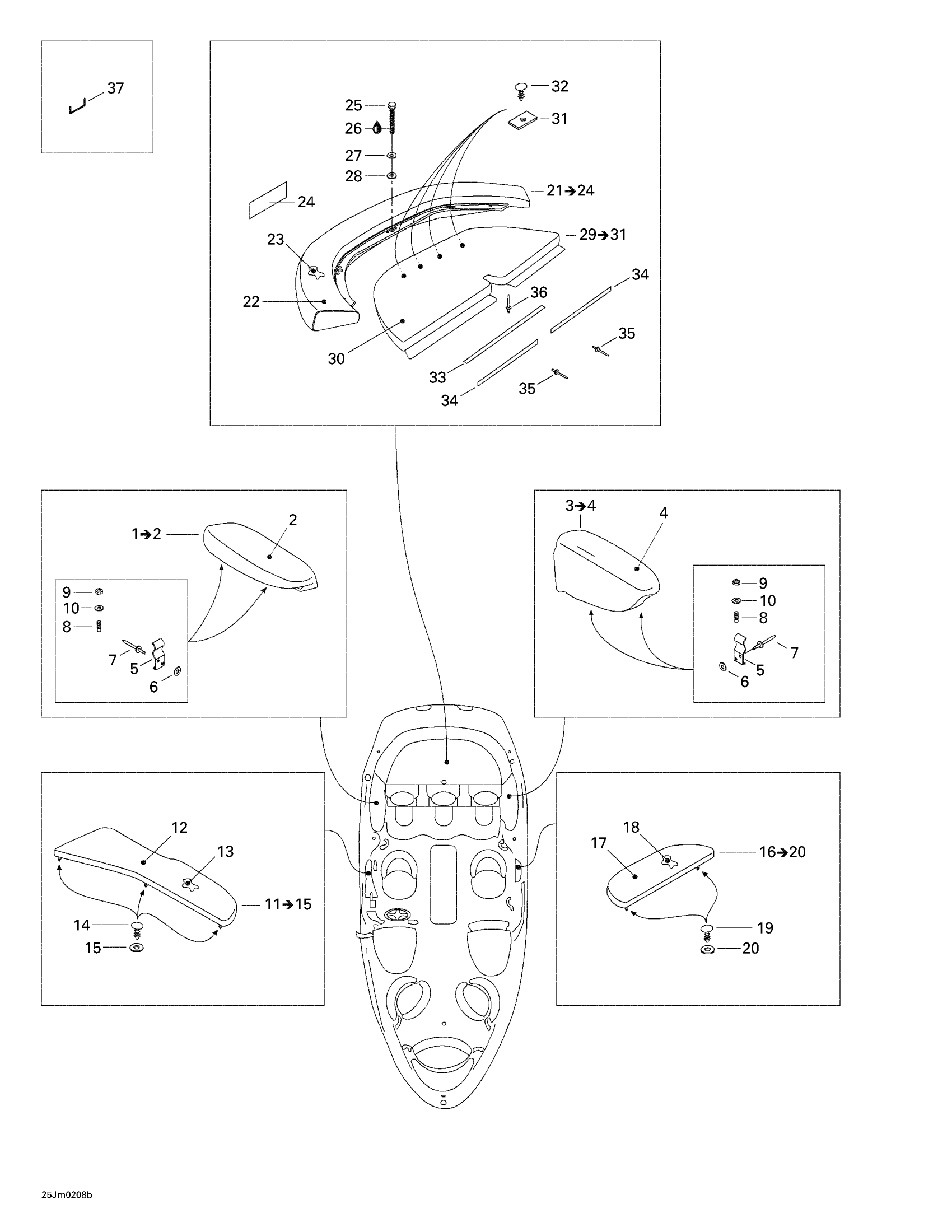

Sea-doo X-20, 5495, 2002 09- Seat (platform And Armrest) Diagram
#
Description
Price
1
RH Back Armrest Ass'y | Includes 1 - 2.
204611203
Unavailable
2
RH Armrest Cover
204611204
Unavailable
3
LH Back Armrest Ass'y | Includes 3 - 4.
204611205
Unavailable
4
LH Armrest Cover
204611206
Unavailable
5
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
6
Stainless Flat Washer M6
234061600
$0.33
7
Pop Rivet 3/16"
293150043
$2.09
8
Socket Set Screw M5 X 40, Scotch Grip
206254069
Unavailable
9
Hex. Elastic Nut M5 | X
232551600
$1.15
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
RH Elbow Padding Ass'y | Includes 57 - 61.
204611207
Unavailable
12
RH Elbow Padding Cover (Metalic Quartz
204611208
Unavailable
13
Neoprene Foam
204610121
Unavailable
14
Black, Dart
293730006
$0.99
15
Flat Washer M6, Stainless
234062600
$0.77
16
LH Elbow Padding Ass'y | Includes 62 - 66.
204611209
Unavailable
17
LH Elbow Padding Cover (Metalic Quartz)
204611210
Unavailable
18
Neoprene Foam
204610123
Unavailable
19
Black, Dart
293730006
$0.99
20
Flat Washer M6, Stainless
234062600
$0.77
21
Spoiler Ass'y | Includes 21 - 24.
204611213
Unavailable
22
Spoiler Cover
204611214
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Staple Cover, Meter
204610184
Unavailable
25
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
26
Loctite 243, 10 ml
293800060
$21.49
27
Flat Washer M6, Stainless
234062600
$0.77
28
Flat Washer 10 mm, Stainless
234002600
$2.22
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Platform Cover (Metalic Quartz)
204610717
Unavailable
31
Strap
204610194
Unavailable
32
Black, Dart
293730006
$0.99
33
Velcro 25 Mm X 940 Mm
204611298
Unavailable
34
Velcro 25 Mm X 635 Mm
204611299
Unavailable
35
Avdel Rivet 3/16"
293150037
$0.56
36
Pop Rivet 3/16"
293150008
$0.50
37
Staple
293730005
Unavailable
