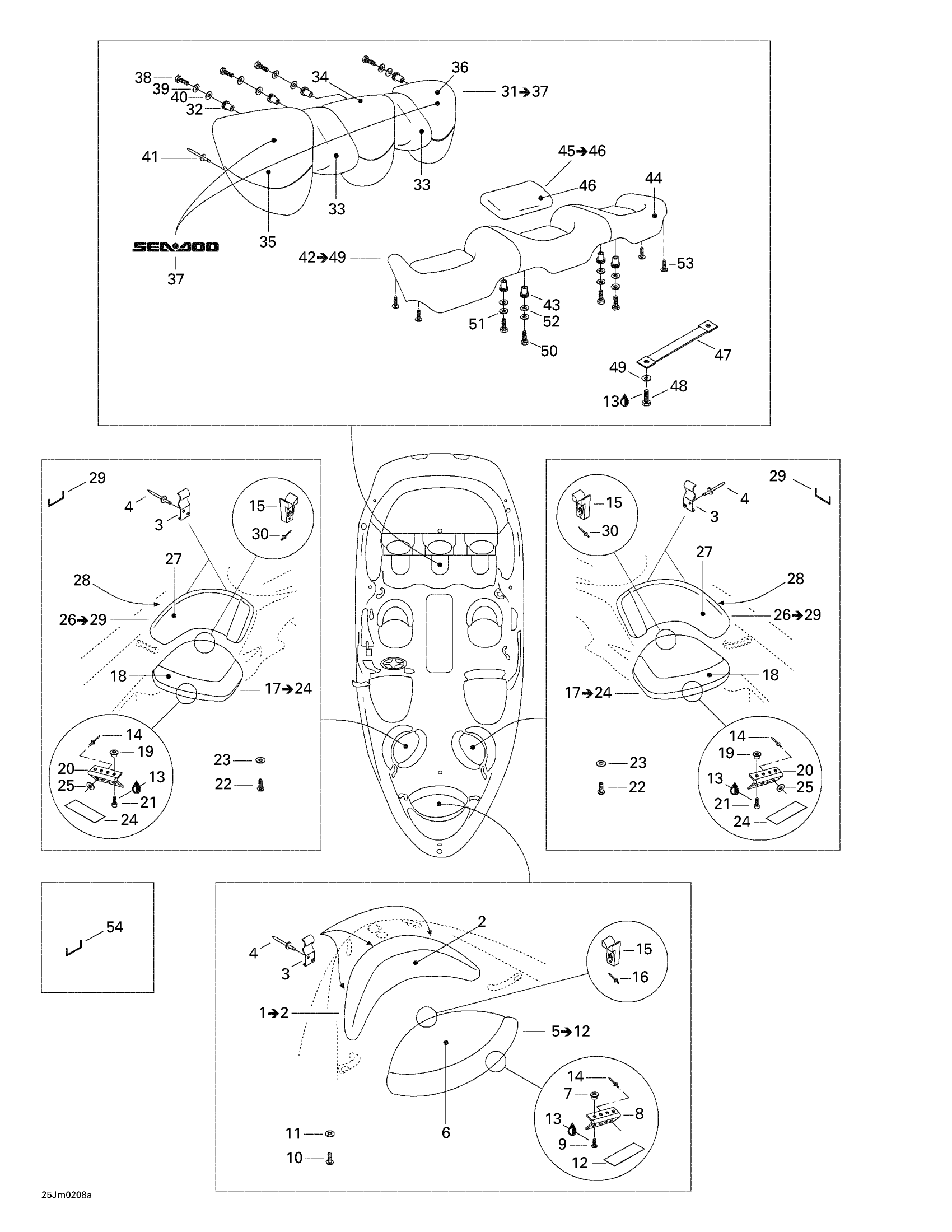

Sea-doo X-20, 5495, 2002 09- Seat (front And Rear) Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204611188
Unavailable
2
Front Backrest Cover
204611189
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Pop Rivet 3/16"
293150043
$2.09
5
Front Seat Ass'y | Includes 5 - 12.
204610689
Unavailable
6
Front Seat ass'y | Includes 6 - 12.
204610989
Unavailable
7
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
8
Seat Hinge
204610940
Unavailable
9
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership
204100045
Unavailable
10
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
11
Flat Washer 4 mm, Stainless
234042600
$1.15
12
Hinge Cover
204610972
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Pop Rivet 3/16"
293150043
$2.09
15
Seat Latch
204610999
Unavailable
16
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
17
LH Front Seat Ass'y | Includes 17 - 24.
204610692
Unavailable
RH Front Seat Ass'y
204610694
Unavailable
18
LH Front Seat Cover
204610964
Unavailable
RH Front Seat Cover
204610971
Unavailable
19
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
20
Seat Hinge
204610940
Unavailable
21
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership
204100045
Unavailable
22
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
23
Flat Washer 4 mm, Stainless
234042600
$1.15
24
Hinge Cover
204610972
Unavailable
25
Flat Washer M5, Stainless
234051600
$0.77
26
LH Backrest Ass'y | Includes 26 - 29.
204611656
Unavailable
RH Backrest Ass'y
204611659
Unavailable
27
LH Backrest Cover
204611657
Unavailable
RH Backrest Cover
204611660
Unavailable
28
Was 293200017 Neoprene Seal
219704365
$149.99
29
Staple 1/4"
293730025
Unavailable
30
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
31
Rear Backrest Ass'y | Includes 31 - 37.
204611663
Unavailable
32
Anchor Washer
204100005
Unavailable
33
Rear Bump Cover
204611197
Unavailable
34
Backrest Cover (Metalic Quartz)
204610697
Unavailable
35
RH Backrest Cover (Metalic Quartz)
204610698
Unavailable
36
LH Backrest Cover (Metalic Quartz)
204610699
Unavailable
37
Sea-Doo Logo
204900783
Unavailable
38
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
Flat Washer 8 mm, Stainless
234082600
$2.43
41
RIVET - Call your local BRP dealership
293150065
Unavailable
42
Rear Seat Ass'y | Includes 42 - 49.
204611198
Unavailable
43
Anchor Washer
204100005
Unavailable
44
Rear Seat Cover
204611199
Unavailable
45
Rear Seat Pillow Ass'y | Includes 40 - 41.
204611200
Unavailable
46
Rear Seat Pillow Cover
204611201
Unavailable
47
Rear Seat Strap
204611202
Unavailable
48
Hex. Screw M6 X 16
207161660
$1.59
49
Flat Washer M6, Stainless
234062600
$0.77
50
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
51
Flat Washer M6, Stainless
234062600
$0.77
52
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
53
Dart
293730021
$7.79
54
Staple
293730005
Unavailable
