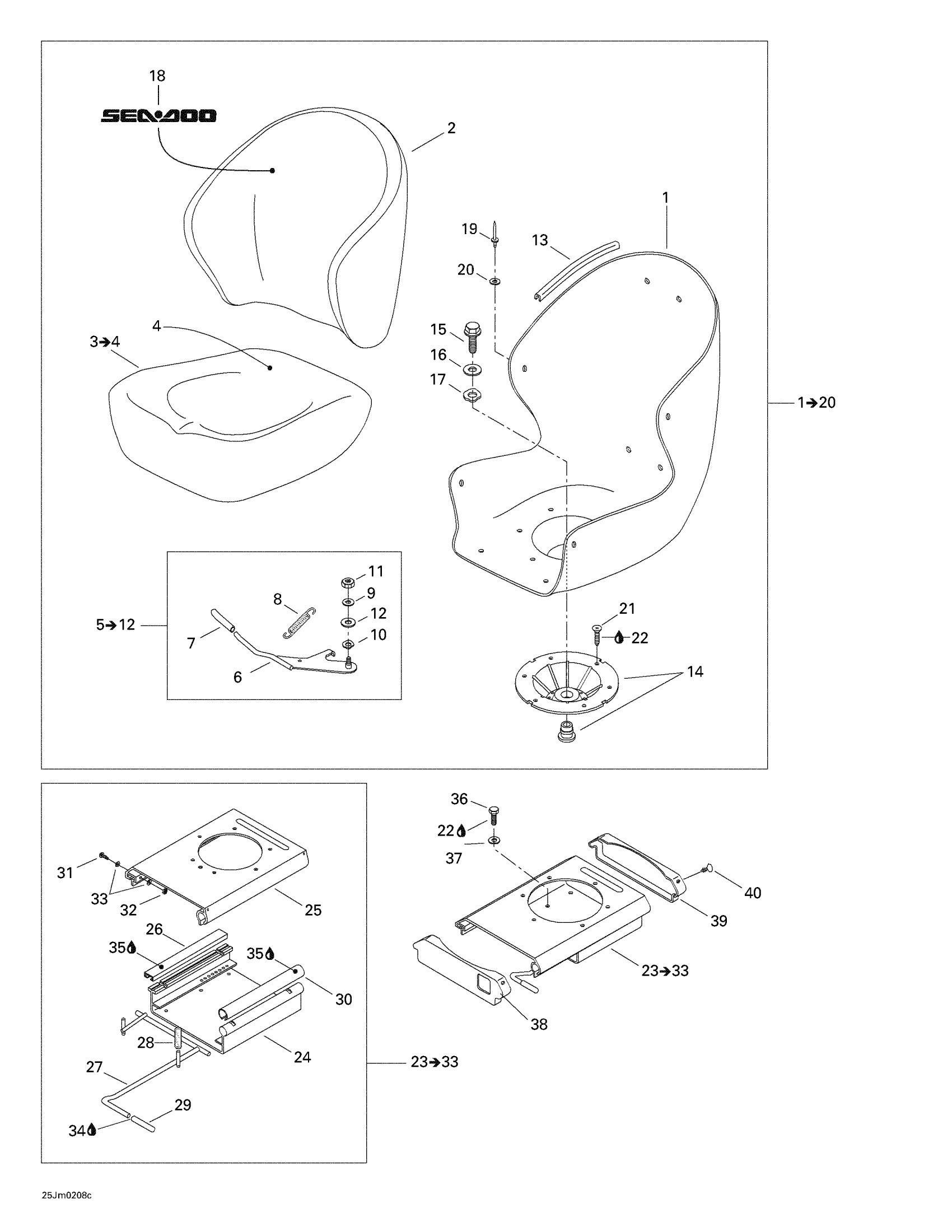

Sea-doo X-20, 5495, 2002 09- Seat (driver And Passenger) Diagram
#
1
Driver Seat Ass'y | Includes 1 - 20.
204611661
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Backrest Cushion (Metalic Quartz)
295501058
Unavailable
3
Seat Cushion (Metalic Quartz)
204611280
Unavailable
4
Cover Cushion
204611288
Unavailable
5
Lever Arm Ass’y
204610523
Unavailable
6
Lever Arm
204610524
Unavailable
7
Handle
204610348
Unavailable
8
SPRING - Call your local BRP dealership
204610349
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Washer
211200059
Unavailable
11
Hex. Elastic Stop Nut M6
232561600
$1.15
12
Washer (Nylon)
204610440
Unavailable
13
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
14
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
15
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
16
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
17
WASHER - Call your local BRP dealership
293200056
Unavailable
18
Sea-Doo Logo
204900851
Unavailable
19
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
20
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
21
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
22
Loctite 243, 10 ml
293800060
$21.49
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Lower Part
269500636
Unavailable
25
Upper Part
269500637
Unavailable
26
Rectangular Bushing
269500638
Unavailable
27
Rod Ass'y
269500639
Unavailable
28
Spring
269500640
Unavailable
29
Handle
204610348
Unavailable
30
Circle Bushing
269500642
Unavailable
31
Hex. Screw M6 X 50
207065060
$2.22
32
Hex. Elastic Stop Nut M6
232561600
$1.15
33
Stainless Flat Washer M6
234061600
$0.33
34
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
35
Synthetic Grease, 400 G
293550010
Unavailable
36
Hex. Screw M6 X 35
207163560
$1.49
37
Flat Washer M6, Stainless
234062600
$0.77
38
Front Protector
204610375
Unavailable
39
Rear Protector
204610376
Unavailable
40
Black, Dart
293730006
$0.99
