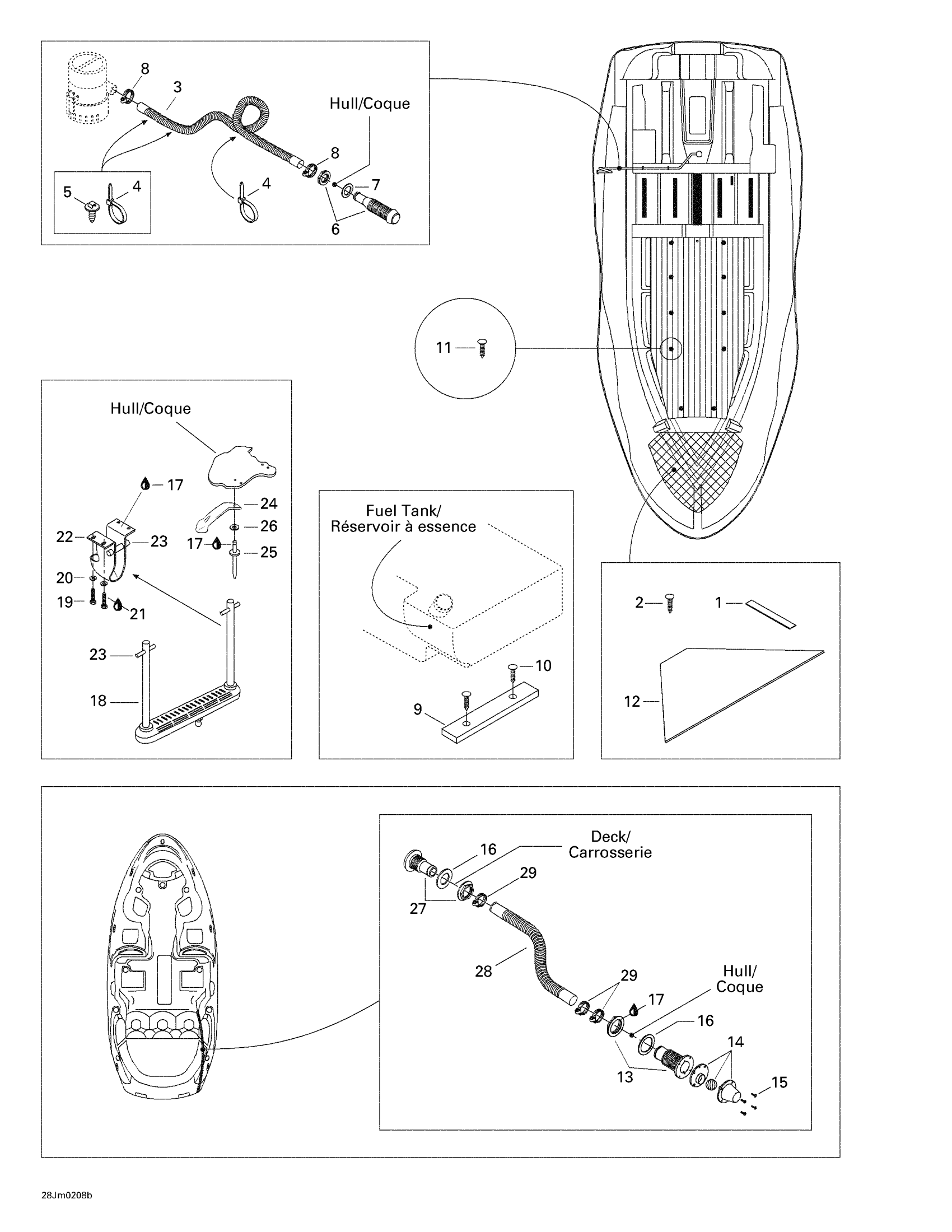

Sea-doo X-20, 5495, 2002 Body And Accessories 2 Diagram

#

Description
Price

1

Trim Anchor Storage

204050234

Unavailable

2

Black, Dart

293730006

$0.99

3

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

4

Tie-Rap 180 mm

414115200

$0.11

5

Mount Dart

293730040

$1.04

6

Fitting

293710162

$13.49

7

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

8

Tridon Clamp

293650016

$10.99

9

Rubber Pad

293830021

Unavailable

10

Black, Dart

293730006

$0.99

11

Black, Dart

293730006

$0.99

12

Anchor Storage (Black)

204060622

Unavailable

13

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

14

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

15

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

16

GASKET - Call your local BRP dealership

292800106

Unavailable

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

LADDER - Call your local BRP dealership

204060187

Unavailable

19

Hex. Screw M6 X 35

207163560

$1.49

20

Lock Washer Helical M6

234161601

$1.15

21

Loctite 243, 10 ml

293800060

$21.49

22

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

23

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

24

Hood Latch

570027100

$13.49

25

Pop Rivet 3/16"

293150013

$1.37

26

Flat Washer 5 mm, Stainless

234052600

$0.77

27

FITTING - Call your local BRP dealership

293710060

Unavailable

28

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

29

Norma Clamp

293650074

$17.05

30

Ballast Sack

204060664

Unavailable

31

Ballast Sack Pump

204470658

Unavailable
