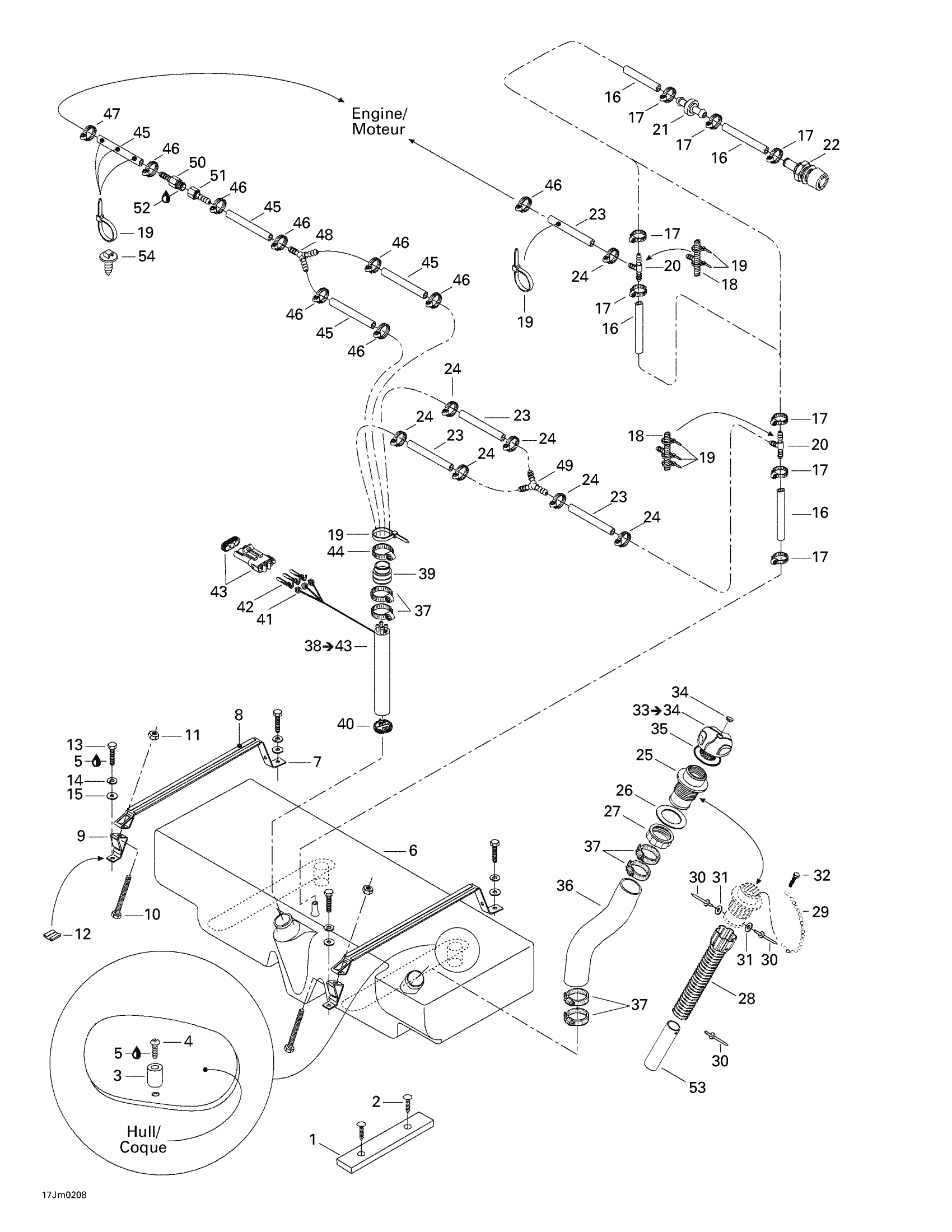

Sea-doo X-20, 5495, 2002 Fuel System Diagram

#

Description
Price

1

Rubber Pad

293830021

Unavailable

2

Black, Dart

293730006

$0.99

3

Rubber Bumper

204560039

Unavailable

4

Phillips Screw M5 X 35

208653560

$2.22

5

Loctite 271, 10 ml

293800005

$26.99

6

Fuel Tank, Plastic

204560073

Unavailable

7

Fuel Tank Strap

204560189

Unavailable

8

Protector Pad

204560037

Unavailable

9

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.48

12

Protecteur Pad

204560027

Unavailable

13

Hex. Screw M8 X 30

207183060

$1.58

14

Lock Washer 8 mm, Stainless

234181601

$0.55

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

T-Fitting

204560038

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

25

Filler Neck

275500247

Unavailable

26

Gasket

293250029

$14.82

27

Filler Neck Nut, Fuel

211100012

$14.22

28

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

29

Oil Cap Chain

275500015

Unavailable

30

Rivet 1/8”

293150057

Unavailable

31

Flat Washer M3, Stainless

234032600

$0.55

32

Screw K40 X 10

241140060

$1.48

33

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

34

Black, Snap Cap

293000034

$9.39

35

Gasket

293250017

Unavailable

36

Filler Neck Hose, 240 Efi | 5171 (240 EFI)

204560162

Unavailable

37

Norma Clamp

293650081

$12.18

38

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

39

Fuel Tube Adaptor

204560066

Unavailable

40

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

41

Wire Seal

278000218

$4.39

42

Female Terminal

278000223

$3.19

43

Male Housing, 3 Circuits

278000273

$9.59

44

Norma Clamp

293650077

$7.41

45

Hose 5/16”, Meter

204560177

Unavailable

46

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

47

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

48

Y-Fitting

204550001

Unavailable

49

Y-Fitting

293710059

$9.69

50

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

51

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

52

Was 293800013 Loctite 56765

219704454

$65.99

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Mount Dart

293730040

$1.04
