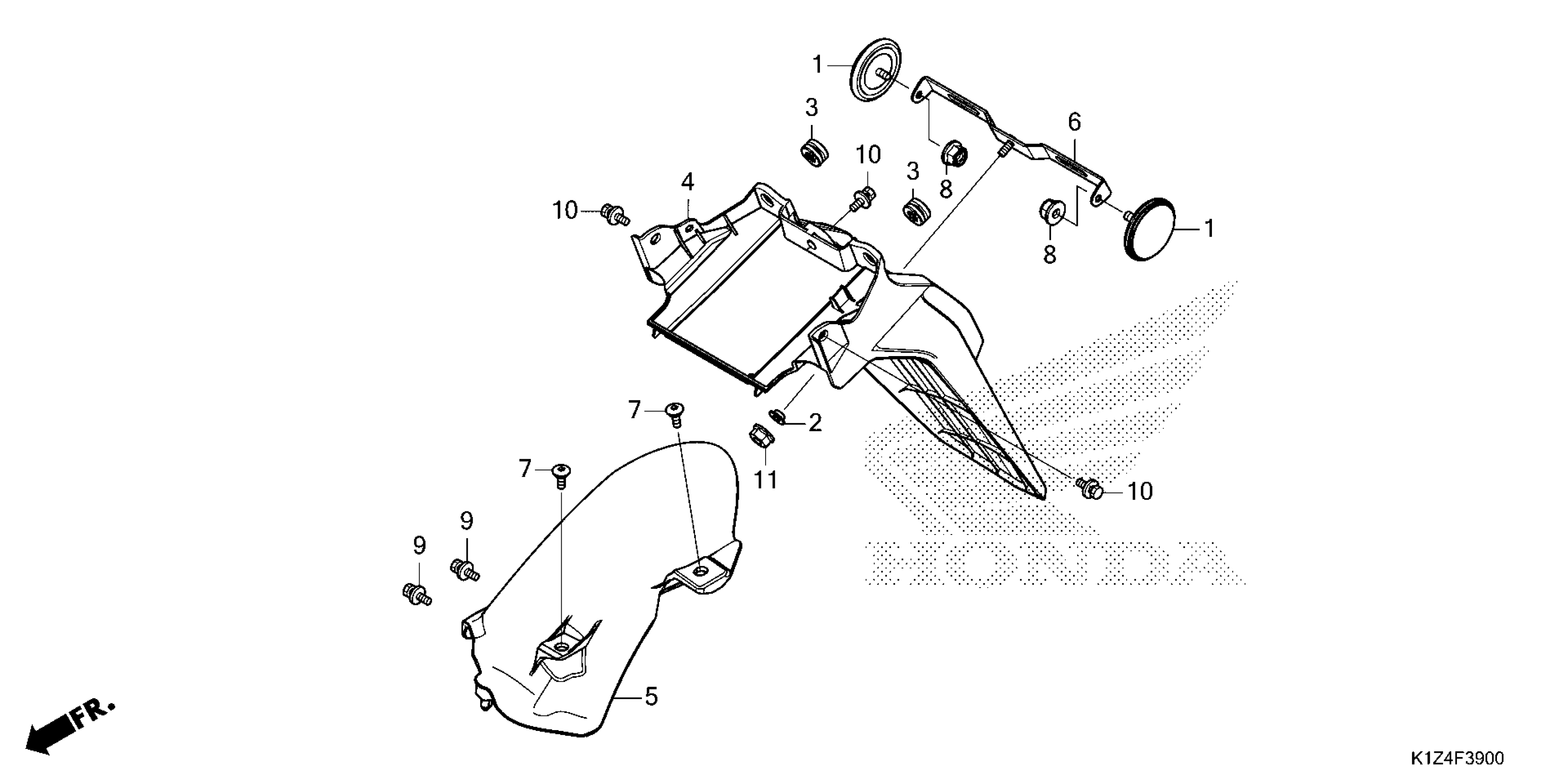

Honda WW160AAC (24) MOTOR SCOOTER, VNM, VIN# RLHKF472-RY200001 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

FENDER A, RR.

80101-K1Z-A00

$162.54

FENDER C, RR.

80103-K1Z-J10

$2.79

BRACKET, NUMBER PLATE

84700-K1Z-A00

$8.34

BOLT, SOCKET (6X18)

90101-K29-900

$3.33

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

NUT, FLANGE (6MM)

94050-06080

$1.49
