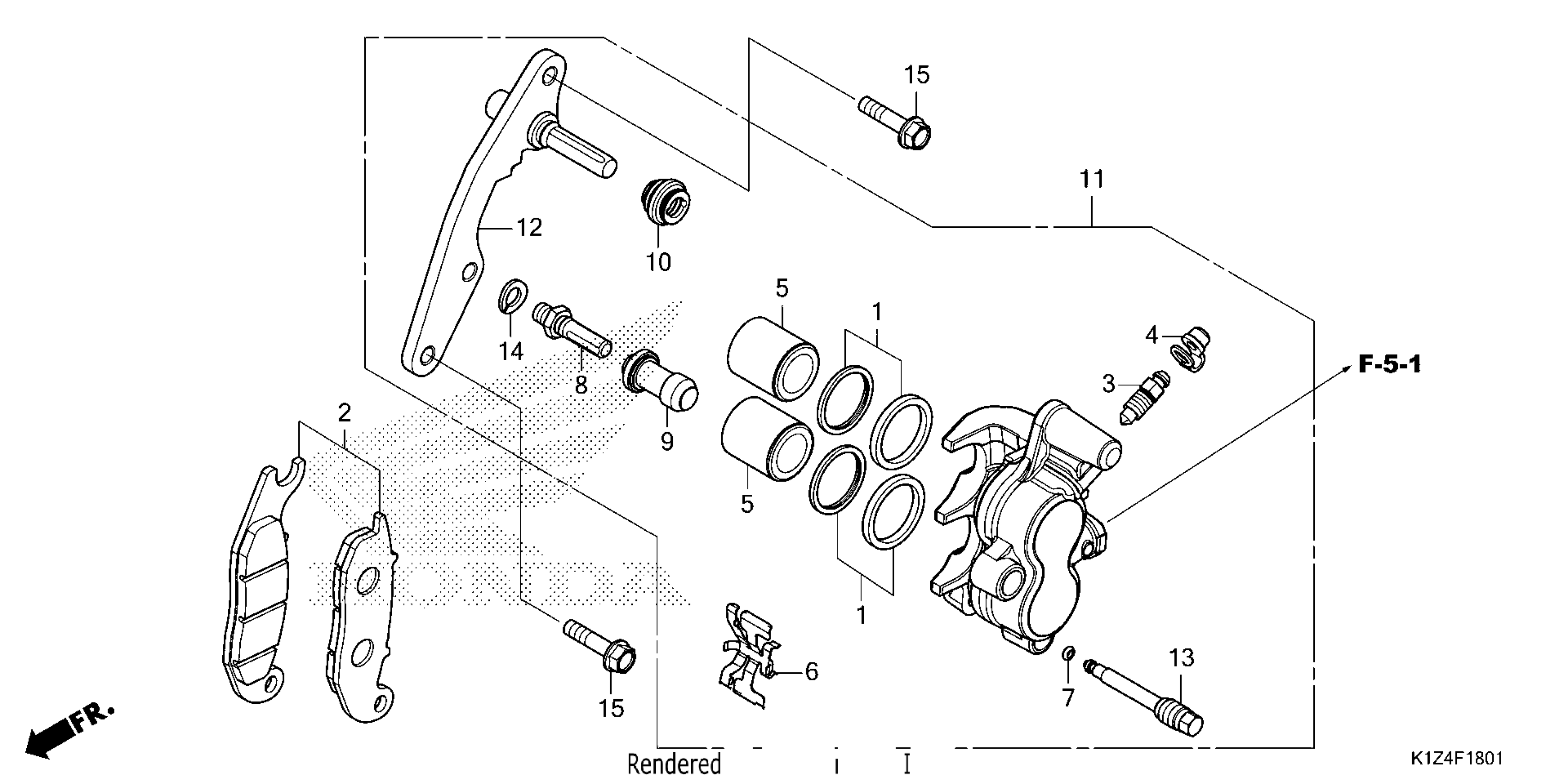

Honda WW150AAC (22) MOTOR SCOOTER, VNM, VIN# RLHKF471-NY100001 TO RLHKF471-NY199999 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

PAD SET, FR. BRAKE (NISSIN)

06455-K84-902

$8.32

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-GE2-006

$39.76

SPRING, PAD

45108-KPH-951

$1.76

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-K1Z-J11

$53.63

BRACKET SUB-ASSY., FR. CALIPER

45190-K1N-V11

$16.41

PIN, HANGER

45215-KPH-951

$2.65

WASHER, WAVE (NISSIN)

45216-166-006

$2.16

BOLT, FLANGE (8X28)

90131-K97-T00

$0.77
