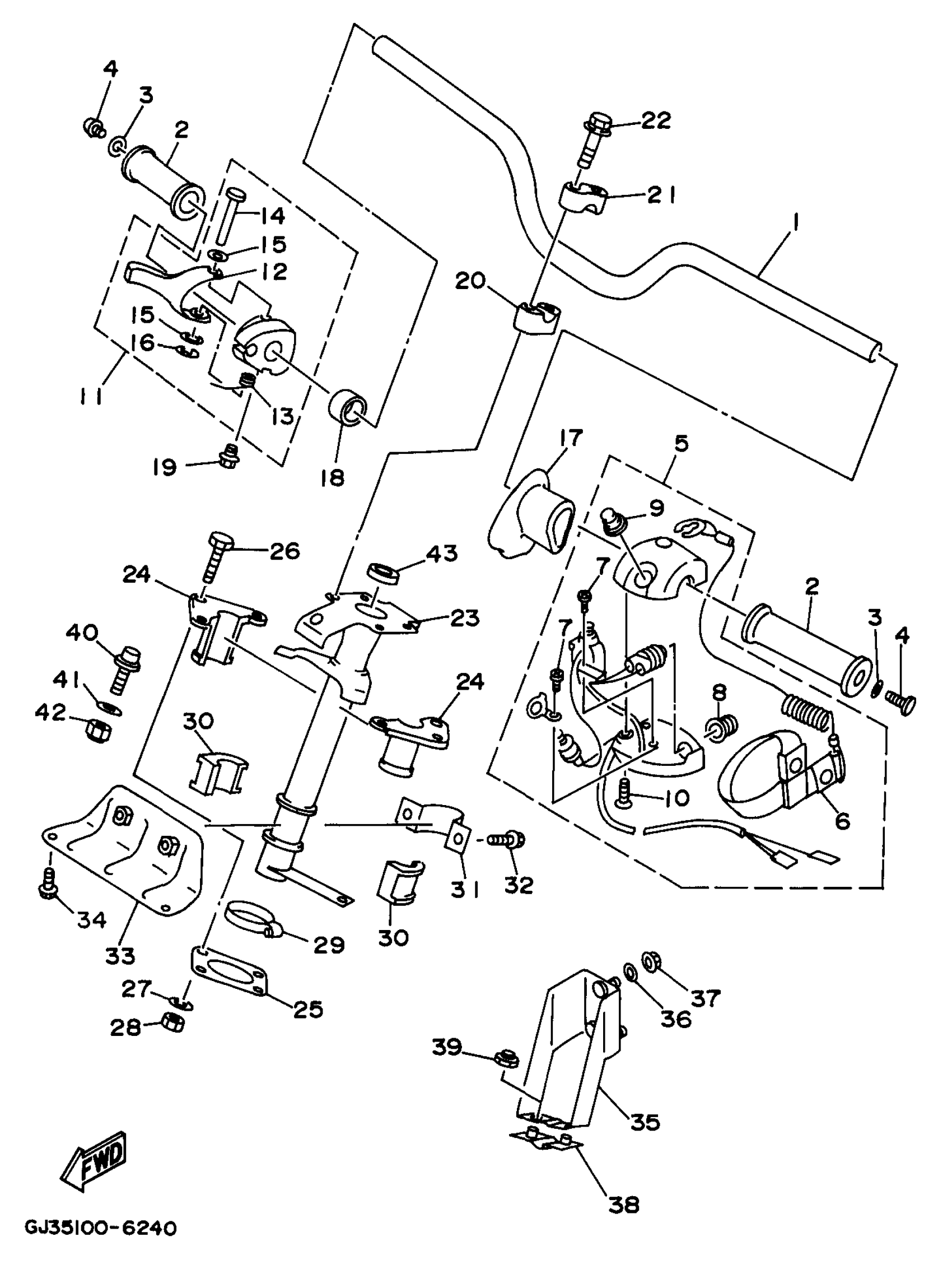

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 STEERING 1 Diagram
#
1
HANDLE
GJ1-U1552-03-00
Unavailable
2
GRIP, HANDLE 1
EW2-61553-00-00
Unavailable
3
WASHER, PLATE
90201-05800-00
Unavailable
4
SCREW
90149-059U5-00
Unavailable
5
SWITCH BOX ASSY
GJ1-68310-01-00
Unavailable
6
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
7
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
8
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
9
. START BUTTON COMP
FK7-68313-02-00
Unavailable
10
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
11
THROTTLE LEVER ASSY
EW2-67250-02-00
Unavailable
12
. LEVER, THROTTLE
EW2-67255-00-00
Unavailable
13
. SPRING
EW2-67256-00-00
Unavailable
14
. SHAFT
EW2-67257-01-00
Unavailable
15
WASHER, PLAIN (646)
92990-05600-00
$0.80
16
CIRCLIP (EU0)
99080-04600-00
Unavailable
17
SPACER
GJ3-U143G-00-00
Unavailable
18
SPACER(1LX)
90560-22281-00
Unavailable
19
SCREW, WITH WASHER
90159-059U2-00
Unavailable
20
HOLDER, HANDLE UPPER
EU0-23814-02-00
Unavailable
21
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
22
BOLT, WITH WASHER
90119-08925-00
Unavailable
23
COLUMN,STEERING
GH3-61541-00-00
Unavailable
24
BEARING, COLUMN
GH1-6141B-00-00
Unavailable
25
SEAL, RUBBER
GH1-6143C-30-00
Unavailable
26
BOLT(JF7)
97080-06030-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
NUT, SELF-LOCKING
95720-06300-00
Unavailable
29
BAND, HOSE 42
90601-142U6-00
Unavailable
30
BEARING, STEERING
GH1-6141D-01-00
Unavailable
31
JOINT, BEARING
EU0-61588-00-00
Unavailable
32
BOLT, WITH WASHER
90119-08800-00
Unavailable
33
BRACKET, STEERING
GH3-61433-00-00
Unavailable
34
BOLT, WITH WASHER
90119-08800-00
Unavailable
35
STOPPER, CABLE
GH3-61467-00-00
Unavailable
36
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
37
NUT, FLANGE
95780-06300-00
Unavailable
38
STOPPER, CABLE
GH3-61468-00-00
Unavailable
39
NUT, SELF-LOCKING
95720-06300-00
Unavailable
40
PIN, STOPPER
FN8-6131B-00-00
Unavailable
41
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
42
NUT, NYLON (FN8)
95720-10300-00
Unavailable
43
PACKING, STEERING COLUMN
GH1-61469-00-00
Unavailable
