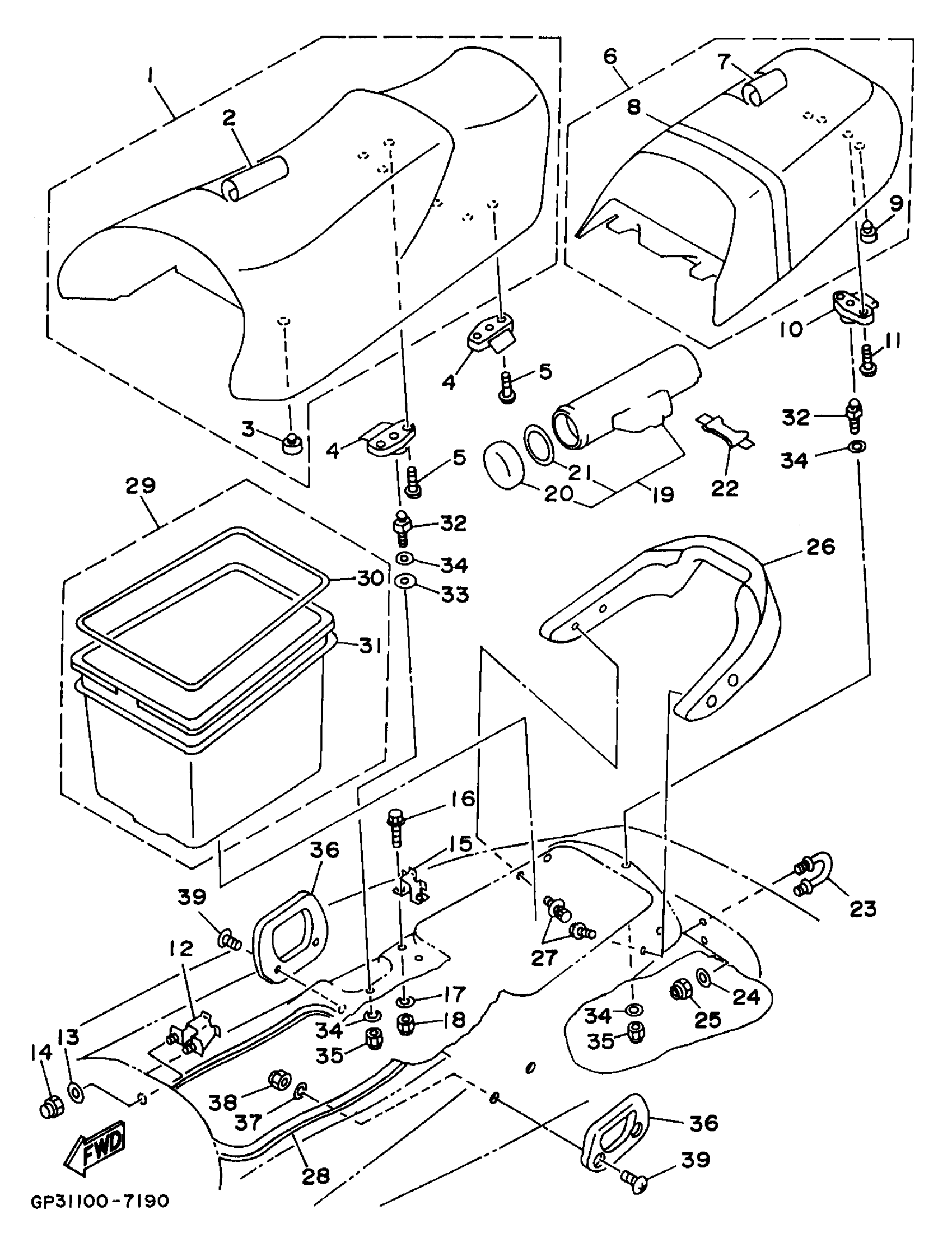

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASY

GH3-U371A-00-00

Unavailable

2

. COVER, SEAT 1

GH3-U371B-00-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSEMBLY

GH3-U372A-00-00

Unavailable

7

. COVER, SEAT

GH3-U372B-00-00

Unavailable

8

. BAND, SEAT COMP

GH3-U373D-00-00

Unavailable

9

STOPPER MAIN STAND

278-27114-00-00

$7.90

10

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

11

BOLT, WITH WASHER

90119-06808-00

$2.16

12

STAY, SEAT 1

GH3-6378C-00-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

14

NUT, SELF-LOCKING

95720-06300-00

$1.82

15

STAY, SEAT 2

GJ3-6378D-00-00

$27.99

16

BOLT, WITH WASHER

90119-06900-00

$4.09

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

18

NUT, SELF-LOCKING

95720-06300-00

$1.82

19

CASE 2 ASSY.

EW2-U5920-00-00

Unavailable

20

. CAP, CASE

EW2-U5912-01-00

Unavailable

21

PACKING, CASE

EW2-U5913-01-00

Unavailable

22

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

23

BOW EYE 2 (C)

A00-61626-40-00

$43.92

24

WASHER, PLAIN

92990-08200-00

$2.36

25

. NUT, SELF-LOCKING

95720-08300-00

$3.33

26

GRIP, HAND

GH3-U271B-20-00

Unavailable

27

BOLT WITH WASHER (EW2)

90119-06920-00

Unavailable

28

PACKING

GJ3-U2664-02-00

Unavailable

29

UNDER LOCKER ASSY

GJ3-U474A-01-00

Unavailable

30

. PACKING 3

GJ3-6266B-00-00

Unavailable

31

PACKING 4

GJ3-U266C-02-00

$24.98

32

PIN

GH1-63774-01-00

$22.71

33

TAPE

GJ3-U5578-00-00

Unavailable

34

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

35

NUT, NYLON (FN8)

95720-10300-00

Unavailable

36

GRIP,ASSIST

GJ3-U271E-10-00

$57.62

37

WASHER, PLAIN

92990-08200-00

$2.36

38

. NUT, SELF-LOCKING

95720-08300-00

$3.33

39

SCREW

90149-08993-00

Unavailable
