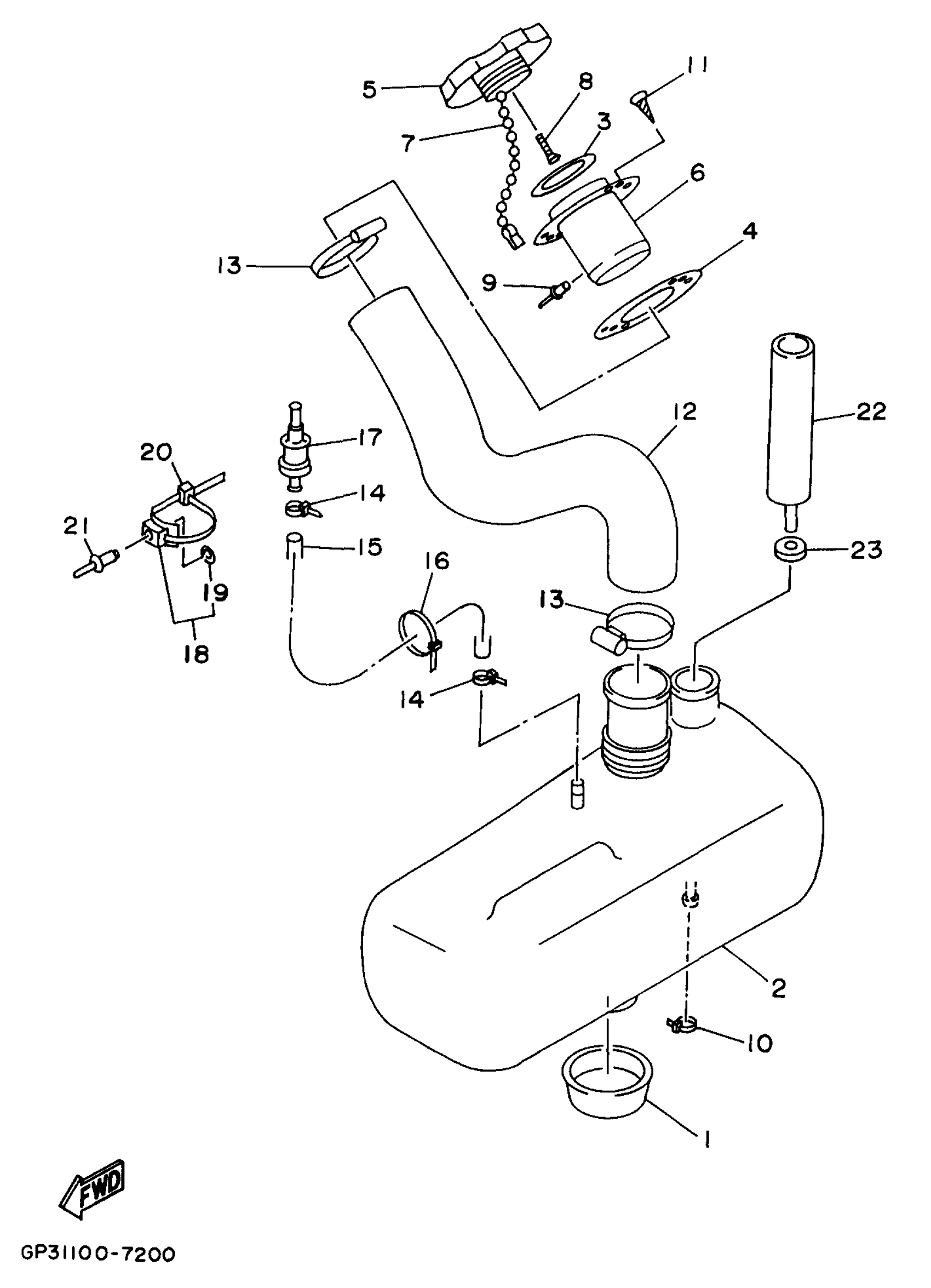

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 OIL TANK Diagram

#

Description
Price

1

MAT, 3

GH1-6759D-00-00

Unavailable

2

TANK, OIL

GJ3-U775B-02-00

Unavailable

3

PACKING, OIL CAP

GJ3-U778C-00-00

$1.80

4

PACKING, OIL FILLER

GJ3-U778E-00-00

$3.51

5

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

6

SOCKET, OIL FILLER

GJ3-U778D-00-00

$4.63

7

CHAIN BALL

EU0-U7835-00-00

$8.19

8

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

9

. RIVET, BLIND

90267-40935-00

$1.29

10

CLAMP

90465-10098-00

$2.24

11

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.34

12

HOSE, OIL FILLER

GJ3-U776C-00-00

Unavailable

13

BAND, HOSE 52

90601-152U3-00

$5.96

14

CLAMP

90465-10098-00

$2.24

15

HOSE

90699-50100-00

$26.85

16

BAND

90601-200U2-00

$3.29

17

. ROLL OVER VALVE

FJ0-67766-00-00

$53.72

18

CLAMP COMP (EU0)

90600-91736-00

Unavailable

19

. WASHER, PLAIN

90201-05925-00

Unavailable

20

BAND (EU0)

90601-20009-00

$6.27

21

RIVET, BLIND

90267-48802-00

$1.98

22

STRAINER, OIL

6J8-13411-00-00

$25.83

23

GASKET, STRAINER COVER

6J8-13414-00-00

$2.80
