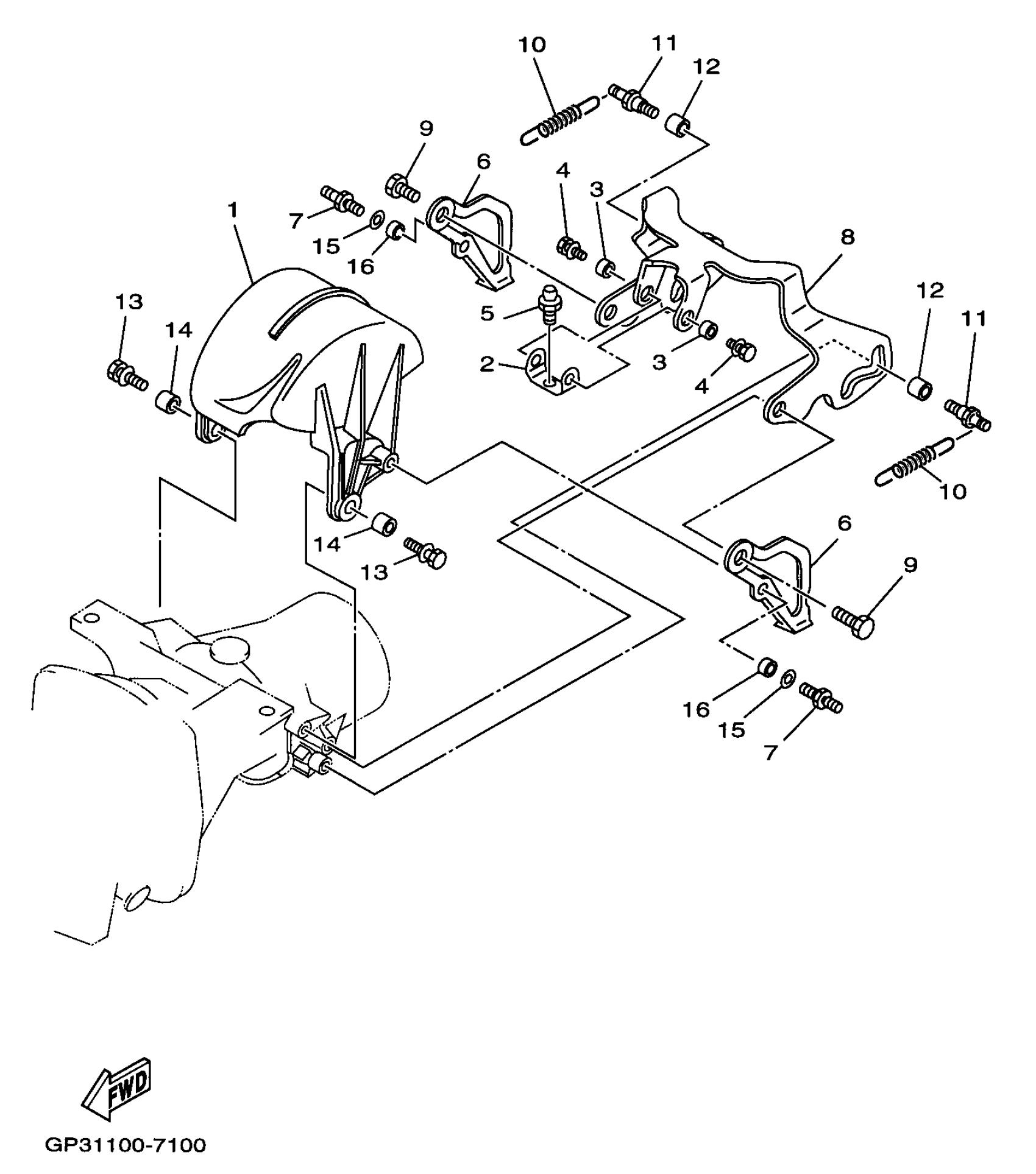

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6R8-51314-02-94

Unavailable

2

LEVER, SHIFT ROD

6R8-44125-00-00

Unavailable

3

COLLAR(6R8)

90387-06M24-00

Unavailable

4

BOLT, WITH WASHER

90119-069UA-00

Unavailable

5

BOLT, JOINT

6R8-42316-00-00

Unavailable

6

PLATE 1

64T-51345-00-00

Unavailable

7

PIN

65A-G4184-00-00

Unavailable

8

LEVER, SHIFT ROD

64T-44121-00-00

Unavailable

9

BOLT

90109-089U1-00

Unavailable

10

SPRING, TENSION

90506-12M35-00

Unavailable

11

PIN

65A-G4137-00-00

Unavailable

12

COLLAR(64T)

90387-08M26-00

Unavailable

13

BOLT, WITH WASHER

90119-08841-00

Unavailable

14

COLLAR

90387-08M27-00

Unavailable

15

WASHER,PLATE

90201-068M4-00

$2.13

16

COLLAR(6R8)

90387-06M30-00

Unavailable
