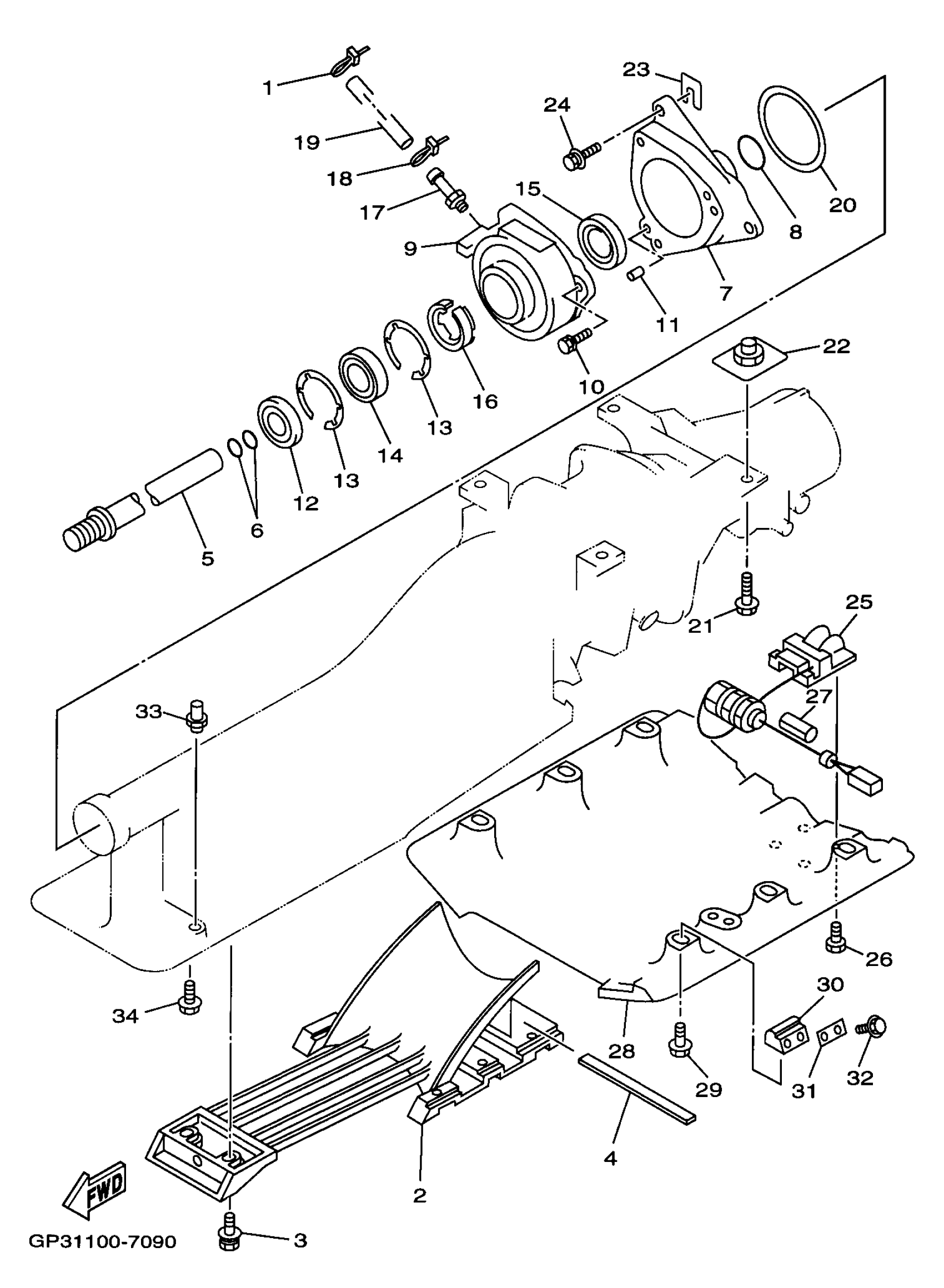

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 JET UNIT 2 Diagram
#
1
CLAMP
90465-10098-00
Unavailable
2
SCREEN, INTAKE
65R-R1333-00-00
Unavailable
3
BOLT, WITH WASHER
90119-069UC-00
Unavailable
4
. FELT, PACKING
63M-51367-00-00
Unavailable
5
SHAFT, COUPLOR
63N-51323-10-00
Unavailable
6
O-RING(6R7)
93210-17MA4-00
$7.49
7
HOUSING, BEARING
65A-G5331-00-00
Unavailable
8
O-RING
93210-35M72-00
$14.99
9
HOUSING, BEARING
61X-G5332-00-00
Unavailable
10
BOLT, WITH WASHER
90119-08841-00
Unavailable
11
PIN, DOWEL (614)
93606-12019-00
$4.24
12
OIL SEAL(62T)
93101-25M55-00
$30.99
13
CIRCLIP
93430-47M04-00
Unavailable
14
BEARING(62G)
93306-205U6-00
Unavailable
15
OIL SEAL
93101-24001-00
$31.99
16
SPACER 1
65A-G5538-00-00
Unavailable
17
NIPPLE, HOSE
61L-45378-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
HOSE (L445)
90445-09M21-00
Unavailable
20
SEAL
6K8-45127-00-00
Unavailable
21
BOLT, WITH WASHER
90119-109U8-00
Unavailable
22
NUT
90179-10925-00
Unavailable
23
SHIM (0.5)
GD0-U7249-00-05
Unavailable
23
SHIM (0.5)
GD0-U7249-00-05
Unavailable
24
BOLT, WITH WASHER
90119-08907-00
Unavailable
25
SENSOR SPEED
GJ1-U8K31-03-00
Unavailable
26
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
27
GR0MMET
GJ1-6822E-00-00
Unavailable
28
PLATE 2
GJ3-U273B-00-00
Unavailable
29
BOLT, WITH WASHER
90119-08829-00
Unavailable
30
PACKING
GJ1-62733-00-00
Unavailable
31
PACKING 1
GJ1-62663-00-00
Unavailable
32
BOLT, WITH WASHER
90119-08907-00
Unavailable
33
NUT(FJ0)
90179-06947-00
Unavailable
34
BOLT, WITH WASHER
90119-06896-00
Unavailable
