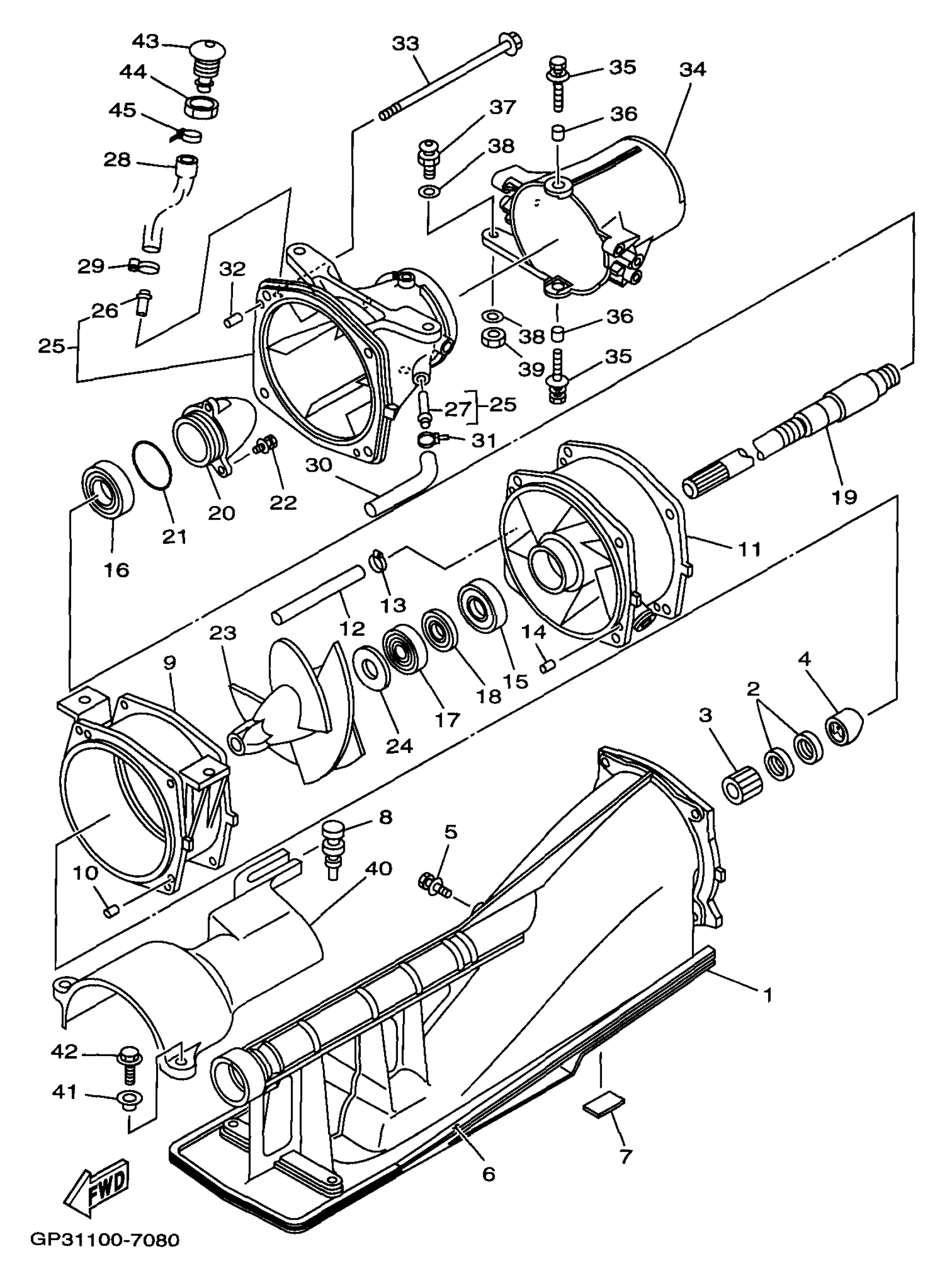

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 JET UNIT 1 Diagram
#
1
DUCT, INTAKE
65A-R1311-01-00
Unavailable
2
OIL SEAL(6R8)
93102-18M35-00
Unavailable
3
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
4
SPACER
6R8-51348-02-94
Unavailable
5
BOLT, WITH WASHER
90119-06892-00
Unavailable
6
. FELT, PACKING
6R8-51367-01-00
Unavailable
7
. FELT, PACKING
63M-51368-00-00
Unavailable
8
GROMMET(6R7)
90480-06M46-00
$12.49
9
HOUSING, IMPELLER
63M-51312-02-94
Unavailable
10
PIN, DOWEL (614)
93606-12019-00
$4.24
11
DUCT, IMPELLER
63M-51315-02-00
Unavailable
12
HOSE (L108)
90445-18M03-00
$20.99
13
BAND, HOSE 18
90601-118UF-00
Unavailable
14
PIN, DOWEL (614)
93606-12019-00
$4.24
15
BEARING
93305-205U1-00
Unavailable
16
BEARING (6K8)
93306-205U1-00
Unavailable
17
OIL SEAL(6R7)
93102-25M34-00
Unavailable
18
OIL SEAL(6R7)
93101-25M50-00
Unavailable
19
SHAFT, DRIVE
65R-45511-00-00
Unavailable
20
CAP KIT
65A-R1326-10-KT
Unavailable
21
. O-RING
93210-46M16-00
Unavailable
22
BOLT,WITH WASHER
90119-06890-00
Unavailable
23
IMPELLER
65R-R1321-12-00
Unavailable
24
SPACER
62T-51348-00-00
Unavailable
25
NOZZLE
65R-R1318-00-00
Unavailable
26
. NIPPLE
65A-R1129-00-00
Unavailable
27
NIPPLE,HOSE
65A-R1334-01-00
Unavailable
28
PIPE 1
62E-51673-00-00
Unavailable
29
BAND, HOSE 18
90601-118UF-00
Unavailable
30
HOSE (L380)
90445-14M25-00
Unavailable
31
CLAMP
90465-10098-00
Unavailable
32
PIN, DOWEL (614)
93606-12019-00
$4.24
33
BOLT,WASHER BASED
90105-088D7-00
Unavailable
34
NOZZLE,DEFLECTOR
65R-R1313-01-00
Unavailable
35
BOLT, WITH WASHER
90119-08852-00
Unavailable
36
COLLAR
90387-08M08-00
Unavailable
37
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
38
WASHER,PLATE
90201-068M4-00
Unavailable
39
NUT(650)
95380-06700-00
Unavailable
40
COVER
65R-R1381-00-00
Unavailable
41
COLLAR
90387-06M60-00
Unavailable
42
BOLT, WITH WASHER
90119-06892-00
Unavailable
43
SPOUT
FN8-6269B-00-00
Unavailable
44
NUT
EU0-61652-00-00
Unavailable
45
CLIP
90600-91755-00
Unavailable
