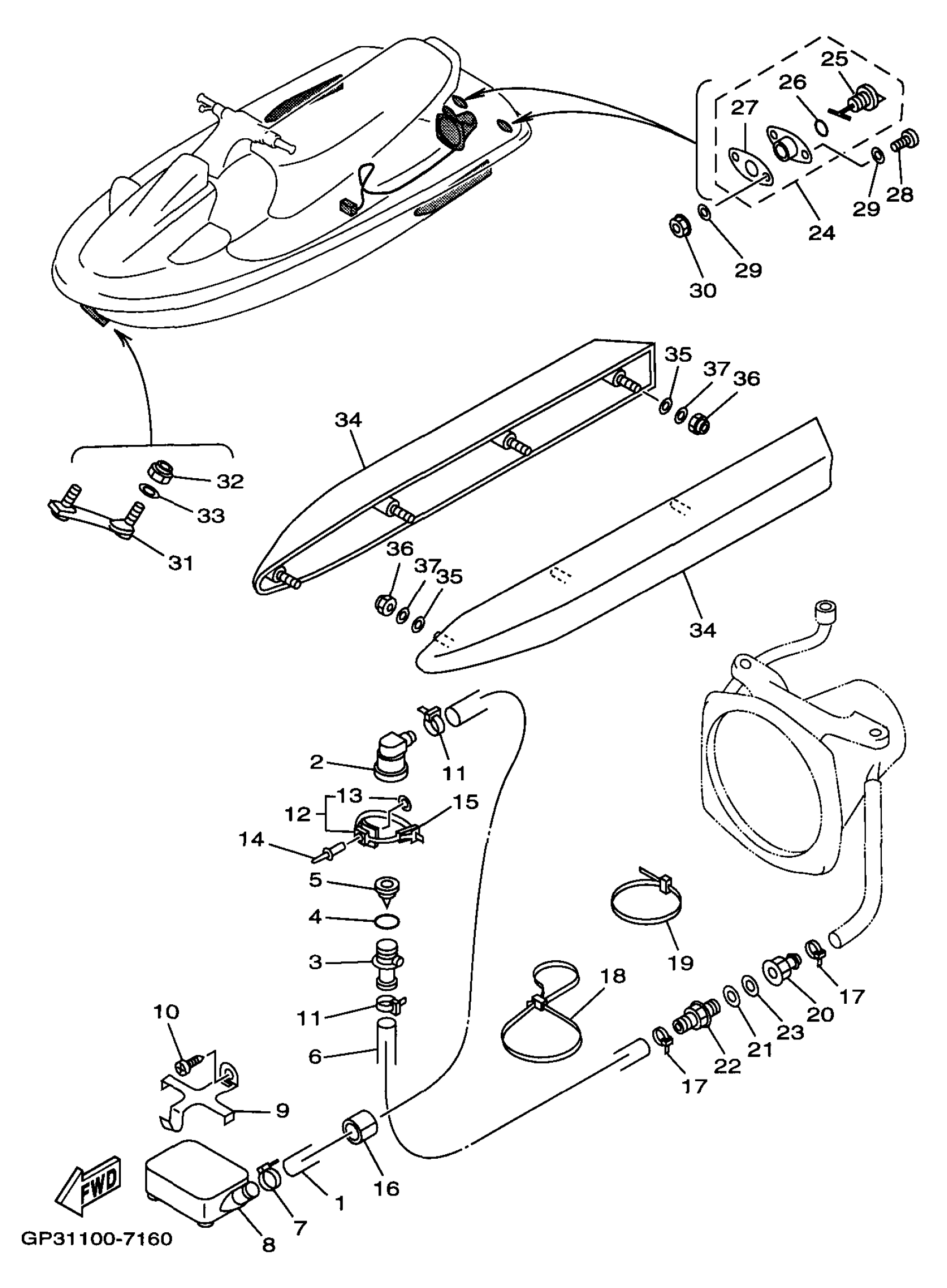

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 HULL DECK Diagram
#
1
HOSE
90445-19M01-00
Unavailable
2
JOINT, HOSE 2
63M-51165-00-00
Unavailable
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
O-RING
93210-22ME5-00
Unavailable
5
VALVE 1
63M-5316M-00-00
Unavailable
6
HOSE
90445-19M01-00
Unavailable
7
CLAMP (6E5)
90465-13M11-00
$8.49
8
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
9
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
10
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
11
BAND
90601-200U1-00
Unavailable
12
CLAMP COMP (EU0)
90600-91736-00
$8.49
13
. WASHER, PLAIN
90201-05925-00
Unavailable
14
RIVET, BLIND
90267-489U7-00
Unavailable
15
BAND (EU0)
90601-20009-00
Unavailable
16
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
17
BAND
90601-200U1-00
Unavailable
18
NYLON CLIP 1(GD0)
90601-20016-00
Unavailable
19
BAND
90601-200U4-00
Unavailable
20
CONNECTION, THRU-HULL 1/4
90604-80759-00
Unavailable
21
GASKET
90430-13909-00
Unavailable
22
CONNECTION, THROUGH HALL (GD0)
90604-80775-00
Unavailable
23
GASKET
90430-13909-00
Unavailable
24
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
25
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
26
. O-RING
EU0-62283-00-00
Unavailable
27
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
28
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
29
. WASHER, PLAIN
92990-05200-00
Unavailable
30
NUT, FLANGE
95720-05300-00
Unavailable
31
BOWEYE 1
FN8-U1624-00-00
Unavailable
32
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
33
WASHER, PLAIN
92990-08200-00
Unavailable
34
STABILIZER (BLACK)
GH3-U883M-30-00
Unavailable
35
PACKING,STABILIZER
GU2-U883U-00-00
Unavailable
36
NUT, SELF-LOCKING
95720-06300-00
Unavailable
37
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
