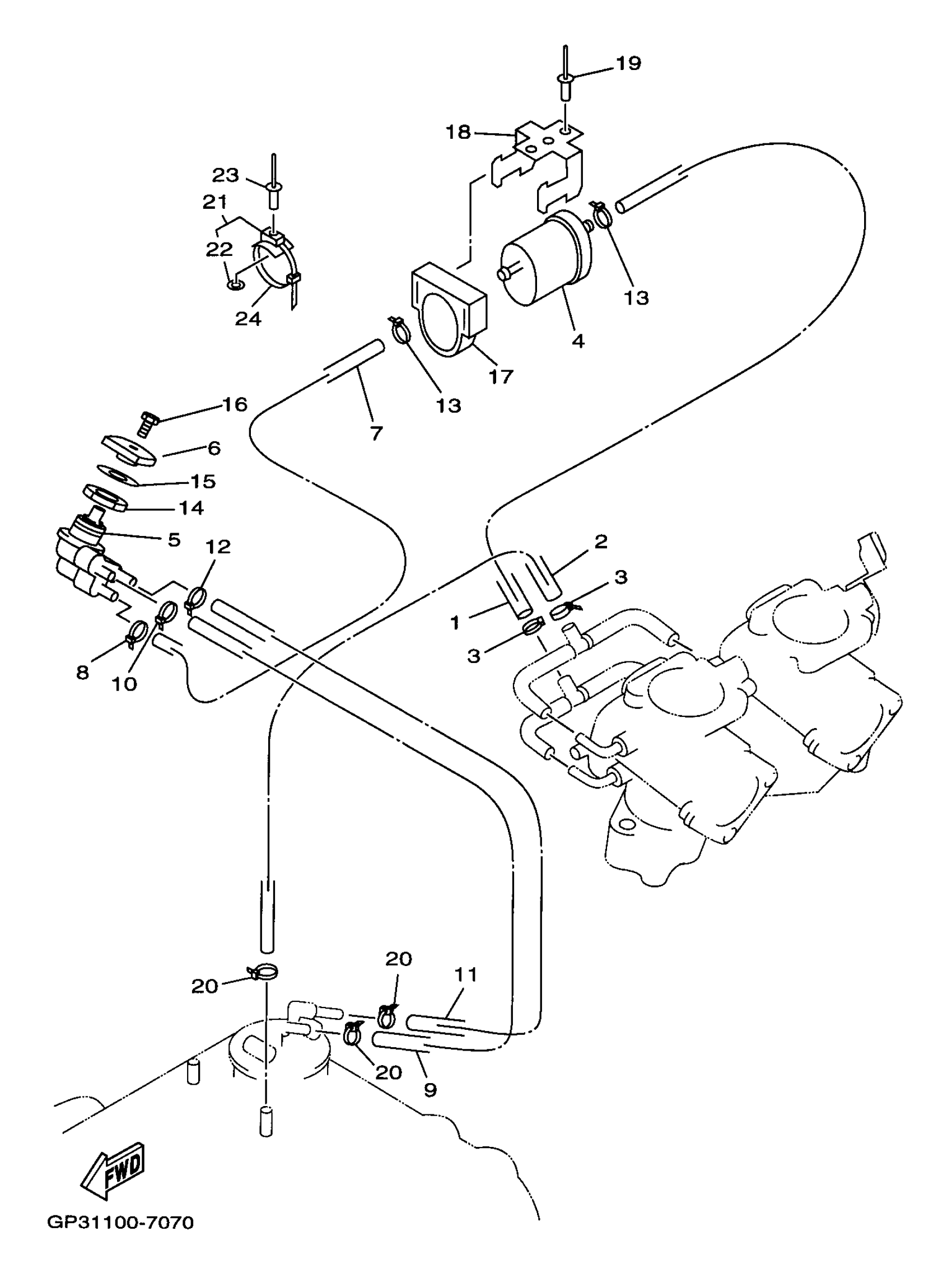

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE (L1700)

90445-10M87-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

FILTER ASSY

6K8-24560-21-00

$28.64

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

LEVER, COCK

6R7-24524-00-00

$7.03

7

HOSE (L1700)

90445-10M87-00

Unavailable

8

CLAMP

90465-10098-00

$1.68

9

HOSE (L400)

90445-10M43-00

$5.96

10

CLAMP

90465-10098-00

$1.68

11

HOSE (L400)

90445-10M43-00

$5.96

12

CLAMP

90465-10098-00

$1.68

13

CLAMP

90465-10098-00

$1.68

14

NUT, HEXAGON (1E6)

90170-22187-00

$7.77

15

WASHER, PLATE

90202-229U1-00

$14.35

16

SCREW, BIND

98980-04008-00

$3.05

17

HOLDER

EU0-67817-00-00

$13.33

18

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

19

RIVET (EU0)

90267-48938-00

$5.00

20

CLAMP

90465-10098-00

$1.68

21

CLAMP COMP (EU0)

90600-91736-00

Unavailable

22

. WASHER, PLAIN

90201-05925-00

Unavailable

23

RIVET, BLIND

90267-48802-00

$1.98

24

BAND (EU0)

90601-20009-00

$6.36
