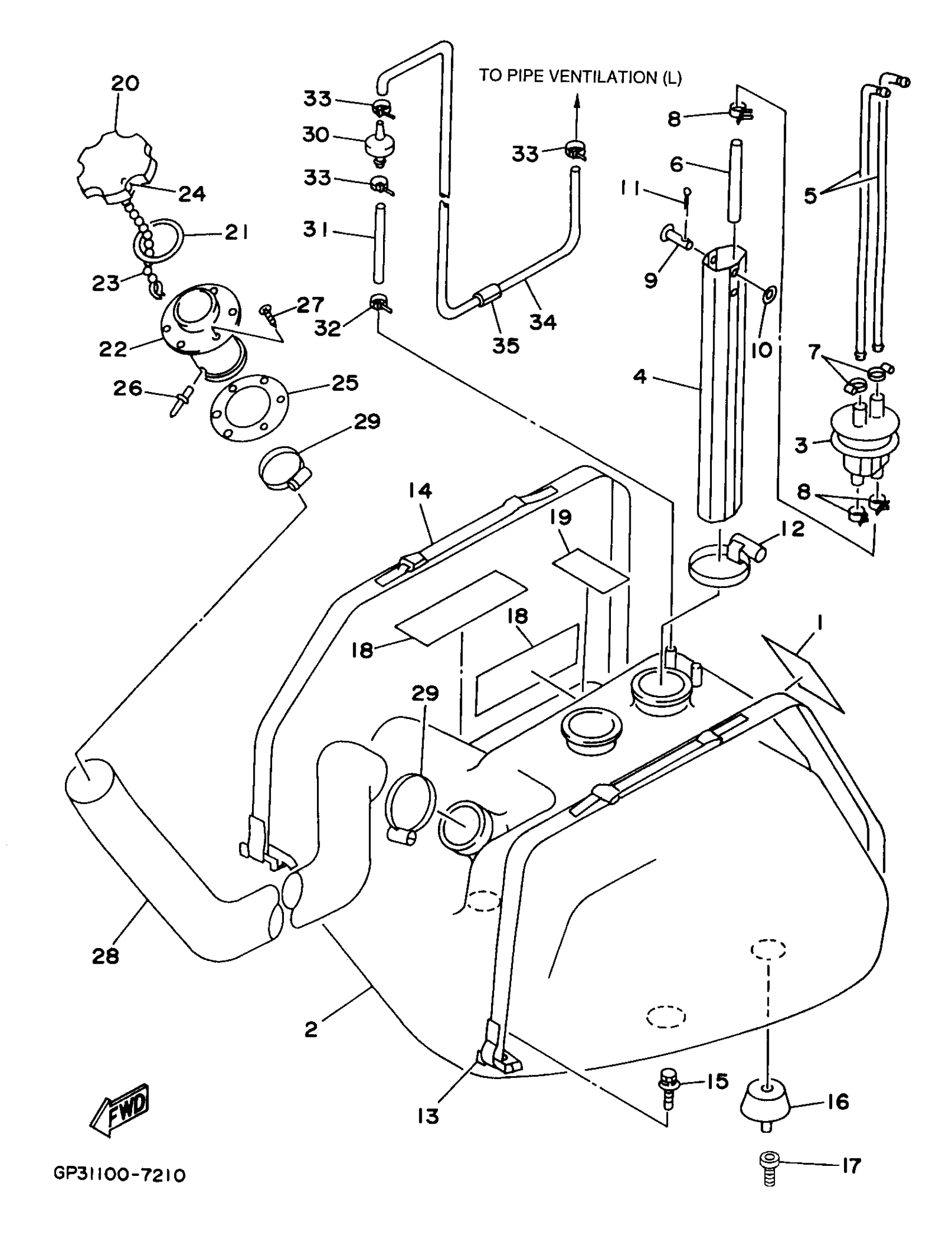

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 FUEL TANK Diagram
#
1
LABEL, FUEL TANK
GH3-6418D-00-00
Unavailable
2
TANK, FUEL
GH3-U7711-00-00
Unavailable
3
PIPE, JOINT
FJ0-67713-01-00
Unavailable
4
SLEEVE 1
FJ0-67716-01-00
Unavailable
5
PIPE, SUCTION 3
FJ0-67714-02-00
Unavailable
6
HOSE (L198)
90445-11293-00
$9.49
7
BAND, HOSE 11
90601-11062-00
Unavailable
8
CLIP (7K7)
90467-11044-00
$8.49
9
PIN (FJ0)
91790-05040-00
$7.49
10
WASHER, PLAIN (646)
92990-05600-00
$0.80
11
PIN. COTTER
91490-16010-00
Unavailable
12
BAND, HOSE 62
90601-162U5-00
Unavailable
13
BELT, TANK 1
GJ1-67743-01-00
Unavailable
14
BELT, TANK 1
GH3-67743-01-00
Unavailable
15
BOLT, WITH WASHER
90119-08800-00
Unavailable
16
DAMPER, FUEL TANK
GH1-U782B-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-089U1-00
Unavailable
18
MAT 1
GJ1-6759B-00-00
Unavailable
19
MAT 2
GJ1-6759C-00-00
Unavailable
20
CAP, FUEL FILLER (YAMAHA BLACK)
FN8-67831-01-00
Unavailable
21
PACKING 1
EU0-67832-00-00
Unavailable
22
SOCKET
FN8-67833-00-00
Unavailable
23
. CHAIN BALL
EU0-67835-00-00
Unavailable
24
COUPLING
EU0-67839-00-00
Unavailable
25
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
26
. RIVET, BLIND
90267-40935-00
Unavailable
27
SCREW, FLAT HEAD TAPPING
FX1-67869-00-00
Unavailable
28
HOSE
GJ3-U7844-00-00
Unavailable
29
BAND, HOSE 55
90601-155U4-00
Unavailable
30
CHECK VALVE
EU0-67767-31-00
Unavailable
31
HOSE
90699-50100-00
Unavailable
32
CLAMP
90465-10098-00
Unavailable
33
CLAMP
90465-10098-00
Unavailable
34
HOSE, AIRVENT 3
GA7-6785H-00-00
Unavailable
35
PACKING, HOSE 2
GJ1-U7578-01-00
Unavailable
