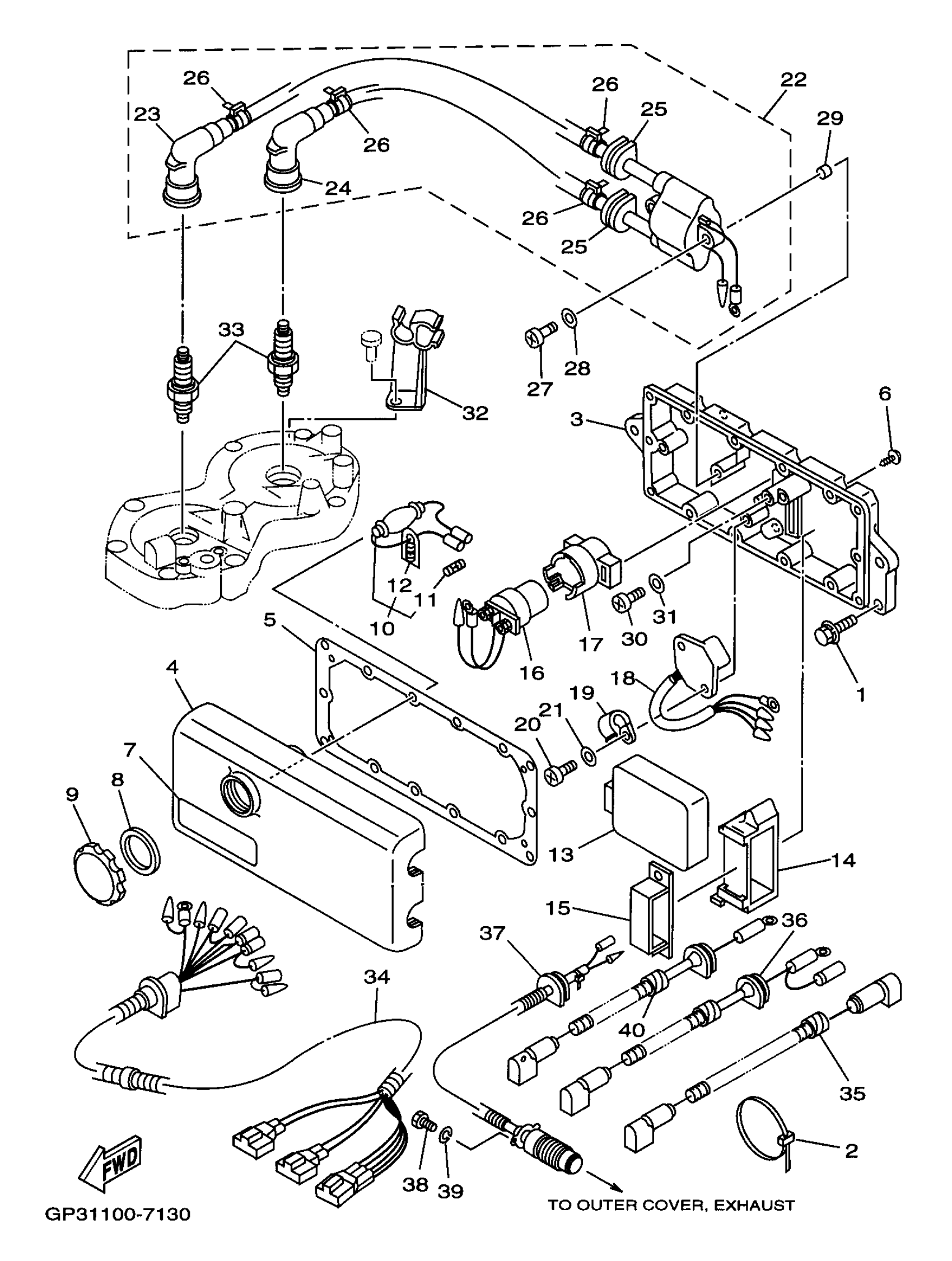

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08907-00

Unavailable

2

BAND (EU0)

90601-20009-00

Unavailable

3

HOUSING

65R-8552A-00-00

Unavailable

4

COVER, CASE

6M6-8552E-01-00

Unavailable

5

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

6

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

7

MARK 3

6R7-83623-40-00

Unavailable

8

GASKET

6M6-81844-00-00

Unavailable

9

CAP

6M6-8132W-00-00

Unavailable

10

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

11

FUSE (10A)

1E6-82151-00-00

$7.99

12

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

13

C.D.I. UNIT ASSY

64X-85540-01-00

Unavailable

14

BAND

64X-85546-00-00

Unavailable

15

CLAMP

90464-06M29-00

Unavailable

16

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

17

HOLDER, RELAY

6M6-81952-01-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

19

CLAMP

90465-08028-00

Unavailable

20

SCREW, PAN HEAD

98580-06016-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

IGNITION COIL ASSY

64X-85570-01-00

Unavailable

23

. CAP, PLUG

62E-82371-10-00

Unavailable

24

. CAP, PLUG

62E-82371-10-00

Unavailable

25

GROMMET

90480-06M43-00

Unavailable

26

CLAMP

90465-10098-00

Unavailable

27

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

COLLAR(6R8)

90387-06M30-00

Unavailable

30

SCREW, PAN HEAD

98580-06016-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

CLAMP, CORD

62T-82361-00-00

Unavailable

33

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

34

EXTENSION, WIRE LEAD

63N-82553-00-00

Unavailable

35

WIRE, LEAD

63N-82117-00-00

Unavailable

36

WIRE, LEAD

63N-82117-11-00

Unavailable

37

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WIRE, LEAD

6M6-82117-21-00

Unavailable
