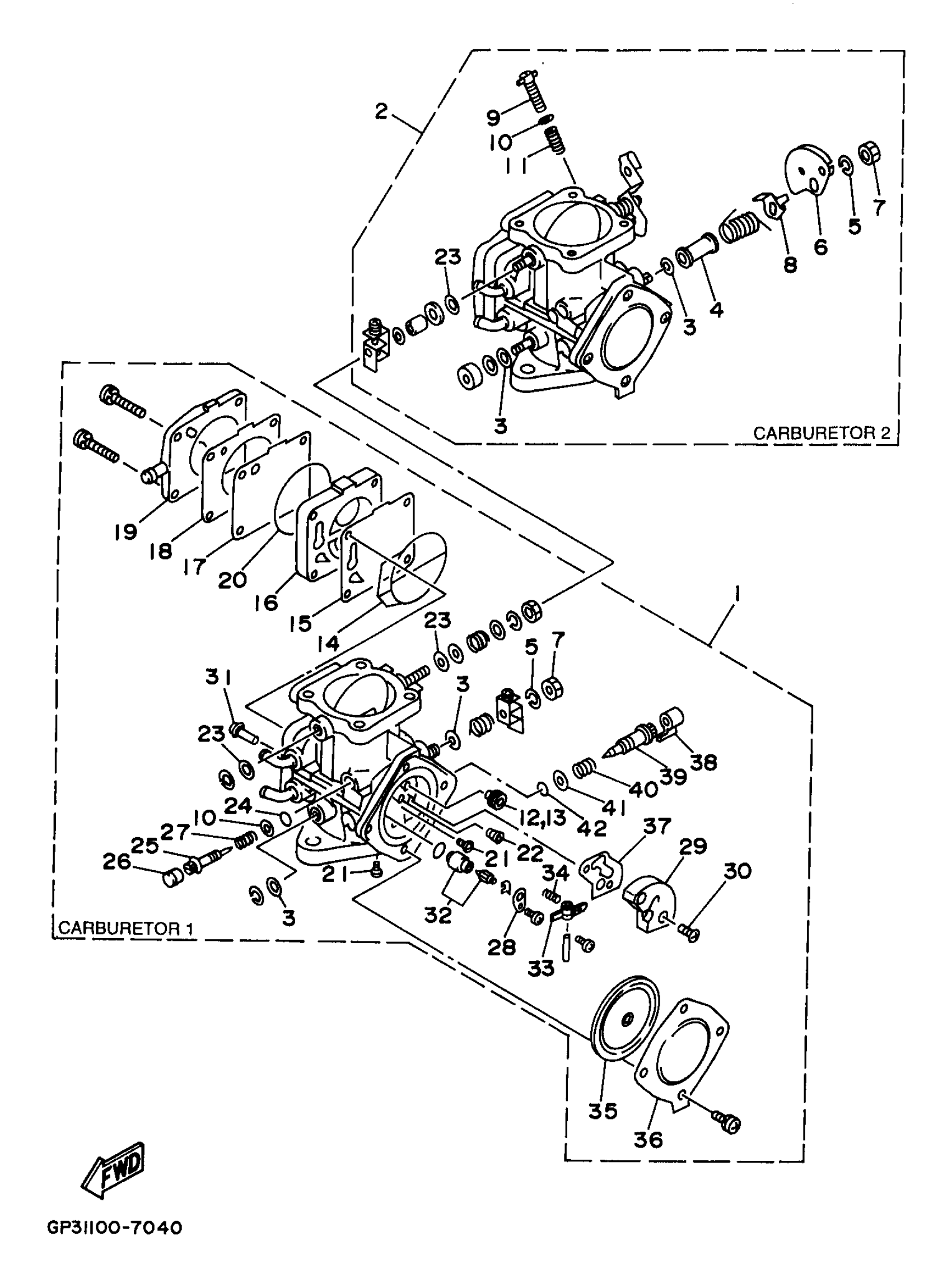

Yamaha WVT760V (WAVE VENTURE 760) 65R 1997 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
64X-14301-01-00
Unavailable
2
CARBURETOR ASSY 2
64X-14302-02-00
Unavailable
3
. WASHER
6R7-14596-01-00
Unavailable
4
. COLLAR
6K8-14534-10-00
Unavailable
5
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
6
. THROTTLE SHAFT ASSEMBLY
6K8-14930-00-00
Unavailable
7
. NUT
95380-08700-00
Unavailable
8
. BRACKET, THROTTLE 1
6K8-14926-10-00
Unavailable
9
SCREW,ADJUST
6M6-14521-01-00
Unavailable
10
WASHER,NEEDLE
812-14235-00-00
Unavailable
11
. SPRING, THROTTLE STOP
47X-14133-00-00
Unavailable
12
JET, MAIN (#135)
3G2-14231-27-00
$13.49
13
JET,MAIN #137.5
3G2-1423A-78-00
$14.49
14
. O-RING
6K8-14564-00-00
Unavailable
15
. DIAPHRAGM
6K8-24411-20-00
Unavailable
16
BODY 2
6M6-24413-02-00
Unavailable
17
. VALVE, CHECK
6K8-24421-10-00
Unavailable
18
. GASKET, FUEL PUMP 1
6K8-24431-20-00
Unavailable
19
. COVER
6K8-24452-10-00
Unavailable
20
. O-RING
6K8-14563-00-00
Unavailable
21
. SCREW
6K8-14521-10-00
Unavailable
22
JET, MAIN (#115)
830-14231-23-00
Unavailable
23
. WASHER
6K8-14597-11-00
Unavailable
24
. O-RING
6K8-14562-00-00
Unavailable
25
. PLATE, NEEDLE FITTING
6K8-14946-10-00
Unavailable
26
. CAP, CARBURETOR
6K8-14471-10-00
Unavailable
27
SPRING, THROTTLE VALVE
68V-14331-00-00
Unavailable
28
. PLATE
6K8-14527-11-00
Unavailable
29
. BODY 1
6R7-24412-01-00
Unavailable
30
SCREW, STOP
6K8-14523-12-00
Unavailable
31
. STRAINER
6R7-14569-00-00
Unavailable
32
NEEDLE
61X-14916-16-00
Unavailable
33
. ARM, FLOAT
6K8-14547-01-00
Unavailable
34
. SPRING
6R7-14253-00-00
Unavailable
35
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
36
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
37
. GASKET
6K8-14536-11-00
Unavailable
38
. CAP, CARBURETOR
6K8-14481-10-00
Unavailable
39
. SCREW, PILOT
6M6-14923-10-00
Unavailable
40
. SPRING
6K8-14589-00-00
Unavailable
41
WASHER, NEEDLE
822-14235-00-00
Unavailable
42
O-RING
583-14561-00-00
Unavailable
