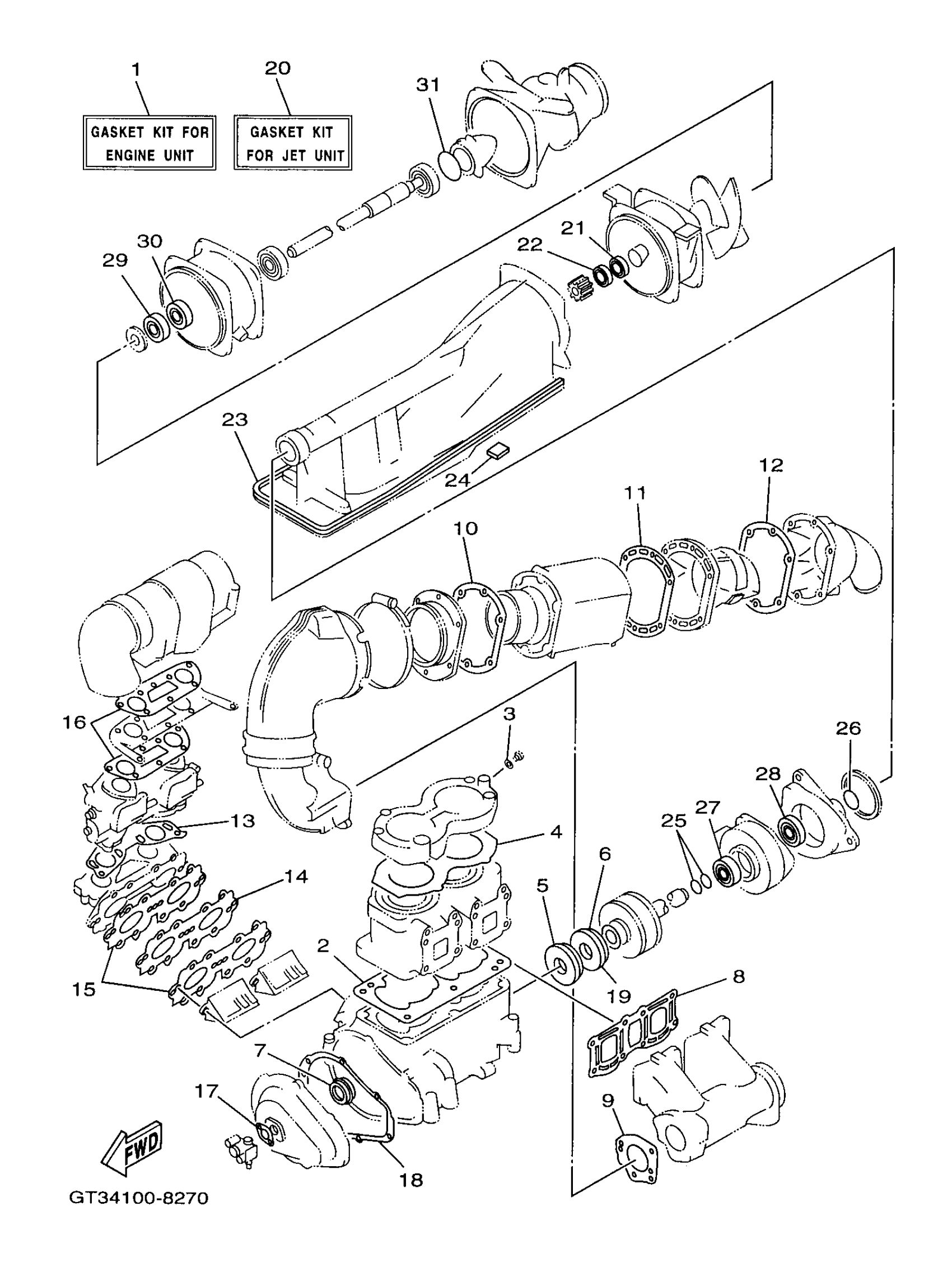

Yamaha WVT700W (WAVEVENTURE 700) 1998 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

62T-W0001-01-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

3

GASKET

90430-08003-00

$1.08

4

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

5

. OIL SEAL

93102-36M33-00

$15.55

6

. OIL SEAL

93101-36M46-00

$17.41

7

. OIL SEAL

93103-32M01-00

$14.81

8

GASKET, EXHAUST PIPE

62T-14613-01-00

$27.26

9

. GASKET, MUFFLER DAMPER 1

62T-14739-00-00

$21.95

9

GASKET, MUFFLER DAMPER 2

62T-14749-02-00

$18.52

10

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

11

. GASKET, EXHAUST INNER COVER

62T-41122-00-00

$28.52

12

. GASKET, EXHAUST OUTER COVER

62T-41124-00-00

$8.14

13

. GASKET, MANIFOLD

62T-13556-00-00

$11.85

14

. PLATE,REED VALVE

62T-13624-00-00

$19.68

15

. GASKET

62T-13566-00-00

$8.88

16

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.55

17

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

18

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

19

SEAL

62T-45127-01-00

Unavailable

20

GASKET KIT FOR JET UNIT

63N-W0001-20-00

Unavailable

21

OIL SEAL

93102-17M49-00

Unavailable

22

OIL SEAL

93102-17M50-00

Unavailable

23

. FELT, PACKING

6R8-51367-01-00

$10.36

24

. FELT, PACKING

63N-51368-00-00

Unavailable

25

O-RING(6R7)

93210-17MA4-00

Unavailable

26

O-RING

93210-35M72-00

Unavailable

27

OIL SEAL(62T)

93101-25M55-00

Unavailable

28

OIL SEAL

93101-24001-00

Unavailable

29

OIL SEAL(6R7)

93102-25M34-00

Unavailable

30

OIL SEAL(6R7)

93101-25M50-00

Unavailable

31

. O-RING

93210-46M16-00

$7.15
