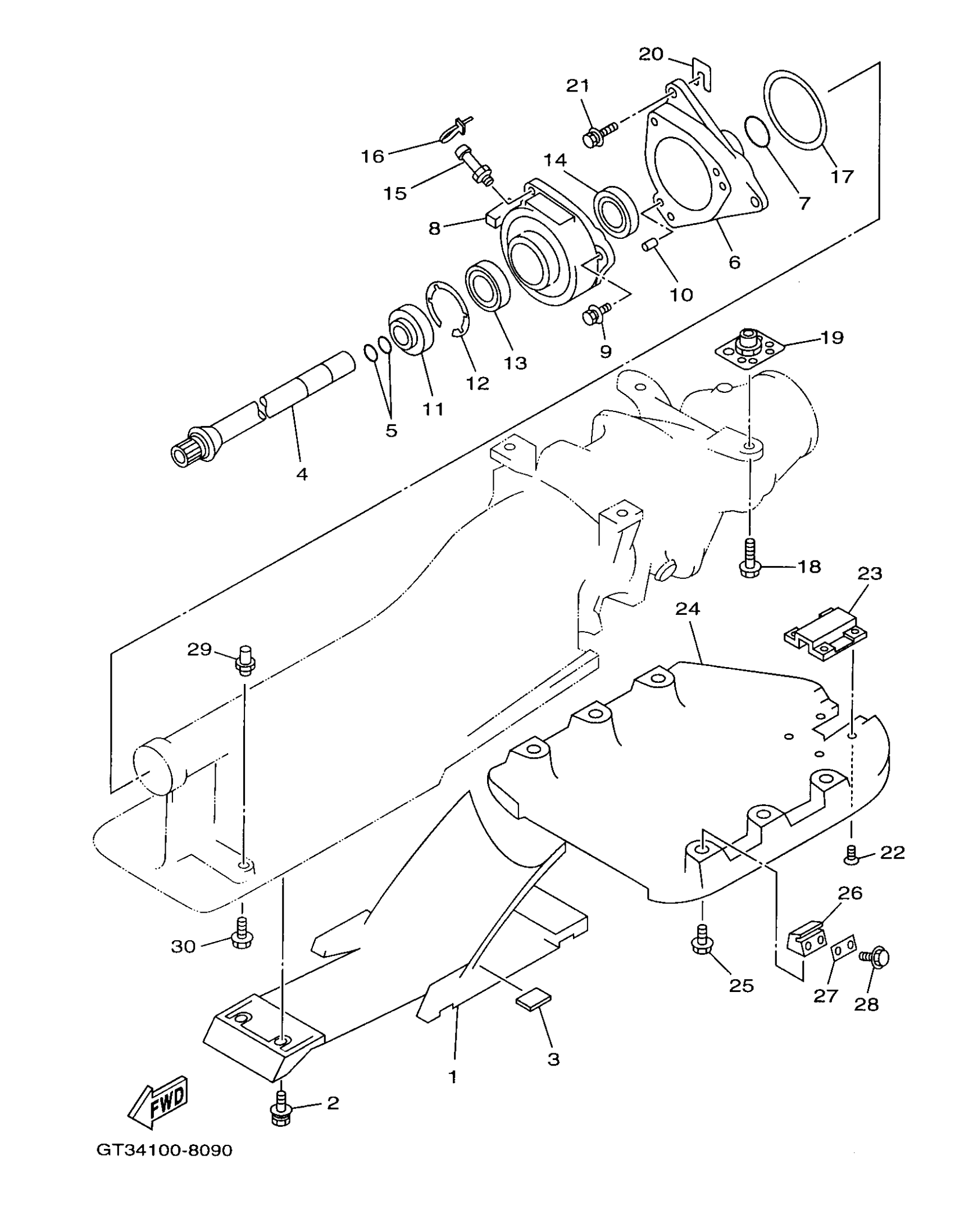

Yamaha WVT700W (WAVEVENTURE 700) 1998 JET UNIT 2 Diagram

#

Description
Price

1

SCREEN, INTAKE

65R-R1333-00-00

Unavailable

2

BOLT, WITH WASHER

90119-069UC-00

$3.37

3

. FELT, PACKING

63M-51368-00-00

$3.64

4

SHAFT, COUPLOR

63N-51323-10-00

$533.32

5

O-RING(6R7)

93210-17MA4-00

$4.65

6

HOUSING, BEARING

65A-G5331-00-00

Unavailable

7

O-RING

93210-35M72-00

$11.39

8

HOUSING, BEARING

65U-45332-02-94

$256.05

9

BOLT, WITH WASHER

90119-08841-00

$1.01

10

PIN, DOWEL (614)

93606-12019-00

$3.05

11

OIL SEAL(62T)

93101-25M55-00

$24.36

12

CIRCLIP

93430-47M04-00

$5.18

13

BEARING(62G)

93306-205U6-00

$55.29

14

OIL SEAL

93101-24001-00

$30.69

15

NIPPLE, HOSE

61L-45378-00-00

$11.35

16

CLAMP

90465-10098-00

$1.68

17

SEAL

6K8-45127-00-00

$15.49

18

BOLT, WITH WASHER

90119-109U8-00

Unavailable

19

NUT

90179-10925-00

$5.00

20

SHIM (0.5)

GD0-U7249-00-05

$1.94

20

SHIM (0.5)

GD0-U7249-00-05

$1.94

21

BOLT, WITH WASHER

90119-08907-00

$5.45

22

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

23

COVER,PLATE

GT3-6273C-00-00

$31.80

24

PLATE 2

GJ3-U273B-00-00

Unavailable

25

BOLT, WITH WASHER

90119-08829-00

$3.88

26

PACKING

GJ1-62733-00-00

$44.99

27

PACKING 1

GJ1-62663-00-00

Unavailable

28

BOLT, WITH WASHER

90119-08907-00

$5.45

29

NUT(FJ0)

90179-06947-00

Unavailable

30

BOLT, WITH WASHER

90119-06896-00

$5.03
