1998 Yamaha Waveventure 700 (WVT700W) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1998 Yamaha Waveventure 700 (WVT700W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

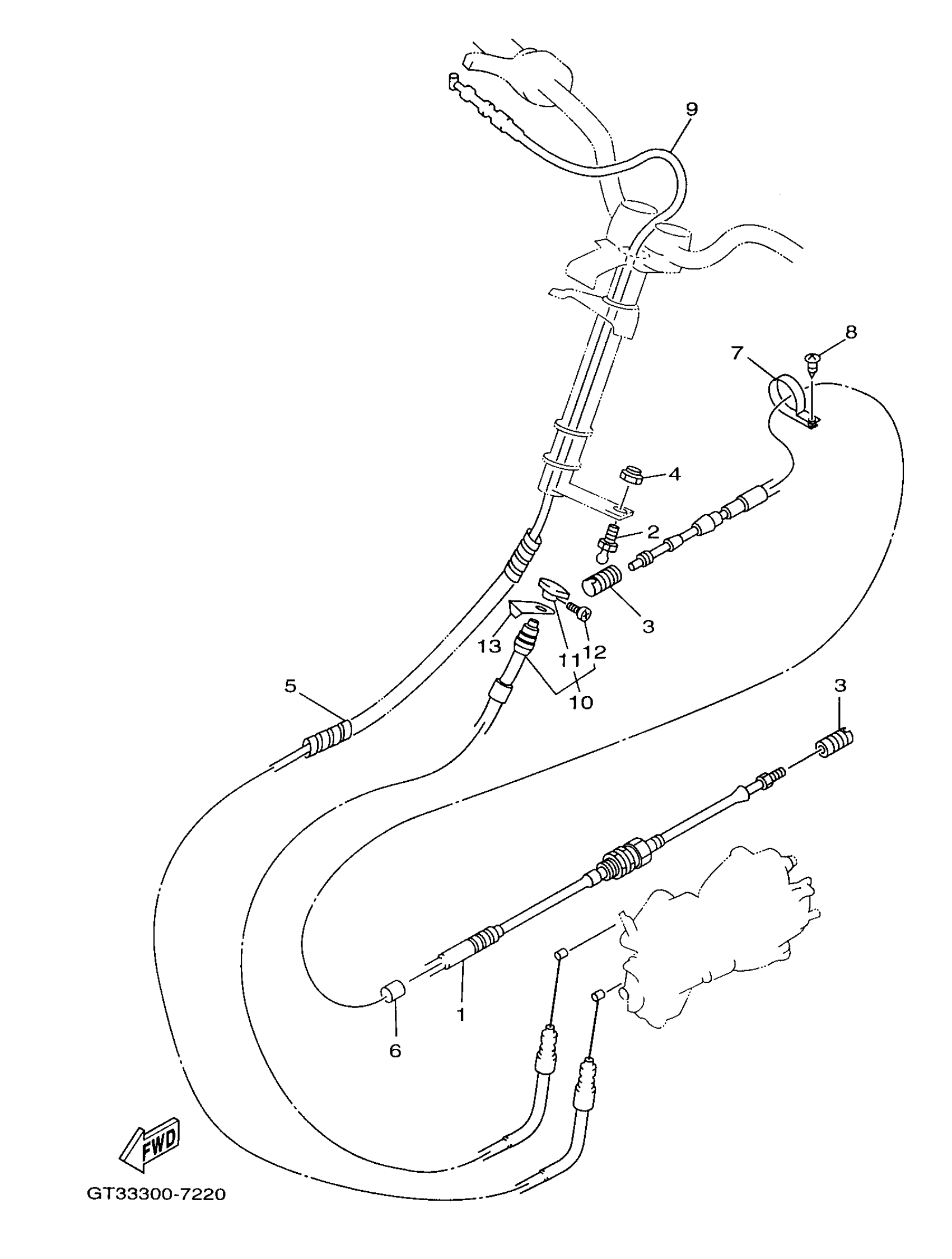

1998 Yamaha Waveventure 700 (WVT700W) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING CABLE ASSEMBLY

GP3-61480-00-00

1
Out of stock

2

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

3

SHAFT,JOINT BALL

GK5-6146F-00-00

1

$50.49

In stock

4

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

5

SPI-RAP 25

90699-38U03-00

1
Out of stock

6

PACKING, HOSE 2

GJ1-U7578-01-00

1
Out of stock

7

CLIP, NYLON 18

90600-918U3-00

1
Out of stock

8

1

$2.22

In stock

9

CABLE, THROTTLE

GJ1-U7252-00-00

1
Out of stock

10

CABLE, CHOKE

GJ3-U7242-02-00

1
Out of stock

11

KNOB, CHOKE

GP7-U724C-00-00

1
Out of stock

12

SCREW, KNOB

GP7-U724D-00-00

1
Out of stock

13

PLATE, CHOKE

GJ3-6824D-01-00

1
Out of stock
