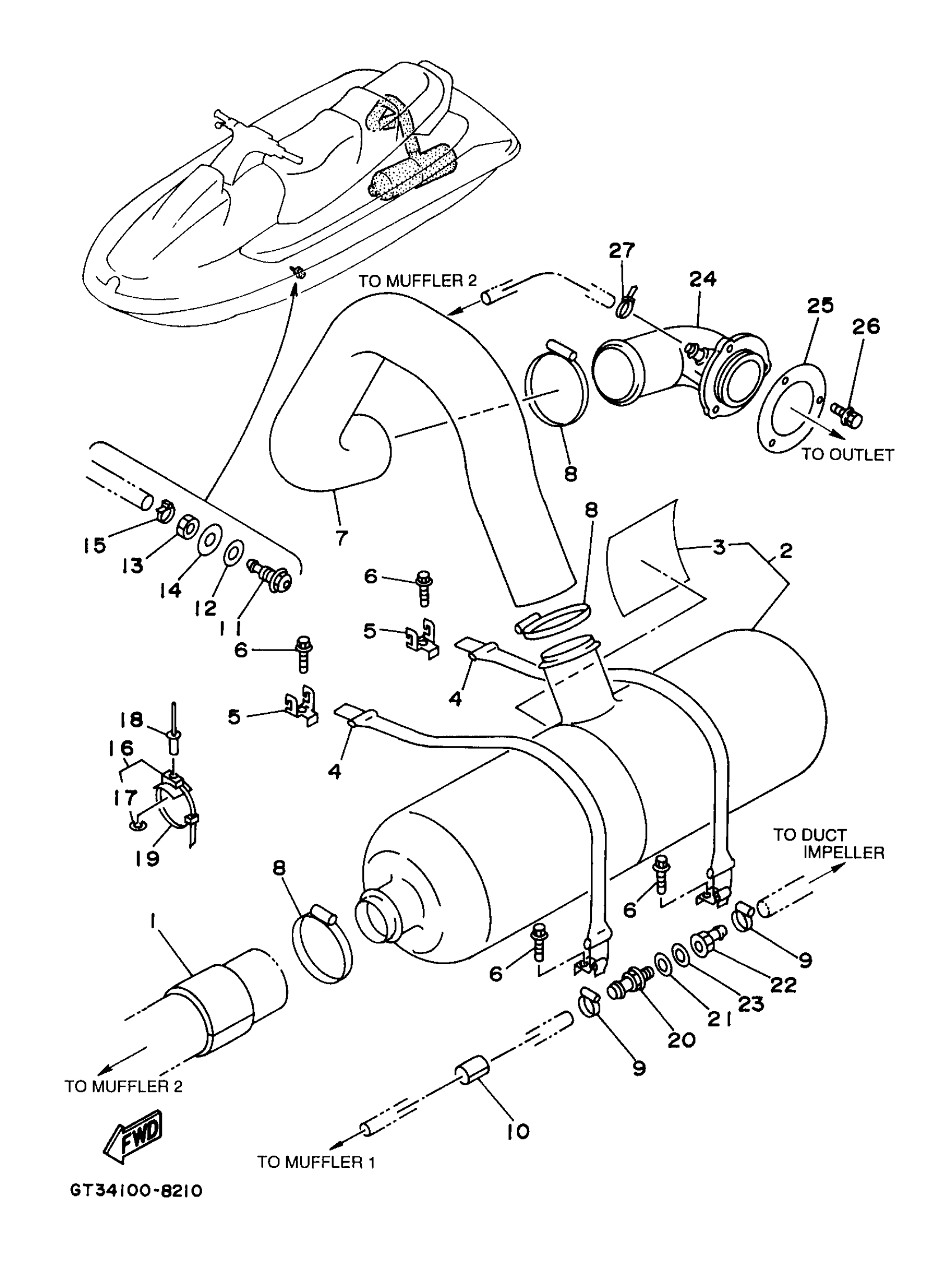

Yamaha WVT700W (WAVEVENTURE 700) 1998 EXHAUST 2 Diagram

#

Description
Price

1

PACKING, HOSE 1

GH6-67577-01-00

Unavailable

2

WATER LOCK COMP.

F2V-U7550-00-00

Unavailable

3

MAT,WATER LOCK

GJ3-U755J-00-00

$90.89

4

C HOOK COMP.

GJ3-U7570-00-00

Unavailable

5

HOOK A

EW2-65772-00-00

$7.40

6

BOLT,FLANGE (EW2)

90105-06900-00

$5.66

7

HOSE, EXHAUST

GJ3-U7555-00-00

Unavailable

8

BAND, HOSE 70

90601-170UG-00

$5.67

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

11

PILOT, WATER

GJ1-6753B-02-00

Unavailable

12

PACKING

GP3-U1438-00-00

Unavailable

13

NUT

GP7-61652-00-00

$10.24

14

WASHER, PLAIN

92990-14200-00

$1.60

15

CLAMP

90465-10098-00

$1.68

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

. WASHER, PLAIN

90201-05925-00

Unavailable

18

RIVET, BLIND

90267-48802-00

$1.98

19

BAND (EU0)

90601-20009-00

$6.36

20

THROUGH-HULL CONNECTION 3/8"

90604-80793-00

Unavailable

21

GASKET(GJ1)

90430-16910-00

Unavailable

22

THROGUH-HULL CONNECTION 3/8

90604-80794-00

Unavailable

23

GASKET(GJ1)

90430-16910-00

Unavailable

24

EXHAUST, THRU-HALL

GJ3-U7560-01-00

Unavailable

25

PACKING

GA9-U7525-00-00

Unavailable

26

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

27

BAND

90601-200U1-00

$2.77
