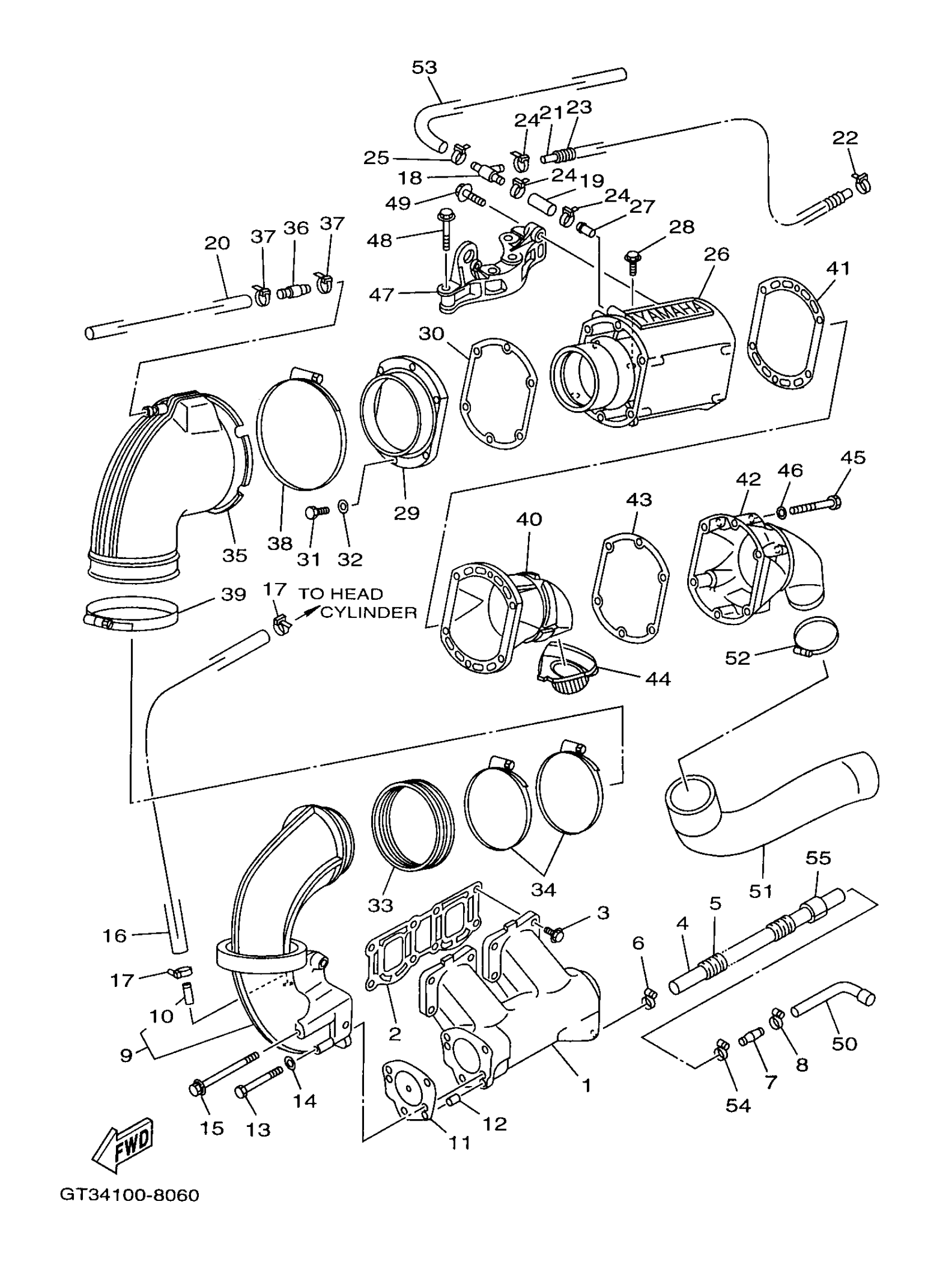

Yamaha WVT700W (WAVEVENTURE 700) 1998 EXHAUST 1 Diagram
#
1
MUFFLER 1
62T-14711-10-94
Unavailable
2
GASKET, EXHAUST PIPE
62T-14613-01-00
Unavailable
3
BOLT, FLANGE
90105-10M60-00
Unavailable
4
HOSE
90445-14M03-00
Unavailable
5
HOSE(GK5)
90446-20M65-00
$7.49
6
HOSE CLAMP ASSY(62T)
90450-14M05-00
$17.99
7
CONNECTION
6M6-51142-00-00
Unavailable
8
HOSE CLAMP ASSY(62T)
90450-14M05-00
$17.99
9
RING, JOINT
62T-14712-00-94
Unavailable
10
. NIPPLE
6K8-51129-00-00
Unavailable
11
GASKET, MUFFLER DAMPER 2
62T-14749-02-00
Unavailable
12
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
13
BOLT (6K8)
97013-08075-00
$7.49
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
BOLT, WITH WASHER
90119-08M11-00
Unavailable
16
HOSE (L380)
90445-14M25-00
Unavailable
17
CLAMP
90465-10098-00
Unavailable
18
PIPE, JOINT 4
63N-24378-00-00
Unavailable
19
HOSE (L50)
90445-21M02-00
Unavailable
20
HOSE (L1300)
90445-14M22-00
Unavailable
21
HOSE (L380)
90445-14M25-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
HOSE(61L)
90446-20M31-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
CLAMP
90465-11M59-00
Unavailable
26
MUFFLER 2
62T-14721-00-8S
Unavailable
27
PIPE, JOINT
62T-14485-10-00
Unavailable
28
BOLT, FLANGE
90105-10M60-00
Unavailable
29
OUTER COVER, EXHAUST
62T-41113-00-8S
Unavailable
30
GASKET, EXHAUST OUTER COVER
62T-41114-01-00
Unavailable
31
BOLT(62Y)
97013-06025-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
Unavailable
33
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
34
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
35
JOINT, EXHAUST 1
62T-14615-01-00
Unavailable
36
PIPE, JOINT 2
6R3-24377-00-00
Unavailable
37
CLAMP
90465-10098-00
Unavailable
38
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
39
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
40
INNER COVER,EXHAUST
62T-41121-00-8S
Unavailable
41
. GASKET, EXHAUST INNER COVER
62T-41122-00-00
Unavailable
42
OUTER COVER, EXHAUST
62T-41123-01-8S
Unavailable
43
. GASKET, EXHAUST OUTER COVER
62T-41124-00-00
Unavailable
44
SEAL, RUBBER 1
63N-15761-00-00
Unavailable
45
BOLT(62J)
97013-06070-00
Unavailable
46
WASHER, PLAIN (646)
92990-06600-00
Unavailable
47
STAY, MUFFLER 1
62T-14771-00-00
Unavailable
48
BOLT, WITH WASHER
90119-10M72-00
Unavailable
49
BOLT, WASHER BASED
90105-10M45-00
Unavailable
50
PIPE, WATER
65R-12564-00-00
Unavailable
51
PIPE, OUTLET
63N-14752-30-00
Unavailable
52
HOSE CLAMP ASSY(62T)
90450-70M03-00
Unavailable
53
HOSE (L1390)
90445-21M00-00
Unavailable
54
BAND, HOSE 11
90601-110UC-00
Unavailable
55
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
