1998 Yamaha Waveventure 700 (WVT700W) Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 1998 Yamaha Waveventure 700 (WVT700W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

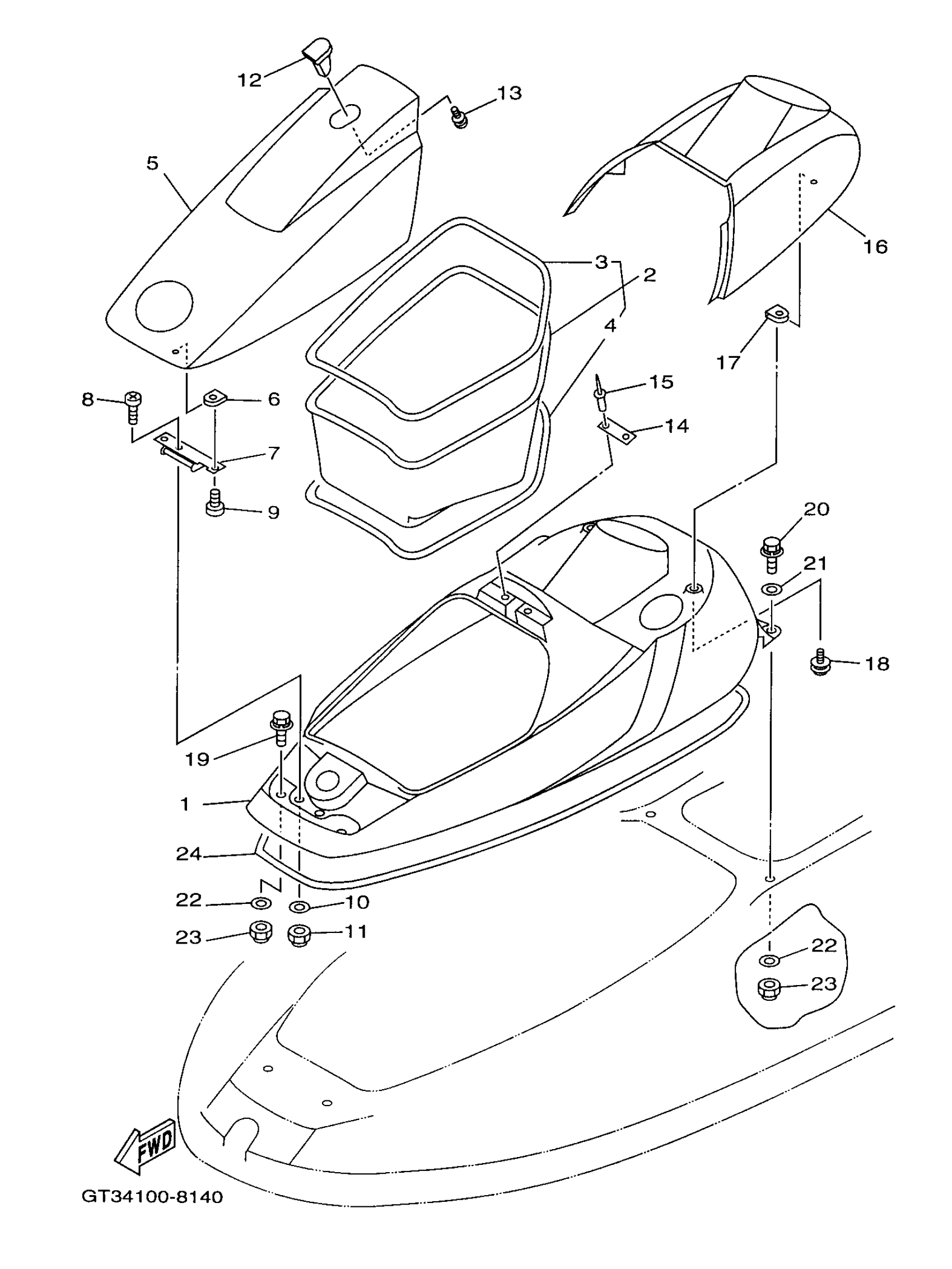

1998 Yamaha Waveventure 700 (WVT700W) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH (TEAL)

GT3-U516A-00-P0

1
Out of stock

2

BOW LOCKER ASSEMBLY

GJ3-U475A-00-00

1
Out of stock

3

PACKING 3

GJ3-U266B-33-00

1
Out of stock

4

PACKING 4

GJ3-U266C-31-00

1
Out of stock

5

LID,ENG.HATCH(YELLOW)

GH3-U517B-19-P0

1
Out of stock

6

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

7

HINGE, LID

GJ3-6517D-01-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

9

SCREW

90149-069U2-00

1
Out of stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

LOCK, LID

GJ3-6517C-01-00

1
Out of stock

13

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

14

HOOK, LID LOCK

GJ3-6517F-00-00

1
Out of stock

15

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

16

COVER, ENG HATCH(YELLOW-EXPOR)

GH3-U516N-19-P0

1
Out of stock

17

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

18

SCREW, WITH WASHER

97980-06320-00

1
Out of stock

19

BOLT, WITH WASHER

90119-089U9-00

1
Out of stock

20

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

21

WASHER, PLATE

90201-099U1-00

1

$2.46

In stock

22

WASHER (FJ0)

90201-08929-00

—
Out of stock

23

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

24

PACKING 1

GJ3-U2663-01-00

1
Out of stock
