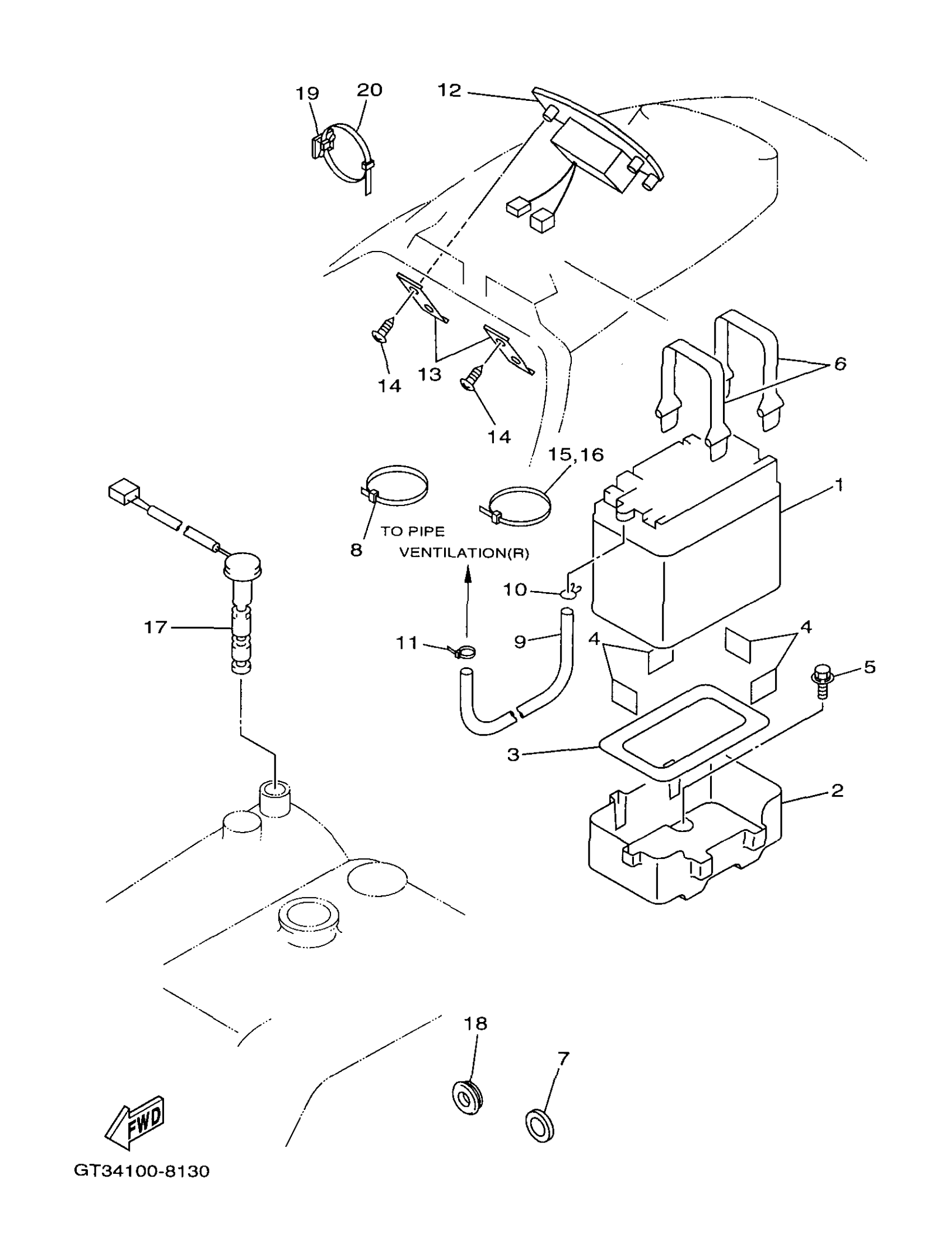

Find the part on the Electrical 2 diagram for your 1998 Yamaha Waveventure 700 (WVT700W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Waveventure 700 (WVT700W) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

2

CASE, BATTERY

GP7-U8211-00-00

1
Out of stock

3

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

4

PAD, BATTERY

EU0-U8221-31-00

1

$1.92

In stock

5

BOLT WITH WASHER (EW2)

90119-06920-00

1

$4.74

In stock

6

BAND,BATTERY 1

EU0-U821D-00-00

1

$10.71

In stock

7

GROMMET

FJ0-68222-01-00

1
Out of stock

8

BAND (EU0)

90601-20009-00

1

$6.46

In stock

9

HOSE, AIR VENT 3

EU0-U7856-50-00

1
Out of stock

10

CLIP

90467-089U1-00

1

$1.46

In stock

11

CLAMP

90465-10098-00

1

$2.24

In stock

12

METER, ASSEMBLY

GJ8-6820A-00-00

1
Out of stock

13

BRACKET, METER

GJ8-68238-00-00

1

$16.99

In stock

14

SCREW, TAPPING

97780-50620-00

1

$2.94

In stock

15

BAND (EU0)

90601-20009-00

1

$6.46

In stock

16

BAND (EU0)

90601-20009-00

1

$6.46

In stock

17

SENDER, OIL

GJ8-U824C-01-00

1
Out of stock

18

CAP

GJ8-60469-01-00

1

$16.99

In stock

19

BASE, CLAMP (FA8A)

90600-90004-00

—

$3.77

In stock

20

BAND

90601-200U1-00

1

$2.89

In stock
