1998 Yamaha Waveventure 700 (WVT700W) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1998 Yamaha Waveventure 700 (WVT700W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

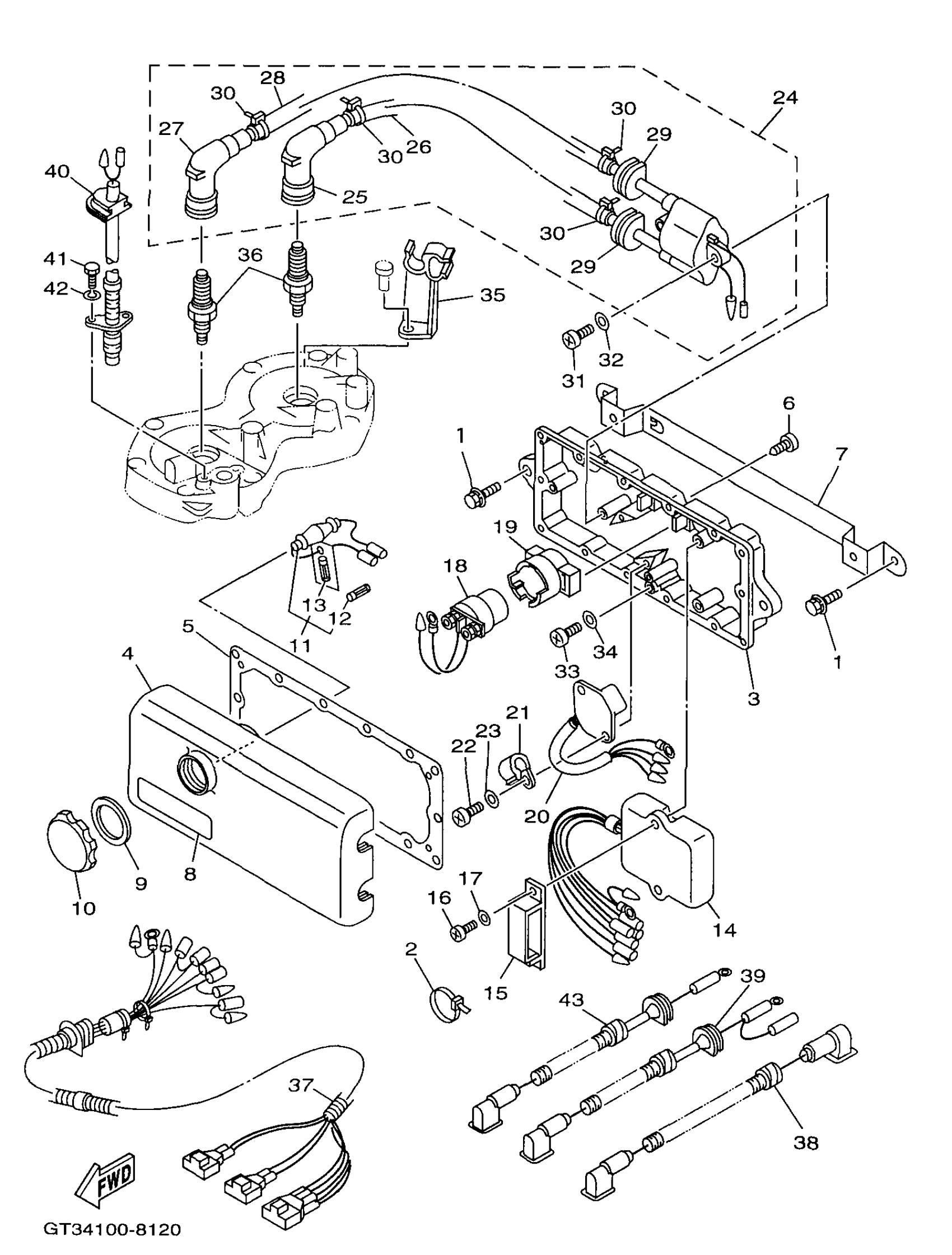

1998 Yamaha Waveventure 700 (WVT700W) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, WITH WASHER

90119-08907-00

1
Out of stock

2

BAND (EU0)

90601-20009-00

1
Out of stock

3

HOUSING

62L-8552A-00-8P

1
Out of stock

4

COVER, CASE

6M6-8552E-01-00

1
Out of stock

5

GASKET, TERMINAL

6M6-81921-00-00

1
Out of stock

6

SCREW, TAPPING(65J)

97780-60625-00

1
Out of stock

7

BRACKET

66D-85542-00-00

1
Out of stock

8

MARK 3

6R7-83623-40-00

1
Out of stock

9

GASKET

6M6-81844-00-00

1
Out of stock

10

CAP

6M6-8132W-00-00

1
Out of stock

11

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

12

FUSE (10A)

1E6-82151-00-00

1
Out of stock

13

FUSE SPEAR (10A)

6K8-82159-01-00

1
Out of stock

14

C.D.I. UNIT ASSY

62T-85540-04-00

1
Out of stock

15

CLAMP

90464-06M29-00

1
Out of stock

16

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

18

STARTER RELAY ASSY

6G1-81941-10-00

1
Out of stock

19

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

20

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1
Out of stock

21

CLAMP

90465-08028-00

1
Out of stock

22

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

24

IGNITION COIL ASSY

62E-85570-11-00

1
Out of stock

25

. CAP, PLUG

62E-82371-10-00

1
Out of stock

26

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

27

. CAP, PLUG

62E-82371-10-00

1
Out of stock

28

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

29

GROMMET

90480-06M43-00

1
Out of stock

30

CLAMP

90465-10098-00

1
Out of stock

31

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

32

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

33

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

34

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

35

CLAMP, CORD

62T-82361-00-00

1
Out of stock

36

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

1
Out of stock

37

EXTENSION, WIRE LEAD

63N-82553-00-00

1
Out of stock

38

WIRE, LEAD

63N-82117-00-00

1
Out of stock

39

WIRE, LEAD

63N-82117-11-00

1
Out of stock

40

THERMOSWITCH ASSY

62T-82560-01-00

1
Out of stock

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

42

WASHER, SPRING

92995-06100-00

1
Out of stock

43

WIRE, LEAD

62L-82117-20-00

1
Out of stock
