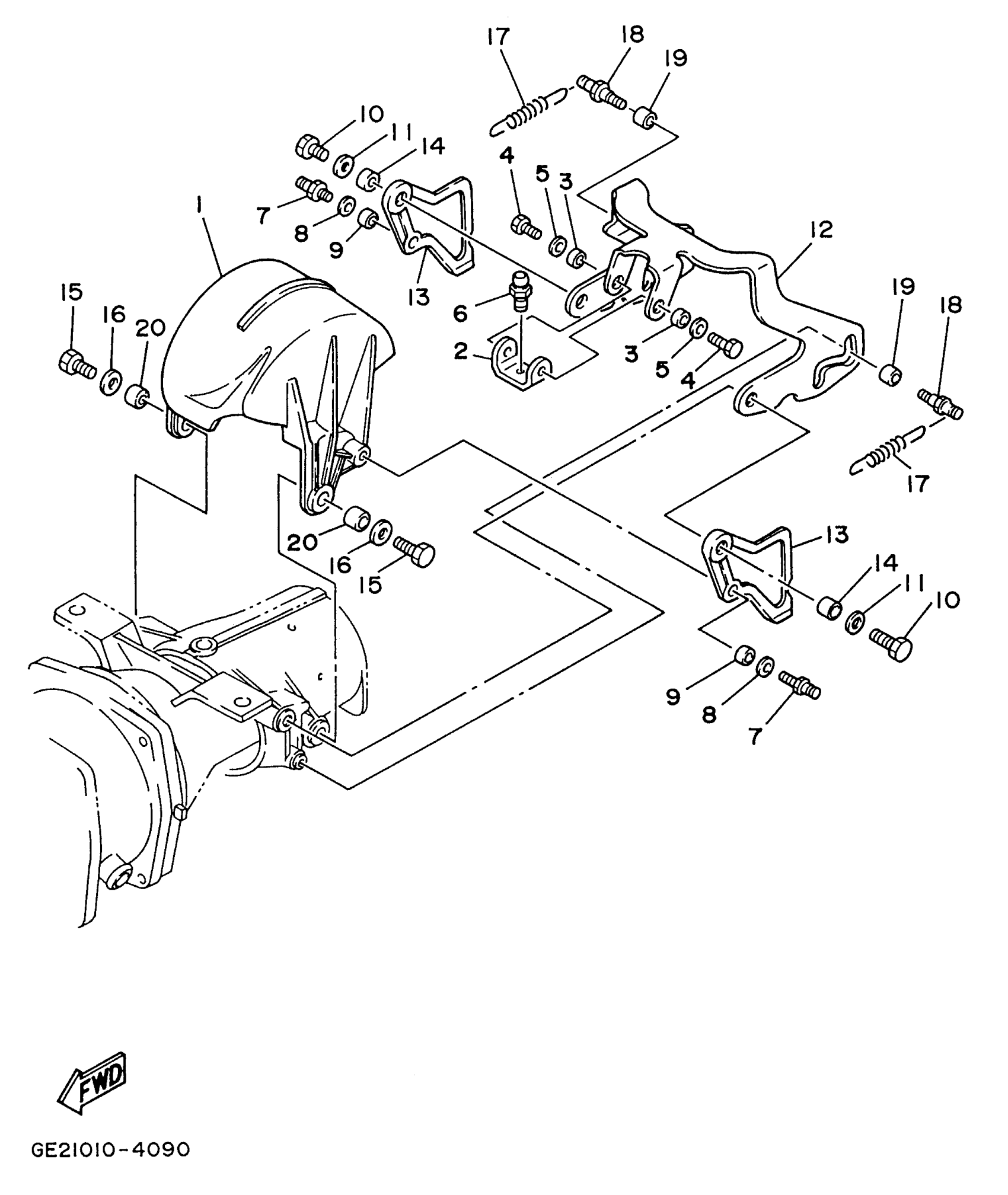

Yamaha WVT700U (WAVE VENTURE 700) 1996 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6R8-51314-02-94

Unavailable

2

LEVER, SHIFT ROD

6R8-44125-00-00

Unavailable

3

COLLAR(6R8)

90387-06M24-00

Unavailable

4

BOLT(GH1)

97080-06012-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

BOLT, JOINT

6R8-42316-00-00

Unavailable

7

PIN

6R8-44184-00-00

Unavailable

8

WASHER, PLATE

90201-06M31-00

Unavailable

9

COLLAR(6R8)

90387-06M30-00

Unavailable

10

BOLT (62G)

97095-08025-00

$8.49

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

LEVER SHIFT ROD

6R8-44121-01-00

Unavailable

13

PLATE 1

6R8-51345-00-00

Unavailable

14

COLLAR

90387-08M07-00

Unavailable

15

BOLT (62G)

97095-08025-00

$8.49

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

SPRING, TENSION

90506-16M31-00

Unavailable

18

PIN

6R8-44137-A0-00

Unavailable

19

COLLAR(64T)

90387-08M26-00

Unavailable

20

COLLAR

90387-08M08-00

Unavailable
