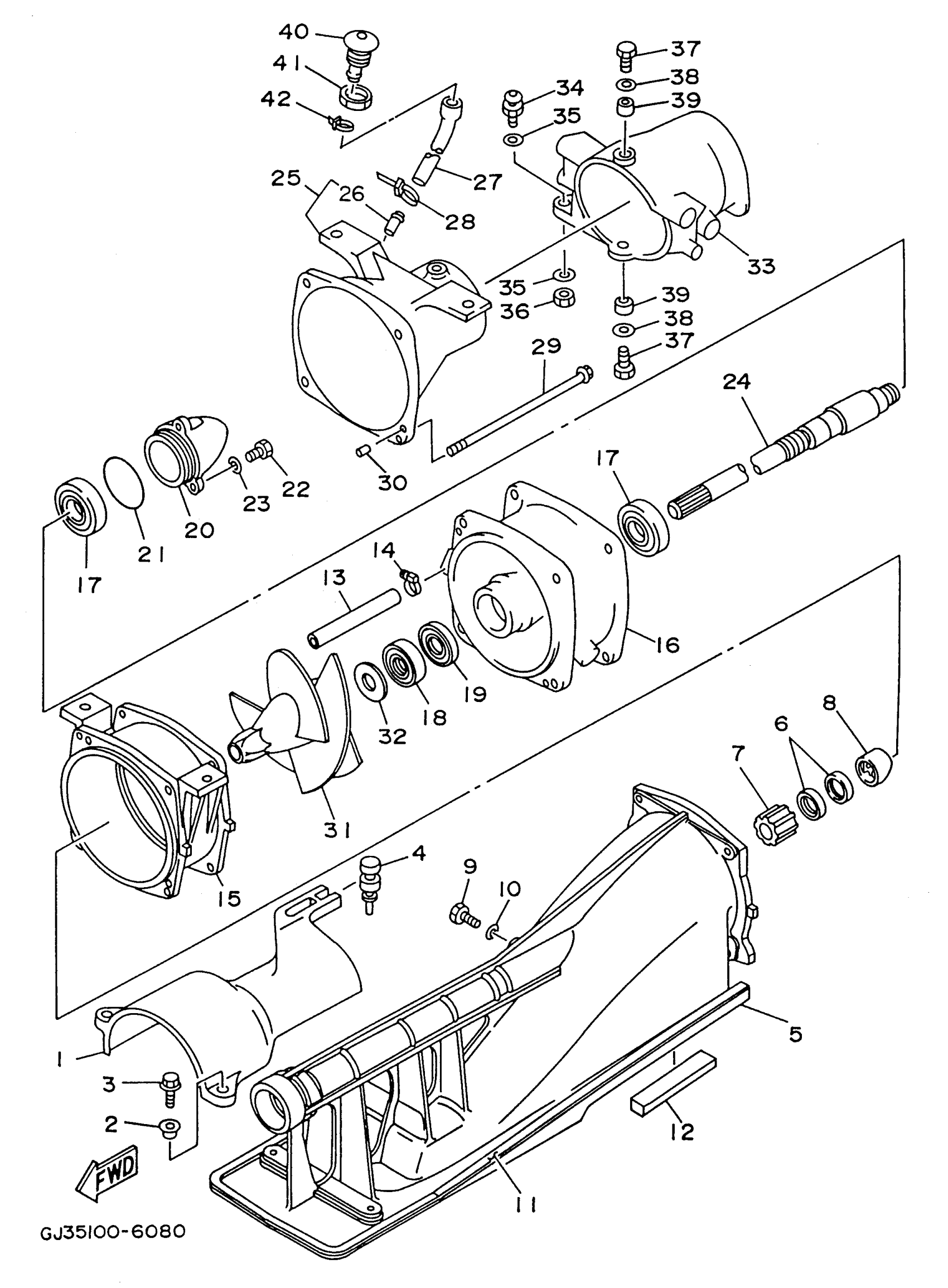

Yamaha WVT700U (WAVE VENTURE 700) 1996 JET UNIT 1 Diagram

#

Description
Price

1

COVER

63N-51381-00-00

$33.99

2

COLLAR

90387-06M60-00

$6.37

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

4

GROMMET(6R7)

90480-06M46-00

$9.31

5

DUCT, INTAKE

62T-51311-03-94

Unavailable

6

OIL SEAL(6R8)

93102-18M35-00

Unavailable

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

Unavailable

8

SPACER

6R8-51348-02-94

Unavailable

9

BOLT

90101-06M27-00

$3.14

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

. FELT, PACKING

6R8-51367-01-00

$10.36

12

. FELT, PACKING

63N-51368-00-00

Unavailable

13

HOSE

90445-14M17-00

Unavailable

14

BAND, HOSE 18

90601-118UF-00

$2.07

15

HOUSING, IMPELLER

6R8-51312-03-94

$392.41

16

DUCT, IMPELLER

6R7-51315-01-94

Unavailable

17

BEARING (6K8)

93306-205U1-00

Unavailable

18

OIL SEAL(6R7)

93102-25M34-00

Unavailable

19

OIL SEAL(6R7)

93101-25M50-00

Unavailable

20

CAP

62T-51326-00-00

$71.20

21

. O-RING

93210-46M16-00

$7.15

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

$1.84

24

SHAFT, DRIVE

6R8-45511-00-00

Unavailable

25

NOZZULE

63N-51318-01-94

Unavailable

26

. NIPPLE

6K8-51129-00-00

$9.62

27

PIPE 1

63N-51673-00-00

Unavailable

28

CLAMP (6E5)

90465-13M11-00

Unavailable

29

BOLT(6R8)

90101-06M04-00

Unavailable

30

PIN, DOWEL (614)

93606-12019-00

Unavailable

31

IMPELLER

62T-51321-B0-00

Unavailable

32

SPACER

62T-51348-00-00

$52.82

33

NOZZLE,DEFLECTOR

6R8-51313-03-94

Unavailable

34

. BOLT, JOINT

6R7-42316-00-00

$34.49

35

WASHER, PLATE

90201-06M31-00

$2.80

36

NUT(650)

95380-06700-00

Unavailable

37

BOLT, HEXAGON

97095-08018-00

$3.08

38

.. WASHER, PLATE

92990-08600-00

$2.17

39

COLLAR

90387-08M08-00

$10.75

40

SPOUT

FN8-6269B-00-00

$22.49

41

NUT

EU0-61652-00-00

$11.48

42

CLIP

90600-91755-00

$5.91
