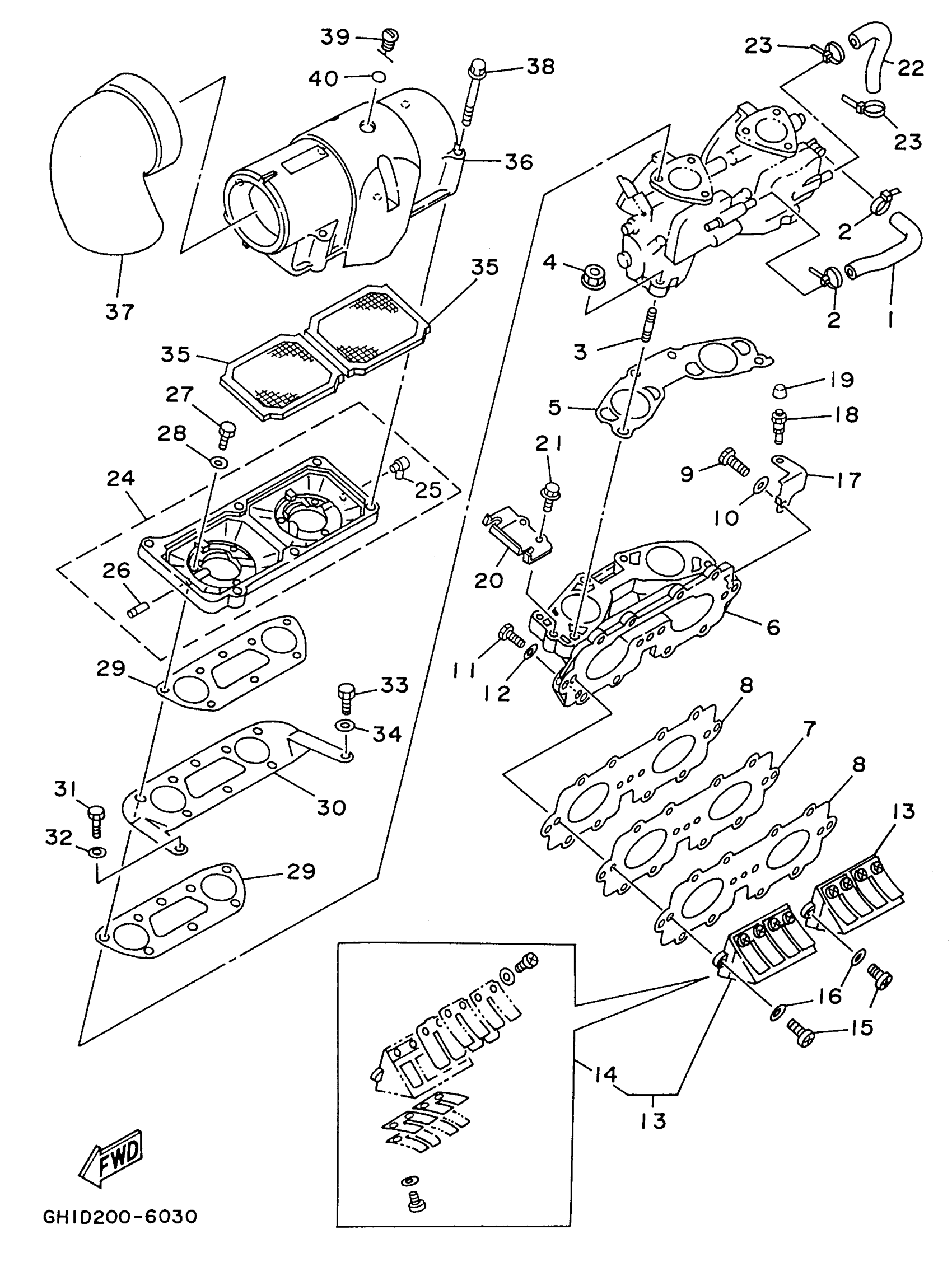

Yamaha WVT700U (WAVE VENTURE 700) 1996 INTAKE Diagram
#
1
PIPE 3
62T-24313-01-00
Unavailable
2
CLAMP
90465-10098-00
Unavailable
3
BOLT,STUD
90116-08M55-00
Unavailable
4
NUT
90179-08M15-00
Unavailable
5
. GASKET, MANIFOLD
62T-13556-00-00
Unavailable
6
MANIFOLD, INTAKE
62T-13555-00-00
Unavailable
7
. PLATE,REED VALVE
62T-13624-00-00
Unavailable
8
. GASKET
62T-13566-00-00
Unavailable
9
BOLT(3RV)
97014-06035-00
$2.75
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
BOLT(62Y)
97013-06025-00
$1.06
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
REED VALVE ASSY
62T-13610-00-00
Unavailable
14
. REED SET
62T-W0004-00-00
Unavailable
15
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
16
WASHER, PLAIN (646)
92990-05600-00
Unavailable
17
PLATE
62T-14243-01-00
Unavailable
18
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
19
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
20
PLATE
62T-14527-01-00
Unavailable
21
BOLT, WITH WASHER (97513-06516-00)
97514-06516-00
Unavailable
22
PIPE 4
62T-24314-01-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
COVER, CARBURETOR 2
62T-14284-01-8S
Unavailable
25
NIPPLE, HOSE
6E5-11372-01-00
Unavailable
26
. PIPE, JOINT
6H1-14485-00-00
Unavailable
27
BOLT(62Y)
97013-06020-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
$2.80
29
. GASKET, AIR COOLER COVER 1
62T-13674-00-00
Unavailable
30
PLATE
62T-14255-00-00
Unavailable
31
BOLT (661)
97013-06012-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
$2.80
33
BOLT
90109-06M66-00
Unavailable
34
WASHER, PLATE
90201-06M31-00
Unavailable
35
ELEMENT, AIR CLEANER
62T-14451-00-00
Unavailable
36
COVER, CARBURETOR 1
62T-14283-01-00
Unavailable
37
PIPE
62T-14419-00-00
Unavailable
38
BOLT, WITH WASHER
90119-05M02-00
Unavailable
39
GROMMET
62T-14435-00-00
Unavailable
40
. O-RING
93210-13M63-00
Unavailable
