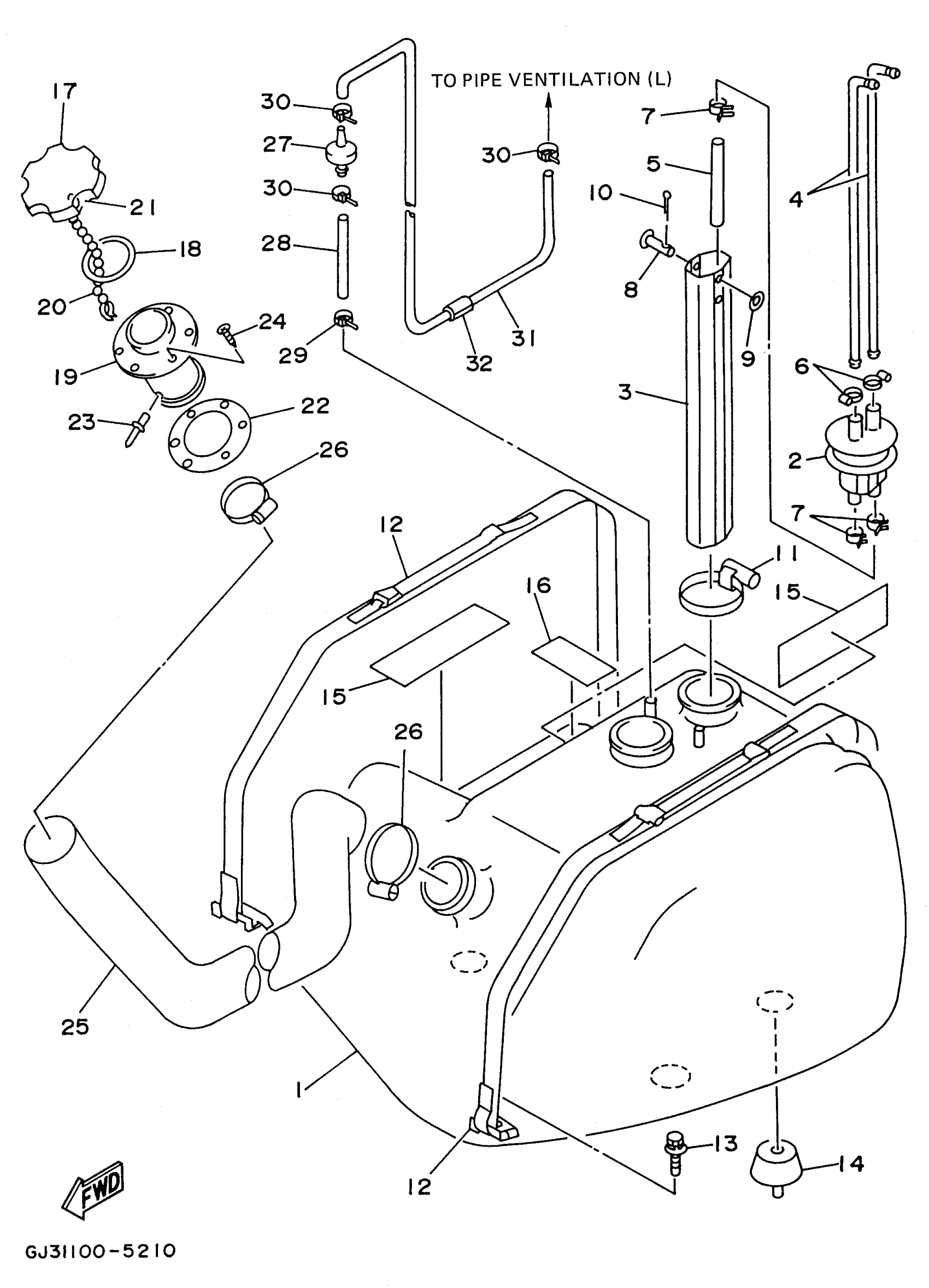

Yamaha WVT700U (WAVE VENTURE 700) 1996 FUEL TANK Diagram
#
1
TANK, FUEL
GJ1-U7711-00-00
Unavailable
2
PIPE, JOINT
FJ0-67713-01-00
Unavailable
3
SLEEVE 1
FJ0-67716-01-00
Unavailable
4
PIPE, SUCTION 3
FJ0-67714-02-00
Unavailable
5
HOSE (L198)
90445-11293-00
$9.49
6
BAND, HOSE 11
90601-11062-00
Unavailable
7
CLIP (7K7)
90467-11044-00
$8.49
8
PIN (FJ0)
91790-05040-00
$7.49
9
WASHER, PLAIN (646)
92990-05600-00
$0.80
10
PIN. COTTER
91490-16010-00
Unavailable
11
BAND, HOSE 62
90601-162U5-00
Unavailable
12
BELT, TANK 1
GJ3-67743-01-00
Unavailable
13
BOLT, WITH WASHER
90119-08800-00
Unavailable
14
DAMPER,FUEL TANK
GH1-6782B-01-00
Unavailable
15
MAT 1
GJ1-6759B-00-00
Unavailable
16
MAT 2
GJ1-6759C-00-00
Unavailable
17
CAP, FUEL FILLER (YAMAHA BLACK)
FN8-67831-01-00
Unavailable
18
PACKING 1
EU0-67832-00-00
Unavailable
19
SOCKET
FN8-67833-00-00
Unavailable
20
. CHAIN BALL
EU0-67835-00-00
Unavailable
21
COUPLING
EU0-67839-00-00
Unavailable
22
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
23
. RIVET, BLIND
90267-40935-00
Unavailable
24
SCREW, FLAT HEAD TAPPING
FX1-67869-00-00
Unavailable
25
HOSE
GJ3-U7844-00-00
Unavailable
26
BAND, HOSE 55
90601-155U4-00
Unavailable
27
CHECK VALVE
EU0-67767-31-00
Unavailable
28
HOSE
90699-50100-00
Unavailable
29
CLAMP
90465-10098-00
Unavailable
30
CLAMP
90465-10098-00
Unavailable
31
HOSE, AIRVENT 3
GA7-6785H-00-00
Unavailable
32
PACKING, HOSE 2
GJ1-67578-00-00
Unavailable
