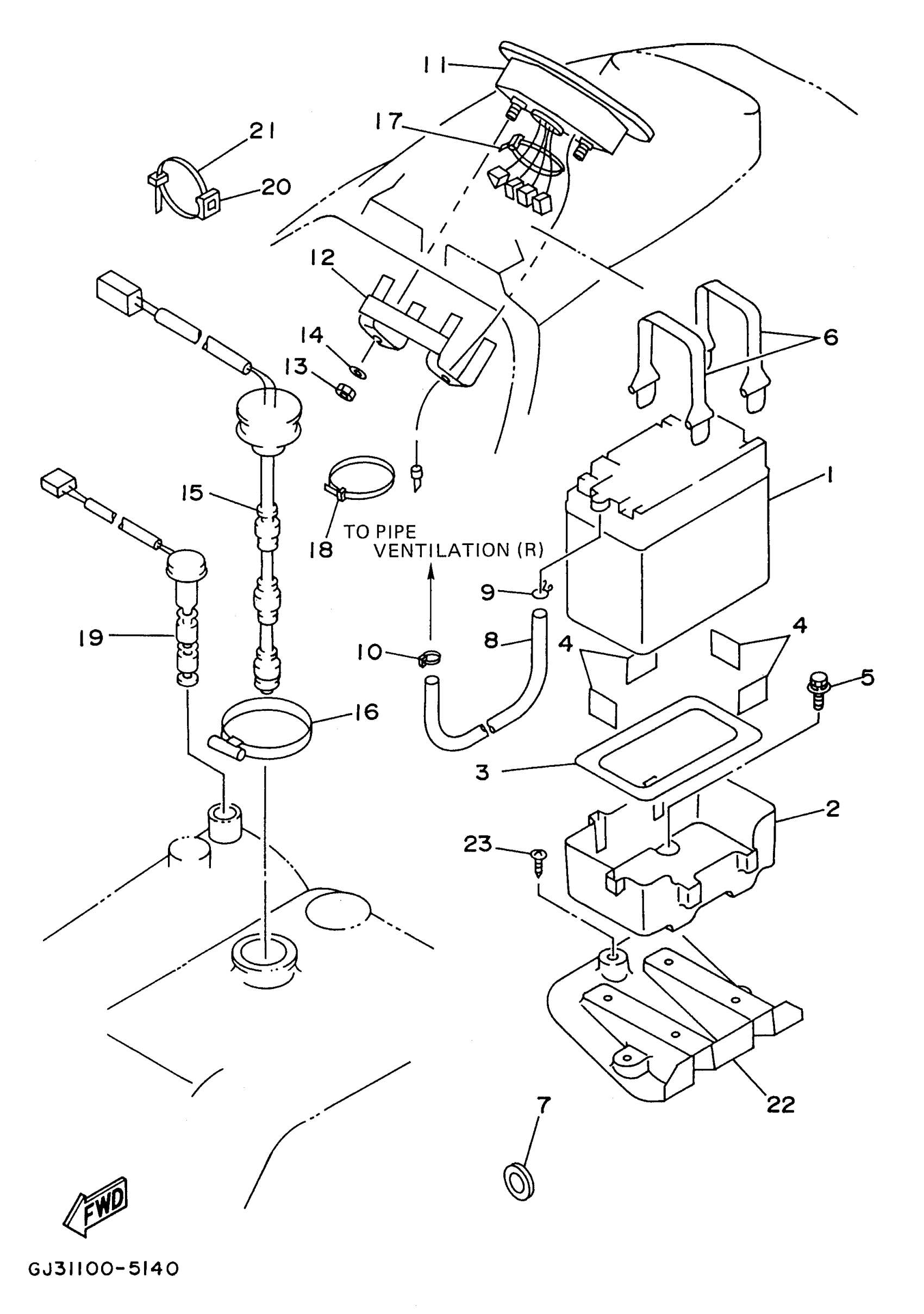

Yamaha WVT700U (WAVE VENTURE 700) 1996 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

2

CASE, BATTERY

EW2-68211-00-00

Unavailable

3

PAD, BATTERY

F1S-U8221-00-00

Unavailable

4

PAD, BATTERY

EU0-U8221-31-00

$2.99

5

BOLT WITH WASHER (EW2)

90119-06920-00

$7.49

6

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

7

GROMMET

FJ0-68222-01-00

Unavailable

8

HOSE

90699-50100-00

Unavailable

9

CLIP

90467-08M10-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

METER ASSEMBLY

GH3-6820A-40-00

Unavailable

12

BRACKET, METER

GJ1-68238-00-00

Unavailable

13

NUT, FLANGE

95720-05300-00

Unavailable

14

. WASHER, PLAIN

92990-05200-00

Unavailable

15

SENDER, FUEL

GJ1-6824B-00-00

Unavailable

16

BAND, HOSE 62

90601-162U5-00

Unavailable

17

BAND (EU0)

90601-20009-00

Unavailable

18

BAND

90601-20008-00

Unavailable

19

SENDER, OIL

GJ1-6824C-01-00

Unavailable

20

BASE, CLAMP (FA8A)

90600-90004-00

Unavailable

21

BAND

90601-200U1-00

Unavailable

22

BATTERY CASE BASE ASSEMBLY COMP

GJ3-U821C-00-00

Unavailable

23

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable
