1995 Yamaha Wave Venture (WVT700T) Fuel Diagram

← All diagrams

Find the part on the Fuel diagram for your 1995 Yamaha Wave Venture (WVT700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

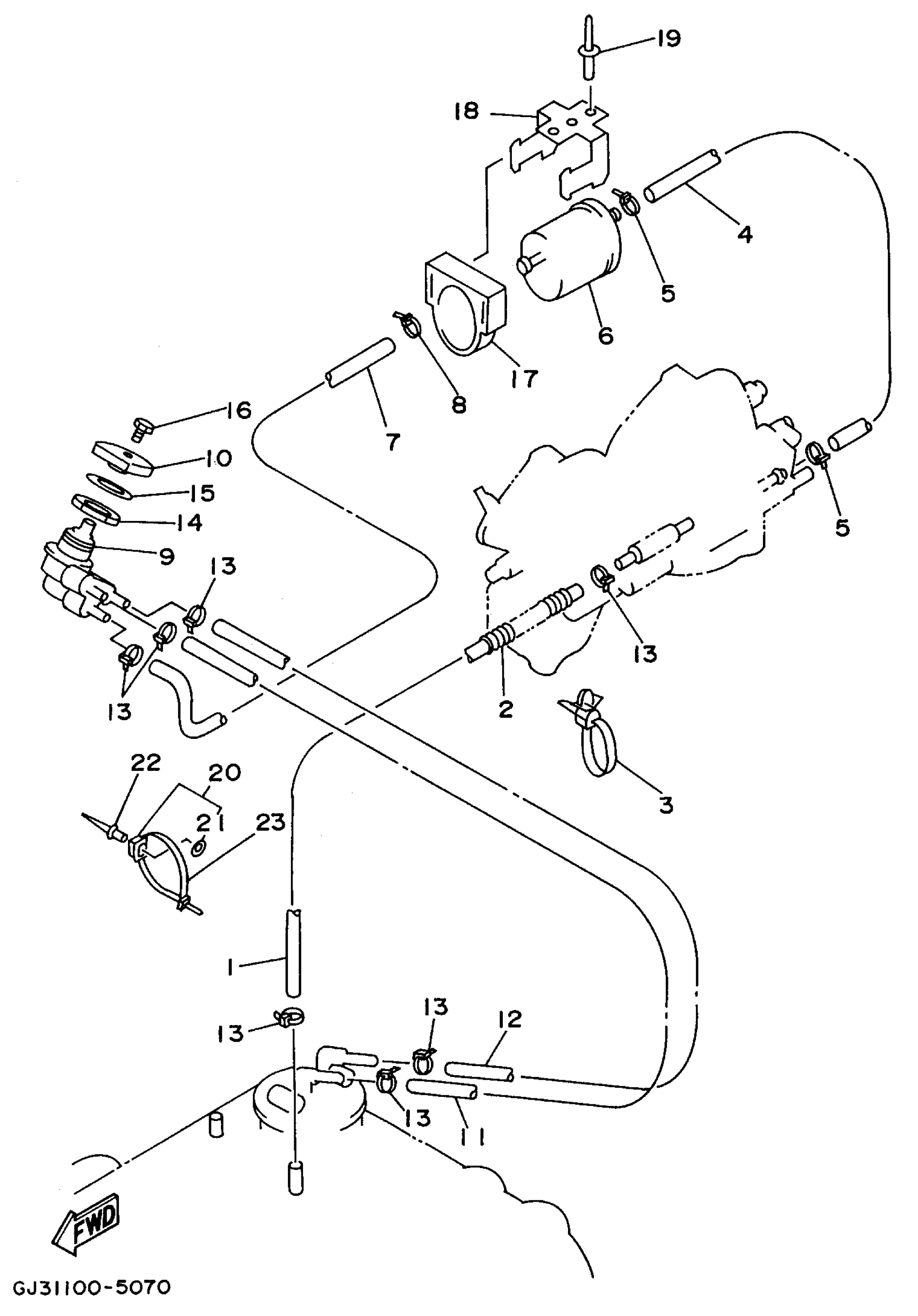

1995 Yamaha Wave Venture (WVT700T) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

90445-10M58-00

1
Out of stock

2

HOSE(6TC)

90446-14M51-00

1
Out of stock

3

CLAMP(62T)

90465-12M56-00

1
Out of stock

4

HOSE (L1040)

90445-10MA9-00

1
Out of stock

5

CLAMP

90465-10098-00

1
Out of stock

6

FILTER ASSY

6K8-24560-21-00

1
Out of stock

7

HOSE (L1700)

90445-10M87-00

1
Out of stock

8

CLAMP

90465-10098-00

1
Out of stock

9

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

10

LEVER, COCK

6R7-24524-00-00

1
Out of stock

11

HOSE (L400)

90445-10M43-00

1
Out of stock

12

HOSE (L400)

90445-10M43-00

1
Out of stock

13

CLAMP

90465-10098-00

1
Out of stock

14

NUT, HEXAGON (1E6)

90170-22187-00

1
Out of stock

15

WASHER, PLATE

90202-229U1-00

1
Out of stock

16

SCREW, BIND

98980-04008-00

1
Out of stock

17

HOLDER

EU0-67817-00-00

1
Out of stock

18

BRACKET, FUEL FILTER

FN8-67816-00-00

1
Out of stock

19

RIVET (EU0)

90267-48938-00

1
Out of stock

20

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

21

. WASHER, PLAIN

90201-05925-00

1
Out of stock

22

RIVET, BLIND

90267-48802-00

1
Out of stock

23

BAND (EU0)

90601-20009-00

1
Out of stock
