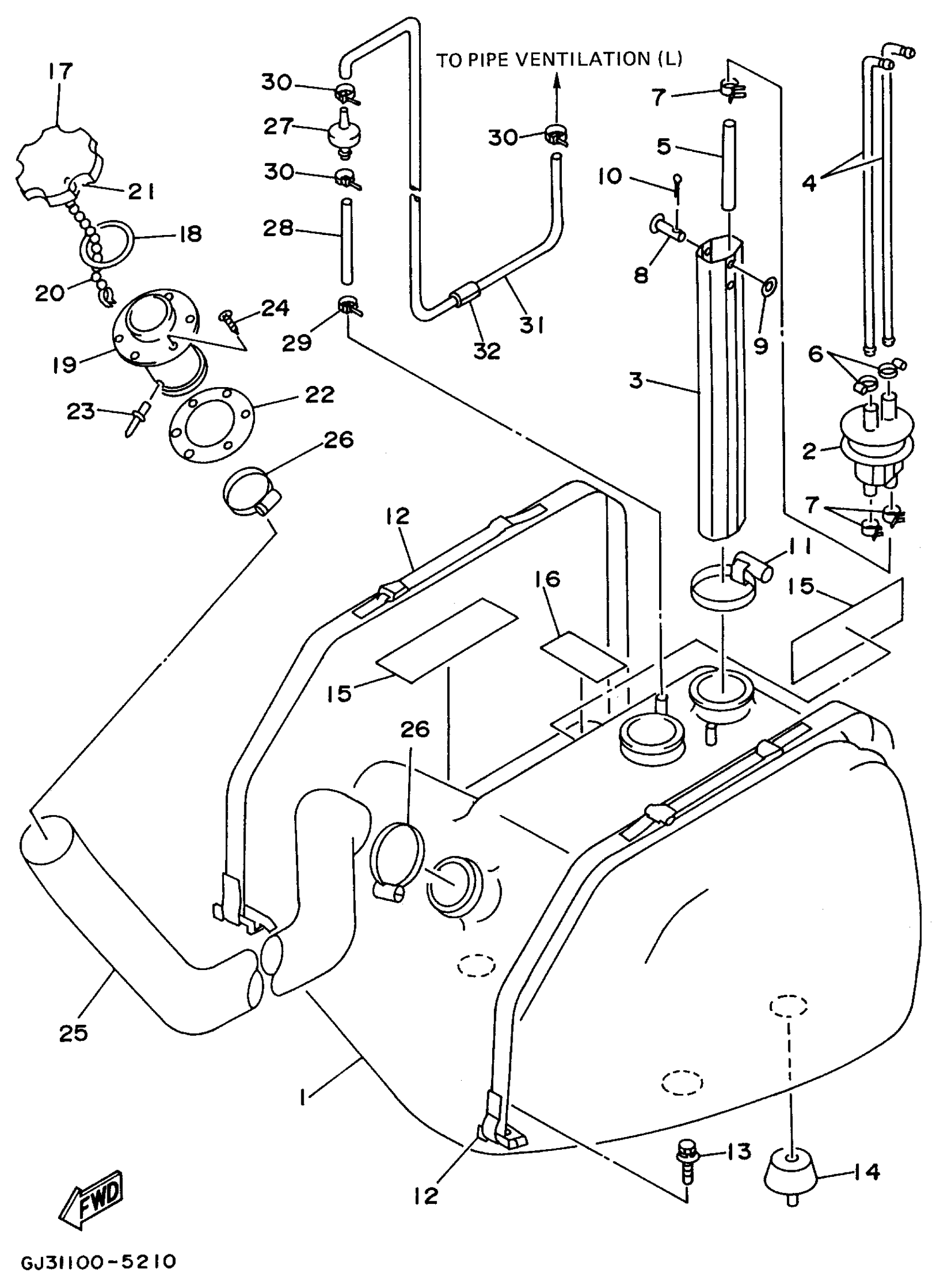

Yamaha WVT700T (WAVE VENTURE) 1995 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

GJ1-U7711-00-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

SLEEVE 1

FJ0-67716-01-00

$22.71

4

PIPE, SUCTION 3

FJ0-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.53

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.36

11

BAND, HOSE 62

90601-162U5-00

$6.17

12

BELT, TANK 1

GJ3-67743-01-00

Unavailable

13

BOLT, WITH WASHER

90119-08903-00

Unavailable

14

DAMPER,FUEL TANK

GH1-6782B-01-00

Unavailable

15

MAT 1

GJ1-6759B-00-00

$20.99

16

MAT 2

GJ1-6759C-00-00

$20.99

17

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

18

PACKING 1

EU0-67832-00-00

$7.40

19

SOCKET

FN8-67833-00-00

Unavailable

20

. CHAIN BALL

EU0-67835-00-00

$5.18

21

COUPLING

EU0-67839-00-00

$6.36

22

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

23

. RIVET, BLIND

90267-40935-00

$1.28

24

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.36

25

HOSE

GJ3-U7844-00-00

Unavailable

26

BAND, HOSE 55

90601-155U4-00

$5.87

27

CHECK VALVE

EU0-67767-31-00

$20.93

28

HOSE

90699-50100-00

$26.99

29

CLAMP

90465-10098-00

$1.68

30

CLAMP

90465-10098-00

$1.68

31

HOSE, AIRVENT 3

GA7-6785H-00-00

Unavailable

32

PACKING, HOSE 2

GJ1-67578-00-00

Unavailable
