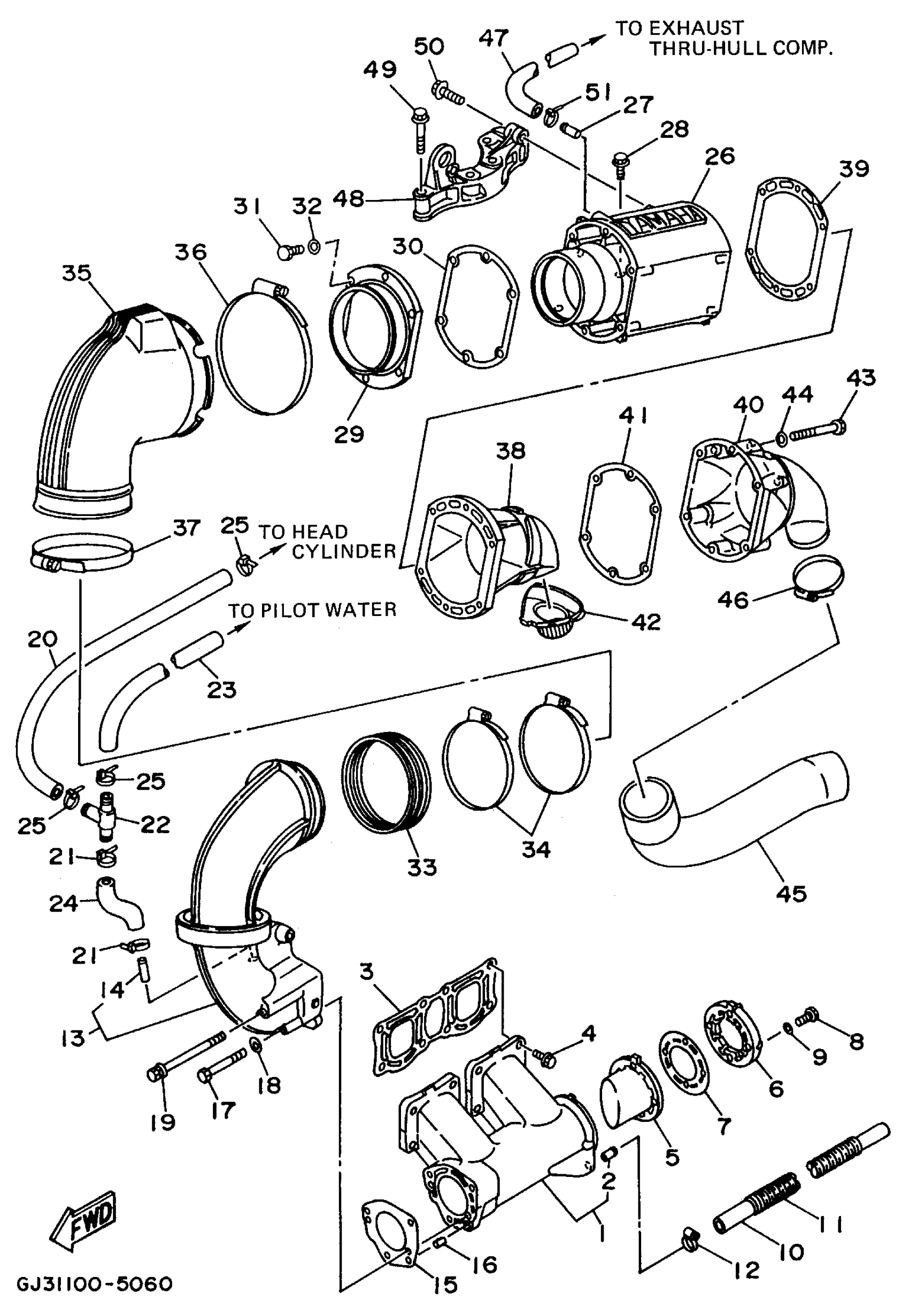

Yamaha WVT700T (WAVE VENTURE) 1995 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

62T-14711-10-94

$489.38

2

. NIPPLE

6K8-51129-00-00

$9.62

3

GASKET, EXHAUST PIPE

62T-14613-01-00

$27.26

4

BOLT, FLANGE

90105-10M60-00

$5.92

5

INNER COVER, EXHAUST

62T-41111-00-8S

$32.99

6

PROTECTOR, MUFFLER 1

62T-14718-00-8S

Unavailable

7

. GASKET, MUFFLER DAMPER 1

62T-14739-00-00

$21.95

8

BOLT(JF7)

97080-06030-00

$3.42

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

HOSE (L380)

90445-14M25-00

$18.17

11

HOSE(61L)

90446-20M31-00

$6.08

12

HOSE CLAMP ASSY(62T)

90450-14M05-00

$14.92

13

RING, JOINT

62T-14712-00-9M

$521.20

14

. NIPPLE

6K8-51129-00-00

$9.62

15

GASKET, MUFFLER DAMPER 2

62T-14749-02-00

$18.52

16

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

17

BOLT (6K8)

97013-08075-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

$2.17

19

BOLT, WITH WASHER

90119-08M11-00

$2.73

20

HOSE (L380)

90445-14M25-00

$18.17

21

CLAMP

90465-10098-00

$1.68

22

PIPE, JOINT 4

62T-24378-00-00

Unavailable

23

HOSE (L1300)

90445-14M22-00

Unavailable

24

HOSE

90445-14M11-00

Unavailable

25

CLAMP

90465-10098-00

$1.68

26

MUFFLER 2

62T-14721-00-8S

$374.23

27

PIPE, JOINT

62T-14485-10-00

$33.99

28

BOLT, FLANGE

90105-10M60-00

$5.92

29

OUTER COVER, EXHAUST

62T-41113-00-8S

$107.56

30

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

31

BOLT(62Y)

97013-06025-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

$1.84

33

JOINT, EXHAUST 2

62T-14625-00-00

$62.23

34

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

35

JOINT,EXHAUST L

62T-14615-09-00

Unavailable

36

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

37

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

38

INNER COVER,EXHAUST

62T-41121-00-8S

$159.08

39

. GASKET, EXHAUST INNER COVER

62T-41122-00-00

$28.52

40

OUTER COVER, EXHAUST

62T-41123-00-8S

$319.68

41

. GASKET, EXHAUST OUTER COVER

62T-41124-00-00

$8.14

42

. SEAL, RUBBER 1

62T-15761-00-00

Unavailable

43

BOLT(62J)

97013-06070-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

$1.84

45

PIPE, OUTLET

63N-14752-30-00

$168.17

46

HOSE CLAMP ASSY(62T)

90450-70M03-00

Unavailable

47

HOSE (L1390)

90445-21M00-00

Unavailable

48

STAY, MUFFLER 1

62T-14771-00-00

$92.41

49

BOLT, WITH WASHER

90119-10M72-00

$5.55

50

BOLT, WASHER BASED

90105-10M45-00

$5.45

51

BAND

90601-200U1-00

$2.77
