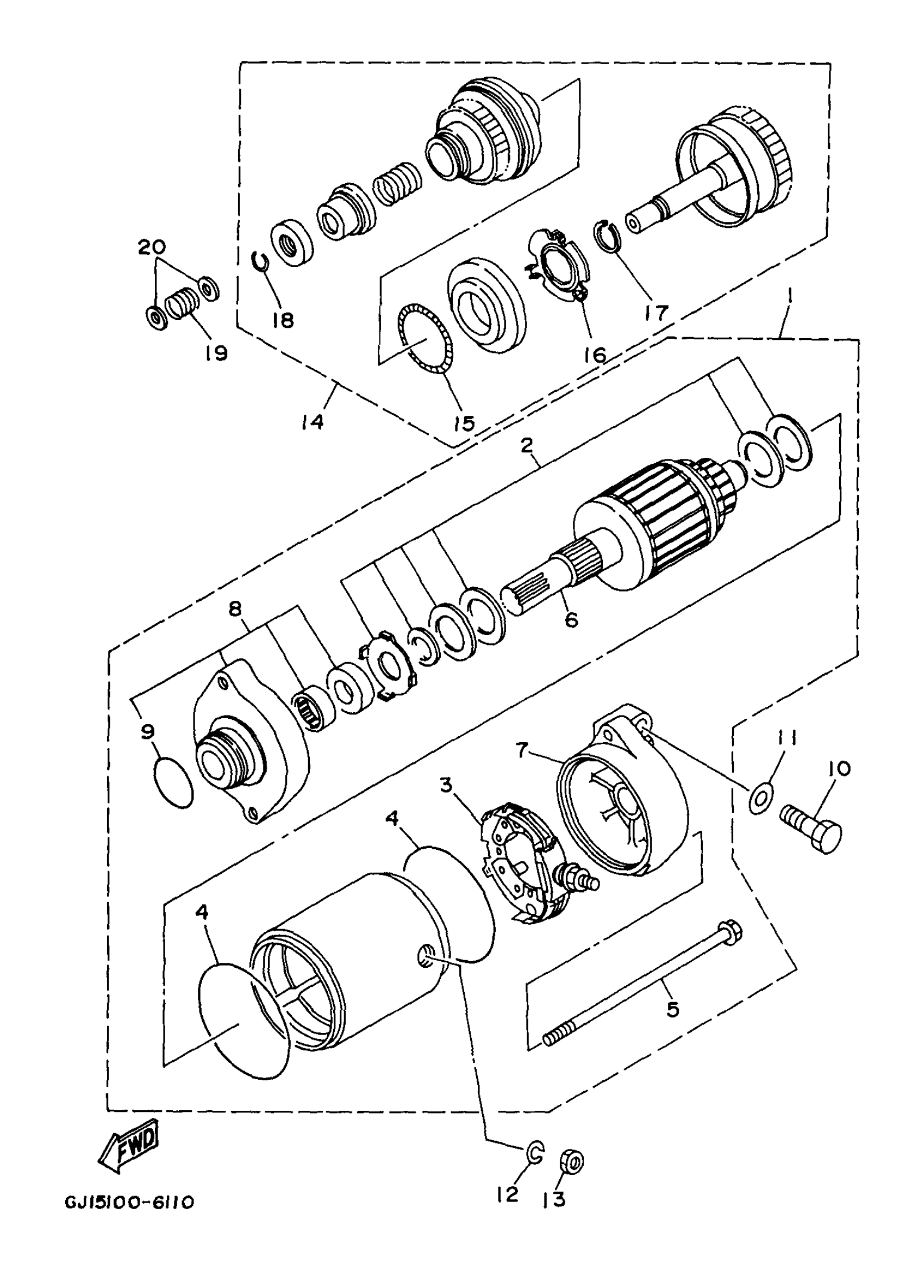

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

63M-81800-00-00

$387.16

2

WASHER KIT

3AJ-81809-00-00

Unavailable

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

$122.71

4

GASKET

35C-81844-00-00

Unavailable

5

. BOLT

6M6-81826-00-00

$8.51

6

. ARMATURE ASSY

6M6-81850-00-00

$487.86

7

. REAR BRACKET ASSEMBLY

63M-81820-00-00

Unavailable

8

. FRONT BRACKET ASSY

6M6-81830-00-00

$136.35

9

O-RING (437)

93210-24235-00

$5.34

10

BOLT (682)

97013-08025-00

$6.34

11

.. WASHER, PLATE

92990-08600-00

$2.17

12

WASHER, SPRING

92995-06100-00

$2.95

13

NUT(650)

95380-06700-00

$5.75

14

IDLE GEAR COMP.

6M6-8183E-01-00

$431.80

15

. WEIGHT SPRING

6M6-81866-00-00

$14.38

16

. WEIGHT HOLDER

6M6-81865-00-00

$10.74

17

CIRCLIP(6M6)

93440-25M08-00

Unavailable

18

CIRCLIP(6M6)

93450-18M06-00

Unavailable

19

SPRING, COMPRESSION

90501-14M73-00

$7.40

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable
