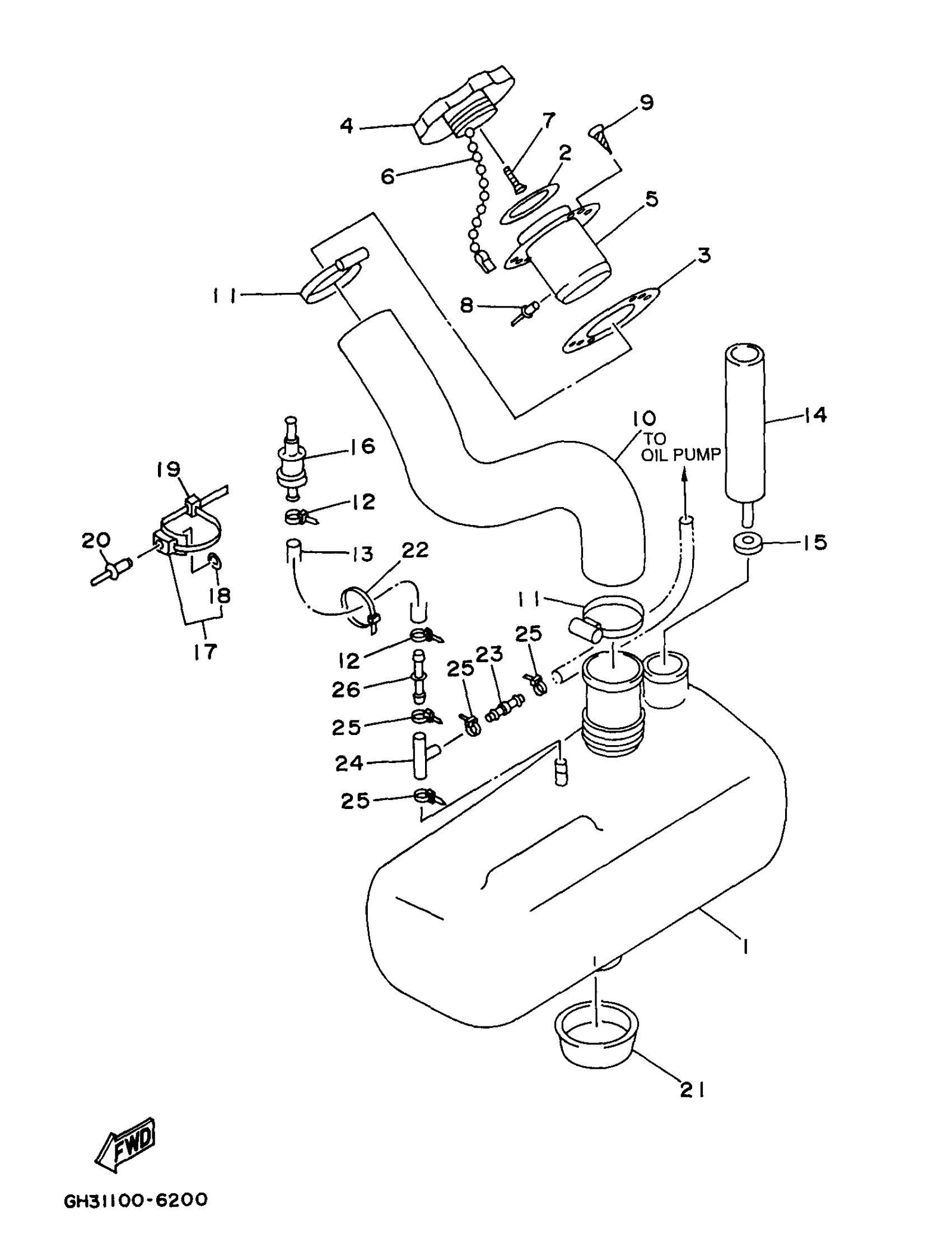

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

GJ3-U775B-02-00

Unavailable

2

PACKING, OIL CAP

GJ3-U778C-00-00

$1.72

3

PACKING, OIL FILLER

GJ3-U778E-00-00

$3.56

4

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

5

SOCKET, OIL FILLER

GJ3-U778D-00-00

$4.70

6

CHAIN BALL

EU0-U7835-00-00

$8.32

7

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

8

. RIVET, BLIND

90267-40935-00

$1.28

9

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.36

10

HOSE, OIL FILLER

GJ3-U776C-00-00

Unavailable

11

BAND, HOSE 52

90601-152U3-00

$5.67

12

CLAMP

90465-10098-00

$1.68

13

HOSE

90699-50100-00

$26.99

14

STRAINER, OIL

6J8-13411-00-00

$24.61

15

GASKET, STRAINER COVER

6J8-13414-00-00

$2.80

16

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

17

CLAMP COMP (EU0)

90600-91736-00

Unavailable

18

. WASHER, PLAIN

90201-05925-00

Unavailable

19

BAND (EU0)

90601-20009-00

$6.36

20

RIVET, BLIND

90267-48802-00

$1.98

21

MAT, 3

GH1-6759D-00-00

Unavailable

22

BAND

90601-200U2-00

$3.16

23

JOINT

63M-13132-00-00

$13.99

24

PIPE, JOINT 3

63M-24378-00-00

$5.91

25

CLAMP

90465-10098-00

$1.68

26

PIPE, JOINT 1

6G8-24376-00-00

$5.91
